Highlight:
0.6-0.8Mpa Diagnostic Reagent Filling Machine
, Air Pressure Diagnostic Reagent Filling Machine
Control System: |
PLC Bus Control, HMI |
Main Low Voltage Electric Parts: |
Schneider |
Filling Accuracy: |
≤±1~3% |
Air Pressure: |
0.6-0.8Mpa |
Filling System: |
2 Sets Of OEM Peristaltic Pumps, Dual-channel Pump Head Follow-up Filling System |
Representative Customers: |
Abbott, Innovation Scientific, Toyobo |
After-sales Service: |
Provided |
Key Functions: |
Double-station Follow-up Filling. Manipulator Automatic Cap Removal, Pre-capping And Capping Technology, Driven By Precision Cam Mechanism. Servo Technology Controls Capping Torque. Automatic Cap Sorting Unit And Soundproof Cover. Lifting Filling To Preven |

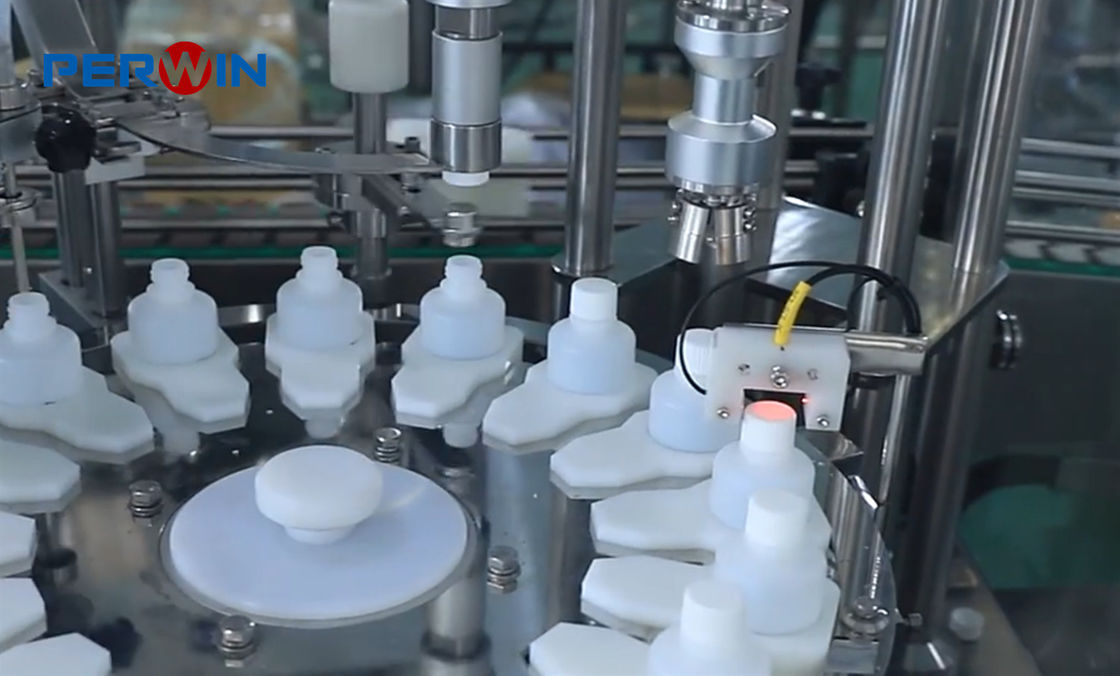

Thermal Transfer Printer Diagnostic Reagent Filling Machine
Product Description:
The Diagnostic Reagent Filling Line is specially designed for biochemistry reagent filling and capping labeling. It ensures a high degree of accuracy and reliable performance with an accuracy of ±1~3%, making it an ideal choice for filling and capping operations. It consists of a double-station follow-up filling, a manipulator automatic cap removal, a pre-capping and capping technology driven by precision cam mechanism, a servo technology to control capping torque, an automatic cap sorting unit and soundproof cover, and a lifting filling to prevent splashing. The power supply is 380V/50Hz/3Phase or 208V/60Hz/3phase while the bottle feeding method is manual. This line is equipped with two filling heads.
Features:
- Product Name: Diagnostic Reagent Filling Line
- Filling System: 2 Sets Of OEM Peristaltic Pumps, Dual-channel Pump Head Follow-up Filling System
- Rejection function for quality control: Bottle Without Filling. Bottle Without Cap. Bottle With Tilt Cap. Bottle With Loose Cap.
- PLC: Siemens 1500
- Bottle output method: Intermittent Star Wheel Positioning, Mechanical Arm Realizes Automatic Separation Of Bottle And Holder, And Bottle Holder Is Recycled On The Conveyor Belt
- Key functions: Double-station Follow-up Filling. Manipulator Automatic Cap Removal, Pre-capping And Capping Technology, Driven By Precision Cam Mechanism. Servo Technology Controls Capping Torque. Automatic Cap Sorting Unit And Soundproof Cover. Lifting Filling To Prevent Splashing.
- Reagent filling capping machine: Automatically fill and cap reagents with high accuracy.
- Biochemistry reagent filling machine: Automatically fill the biochemistry reagents with high accuracy.
Technical Parameters:
| Product Attributes | Specification |
|---|
| Labeling machine | The angle of the labeling head can be adjusted. The conveying mechanism is designed with accessories for positioning the bottle. Automatic rolling label mechanism. Shoulder label automatic pressing mechanism. |
| Filling System | 2 sets of OEM peristaltic pumps, dual-channel pump head follow-up filling system |
| Warranty | 1 year |
| Working flow | Filling + Capping +Labeling + Printing |
| Bottle holder | Noise reduction design. 2 bottles for one holder. |
| Key functions | Double-station follow-up filling. Manipulator automatic cap removal, pre-capping and capping technology, driven by precision cam mechanism. Servo technology controls capping torque. Automatic cap sorting unit and soundproof cover. Lifting filling to prevent splashing. |
| Filling Accuracy | ≤±1~3% |
| Liquid supply level control | Controlled by the host PLC. Peristaltic pump and weighing module, etc. |
| Representative customers | Abbott, Innovation Scientific, Toyobo |
| After-sales Service | Provided |
Applications:
PERWIN PW-JYGX211 Reagent Filling Capping Labeling Line is designed for the precise and efficient filling of biochemistry reagents, and is certified with CE, ISO, GMP, UL, TUV, and SGS. This reagent filling capping machine is equipped with dual-channel pump head follow-up filling system and PLC bus control for the precise filling process. The main motor is ABB and the safety is ensured by SS304 frame with tempered glass doors. The liquid supply level control is controlled by the host PLC. Peristaltic pump and weighing module are also available. The minimum order quantity is 1, and the price is negotiable. The packaging is export standard wooden cases, and the delivery time is 60 working days. The payment terms are TT and the supply ability is 10pcs/month.
The PERWIN PW-JYGX211 Reagent Filler Capper is ideal for the filling and capping of biochemistry reagents like enzyme, proteins, antibodies, vaccines and drugs. The reagent filling capping machine is suitable for small and medium-sized laboratories, pharmaceutical factories, medical device factories, biochemistry reagent manufacturers, etc. The PERWIN PW-JYGX211 Reagent Filling Capping Labeling Line is highly automated and efficient, and is able to complete the entire filling, capping, and labeling process quickly and with accuracy.
Customization:
Diagnostic Reagent Filling Line
Brand Name: PERWIN
Model Number: PW-JYGX211
Place of Origin: Qidong, Jiangsu
Certification: CE, ISO, GMP, UL, TUV, SGS
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
Key functions
Double-station Follow-up Filling. Manipulator Automatic Cap Removal, Pre-capping And Capping Technology, Driven By Precision Cam Mechanism. Servo Technology Controls Capping Torque. Automatic Cap Sorting Unit And Soundproof Cover. Lifting Filling To Prevent Splashing.
Filling Speed: 25~40 Bottles/min
Filling Heads: 2
Main motor: ABB
Main low voltage electric parts: Schneider
Biochemistry reagent filling capping labeling line
Our Diagnostic Reagent Filling Line is specially designed for biochemistry reagent filling, capping and labeling. With superior performance, it is ideal for all kinds of biochemistry reagent filling.
Biochemistry reagent filling machine
Our Diagnostic Reagent Filling Line is also known as biochemistry reagent filling machine. It is featured with double-station follow-up filling, manipulator automatic cap removal, pre-capping and capping technology, driven by precision cam mechanism and servo technology controls capping torque.
Diagnostic reagent filling machine
Our Diagnostic Reagent Filling Line, or diagnostic reagent filling machine, is equipped with automatic cap sorting unit and soundproof cover to ensure a quiet working environment. It also has lifting filling to prevent splashing. With high filling speed, it can reach 25~40 bottles/min.
Support and Services:
Diagnostic Reagent Filling Line Technical Support and Service
We are committed to providing our customers with quality technical support and service for our Diagnostic Reagent Filling Line products. Our technical support and service team is available 24/7 to assist with any questions or issues you may have.
We offer a range of services to meet your needs, including:
- Installation and setup assistance
- Remote diagnostics
- Troubleshooting and repair
- Maintenance and optimization
- User training and support
Our team of experienced technicians are available to answer your questions and provide the assistance you need to ensure your Diagnostic Reagent Filling Line products are running optimally.
If you have any questions or require assistance with any of our Diagnostic Reagent Filling Line products, please do not hesitate to contact us.
FAQ:
- Q: What is the brand name of the Diagnostic Reagent Filling Line?
- A: The brand name of the Diagnostic Reagent Filling Line is PERWIN.
- Q: What is the model number of the Diagnostic Reagent Filling Line?
- A: The model number of the Diagnostic Reagent Filling Line is PW-JYGX211.
- Q: Where is the Diagnostic Reagent Filling Line manufactured?
- A: The Diagnostic Reagent Filling Line is manufactured in Qidong, Jiangsu.
- Q: What certifications does the Diagnostic Reagent Filling Line have?
- A: The Diagnostic Reagent Filling Line has CE, ISO, GMP, UL, TUV, and SGS certifications.
- Q: What is the minimum order quantity for the Diagnostic Reagent Filling Line?
- A: The minimum order quantity for the Diagnostic Reagent Filling Line is 1.
