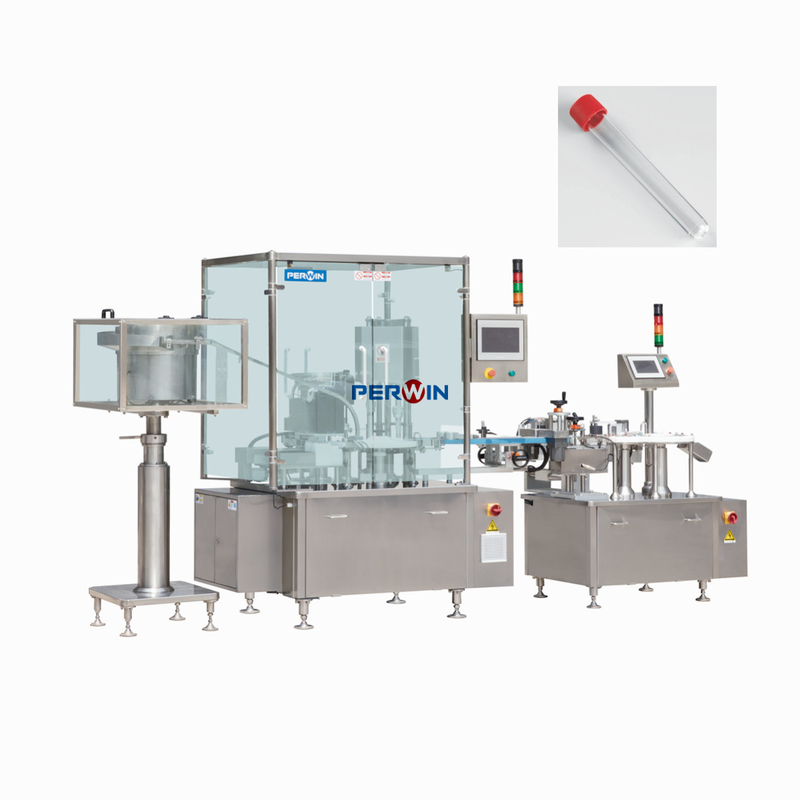

Screw Tube Vertical 3600BPH 3KW Aseptic Filling Machine
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | PERWIN |
| Certification: | CE, SGS, TUV, ISO9001 |
| Model Number: | PW-HGX211 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD58000~68000 |
| Packaging Details: | Standard export woodern cases |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5 sets/months |
|
Detail Information |
|||
| Production Name: | Automatic Bottle Filling Machine Industrial Filling Machine For Screw Tube 1ml | Filling Volume(range): | 2ml |
|---|---|---|---|
| Filling Method: | Peristaltic Pump | Filling Accuracy: | ±1~3% |
| Capacity: | 60~80 Bottles Per Minute | Power Supply: | 380V 50Hz(can Be Customized) |
| Power: | 3KW | Compressed Air: | 0.4～0.7Mpa 25～35L/min |
| High Light: | 3KW aseptic filling machine,3KW tube filling sealing machine,3600BPH aseptic filling machine |
||
Product Description
Automatic Bottle Filling Machine Industrial Filling Machine For Screw Tube 1ml
Technical features.
- This machine layout is smart and compact which also adopted humanized design in terms of operating habits.
- The operation interface is made of colorful LCD touch screen, and the whole machine system is controlled by PLC.
- Follow up filling, position filling or lifting filling methods.
- Precise CAM technology to take the cap for capping. The capping unit adopts servo technology to control the capping force. By changing the servo drive output parameters to change the rotate speed,ensures the force of the push-on cap is relatively constant. And the quantitative setting ,quantitative control are made to ensure that the cap is capped properly on the bottles.
- With the equipment operation monitoring function. The operation condition of the main parts of the machine has a dynamic display on the HMI, which makes the operation state of the machine clear at a glance, easy to operate and maintain. When the machine is in a state of alarm, in addition to the sound and light alarm, the dynamic display alarm position and cause can be displayed on the HMI.
- The whole line is made of intelligent control, the upstream and downstream stations running are with interlocking control function.
- Most parts are made of stainless steel SUS 304#, aluminum alloy material, etc. and the filling needle made of 316L material, in line with the pharmaceutical enterprises GMP requirements and other industry products packaging requirements.
- 100 purification laminar flow hood against GMP requirements (optional).
Parameters
| No. | Working flow and parameters | Automatic test tube filling line |
| 1 | Test tube sorting method. | Automatic tube unscrambler with clamping system. |
| 2 | Tube entering method. | Tube entering into a track; Linear feeder assists in entering the guide star wheel. |
| 3 | Filling method. | 2 sets of OEM peristaltic pumps, dual-channel pump head, stepper system drive, PERWIN assembly. |
| 4 | Capping method | The cam-driven mechanical arm automatically take the cap and pre-cap it, and then turns it to the next station for the second time capping. |
| 5 | Torque control. | Servo technology control, adjust the torque value. |
| 6 | Connection with labeling machine. | A set of clamping and conveying mechanism. |
| 7 | Labeling method. | Vertical positioning labeling machine, labeling accuracy is ±0.5mm. |
| 8 | Production capacity | 60~80pcs/min. |
| 9 | Printer | Zebra |
| 10 | Control method | Whole line PLC intelligent linkage, touch screen control, counting function. |
| 11 | Power | Single phase: 110V or 220V; Three phase 208V or 480V |
| 12 | Compressed air | 0.4~0.8Mpa |
