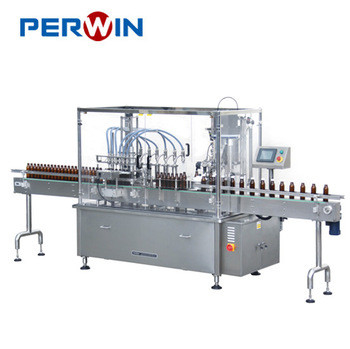

2KW Power 30ml Oral Liquid Filling Machine ISO9001 Certification

Product Details

Place of Origin: Jiangsu, China

Brand Name: PERWIN

Certification: CE, SGS, TUV, ISO9001

Model Number: PW-HGSX422

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: Standard export woodern cases

Delivery Time: 60~90 working days

Payment Terms: T/T, L/C

Supply Ability: 5 sets/months

Get Best Price
Contact Now
Specifications
Highlight:

liquid filling capping machine

,

bottle filling production line

Production Name:
Automatic Oral Syrup Liquid Filling And Capping Machine With CE Certify
Filling Volume(range):
30ml
Filling Method:
Ceramic Pump
Filling Accuracy:
±1%
Capacity:
80 Bottles Per Minute
Power Supply:
380V 50Hz(can Be Customized)
Power:
2KW
Compressed Air:
0.4~0.7Mpa 25~35L/min
Condition:
New
Production Name:
Automatic Oral Syrup Liquid Filling And Capping Machine With CE Certify
Filling Volume(range):
30ml
Filling Method:
Ceramic Pump
Filling Accuracy:
±1%
Capacity:
80 Bottles Per Minute
Power Supply:
380V 50Hz(can Be Customized)
Power:
2KW
Compressed Air:
0.4~0.7Mpa 25~35L/min
Condition:
New
Description
2KW Power 30ml Oral Liquid Filling Machine ISO9001 Certification





2KW Power 30ml Oral Liquid Filling Machine ISO9001 Certification



1. Brief introduction.

  • This filling production line was designed by our own company with automatic bottle unscrambler, air cleaning machine, ceramic pump filling, plug and cap sorting vibratory disk, automatic plugging and capping mechanism, automatic inspection screen(Optional) and labeling machine. This filling line stable running speed is 60~80 bottles/min.



2. Features :



  • Filling accuracy: down to ±1%, depending on product and dispense volumes.
  • Filling speed: 60~80 bottles per minute at 30 ml; fill speeds proportional to fill volume. Label machine: Sticker labeling machine.
  • Label machine: Sticker labeling machine.

2.1. Automatic bottle unscrambler.



The unscramble machine adopt leading design of mechanical structure and electronic, through professional and technical parameters of the actual application integration from large numbers of users, which make it perfect and stably.



Model PW-LP80
Bottle specs Depending on customers requirement
Capacity Around 80BPM(Take 30ml bottle as an example)
Voltage AC220V,50Hz(Can be customized)
Power 1.8 KW
Compressed air 0.5~0.8Mpa 35~50L/min
Weight 800 Kg
Dimension(W×D×H) 1600×800×1200 (mm)(please check the drawing)




2.2. Bottle cleaning machine with UV light tunnel.



The PET and glass bottle air cleaning machine adopt the home and abroad advanced working principle and mechanical structure as well as electrical design, to ensure dust cleaning reliable and stably.



2.3. Filling plugging capping machine.



When the bottles come to the star wheel, the machine will start filling plugging and capping process. The whole fillling system is controlled by one main drive of 4 ceramic pumps. 2 plugging heads and 2 screw capping head.



Item Model and Specification
Model PW-HGSX422
Filling Range 30ml
Filling Method Ceramic pump.
Filling Accuracy

±1%(±0.5% is for your optional)



Capacity 60~80 bottles per minute
Power Supply 380V 50Hz(can be customized)
Power

2KW

2.0Kw





Compressed Air 0.4~0.7Mpa 25~35L/min



2.4. Inspection machine.(We leave space for customer, customer will install)



When the bottles transported to the inspection area, workers will check bottles and find out defect ones through eyes with lumination light, 800 lux. Black background and white background is optiaonal.



2.5. Labeling machine.



After inspection machine, the bottles will be delivered to vertical type round bottle labeling machine, which will finish sticker labeling. (printing the batch number, production date, expiration date etc. is for your optional)
