Product Details
Place of Origin: Jiangsu China
Brand Name: PERWIN
Certification: CE SGS ISO9001 TUV
Model Number: PW-HGX210
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Export wooden cases
Delivery Time: 60~90 working days
Payment Terms: T/T, L/C
Supply Ability: 5sets/month
Production Name: |
Test Tube Aseptic Filling Machine With Vertical Positioning Labeling Line |
Filling Range: |
10ml |
Filling Method: |
Peristaltic Pump |
Filling Accuracy: |
±0.5~1% |
Capacity: |
20~30 Bottles Per Minute |
Condition: |
New |
Certificate: |
CE, SGS, TUV, ISO9001 |
Warranty: |
1 Year |
Production Name: |
Test Tube Aseptic Filling Machine With Vertical Positioning Labeling Line |
Filling Range: |
10ml |
Filling Method: |
Peristaltic Pump |
Filling Accuracy: |
±0.5~1% |
Capacity: |
20~30 Bottles Per Minute |
Condition: |
New |
Certificate: |
CE, SGS, TUV, ISO9001 |
Warranty: |
1 Year |

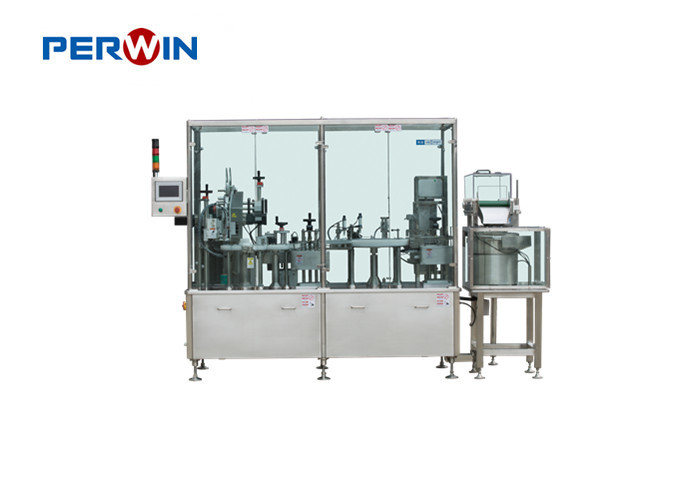

Test Tube Aseptic Filling Machine With Vertical Positioning Labeling Line
The line was designed by our own company with automatic tube unscrambler, filling and capping, labeling and automatic weighing machine. This production line stable running speed is around 20 ~30 bottles/min.
It is specially designed for 0.5~10ml tube bottles.
The features of production line
● Customers can choose peristaltic pump, plunger pump or other metering method according to their requirement.
● To avoid liquid bubbling and splashing, our filling nozzles can move up and down while working.
● The modular design makes it easier and more convenient to replace for other specifications of products.(like different shape,
volume of bottles etc.)
● The equipment mainly adopts the SUS304, Aluminum Alloy, non-toxic polymer material. Pharmaceutical grade polymer materials or 316L stainless steel are used for the filling needles. The whole production line meets GMP requirements.
The main parameters
| Metering method | Optional: plunger pump, peristaltic pump etc. |
| Package shape | Tubular bottle |
| Filling volume | According to customer’s product specification |
| Production speed | 20~50(bottles/min) |
| Compressed air | 0.4~0.8Mpa |
| Power supply | 220V, 50HZ(Can be customized) |
