Product Details
Place of Origin: Jiangsu China
Brand Name: PERWIN
Certification: CE SGS ISO9001 TUV
Model Number: PW-HGX210
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Export wooden cases
Delivery Time: 60~90 working days
Payment Terms: T/T, L/C
Supply Ability: 5sets/month
Production Name: |
PERWIN High Filling Accuracy Small Volume Liquid Aseptic Filling Machine |
Filling Range: |
0.5~10ml |
Filling Method: |
Peristaltic Pump |
Filling Accuracy: |
±0.5~1% |
Capacity: |
20~30 Bottles Per Minute |
Condition: |
New |
Certificate: |
CE, SGS, TUV, ISO9001 |
Warranty: |
1 Year |
Production Name: |
PERWIN High Filling Accuracy Small Volume Liquid Aseptic Filling Machine |
Filling Range: |
0.5~10ml |
Filling Method: |
Peristaltic Pump |
Filling Accuracy: |
±0.5~1% |
Capacity: |
20~30 Bottles Per Minute |
Condition: |
New |
Certificate: |
CE, SGS, TUV, ISO9001 |
Warranty: |
1 Year |

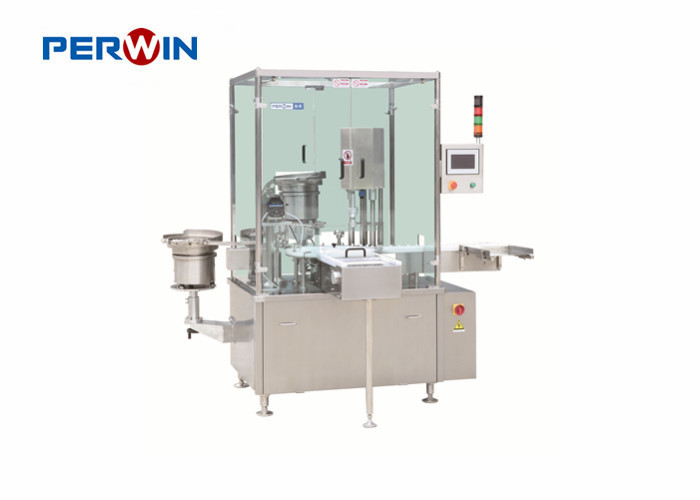

Small Volume Liquid Aseptic Filling Machine PERWIN High Accuracy
The line was designed by our own company with automatic tube unscrambler, filling and capping, labeling and automatic weighing machine. This production line stable running speed is around 20 ~30 bottles/min.
It is specially designed for 0.5~10ml tube bottles.
The features of production line
The main parameters
Metering method | Optional: plunger pump, peristaltic pump etc. |
Package shape | Tubular bottle |
Filling volume | According to customer’s product specification |
Production speed | 20~50(bottles/min) |
Compressed air | 0.4~0.8Mpa |
Power supply | 220V, 50HZ(Can be customized) |
|
Items | Brand | From |
PLC | Siemens | Germany |
Touch screen | Fuji | Japan |
VFD | Mitsubishi | Japan |
Photoelectric sensor | OMRON and SICK | Japan and Germany |
Pneumatic components | SMC | Japan |
Main motor | ABB | Swiss |
Other motors | Domestic | China |
