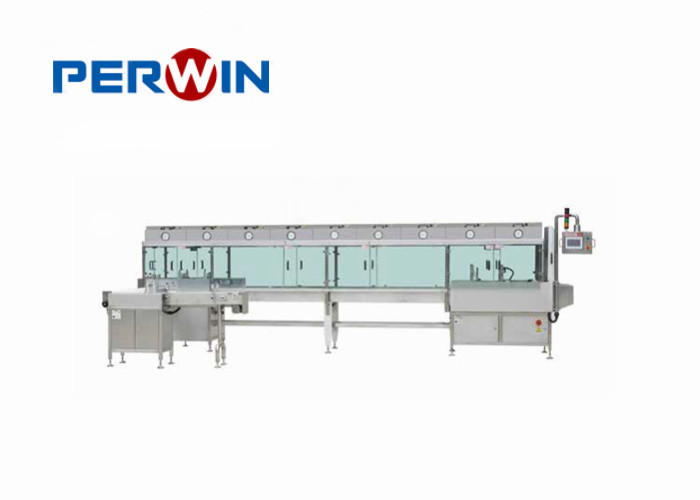

Aseptic Filling Equipment Production Line 60 70 90mm Platiculture
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | PERWIN |
| Certification: | CE, SGS, ISO9001, TUV |
| Model Number: | PW-PB4800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Export standard wooden cases |
| Delivery Time: | 60~90 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5sets/month |
|
Detail Information |
|||
| Product Name: | 60, 70, 90mm Platiculture Aseptic Automatic Filling Production Line | Petri Dish Diameters: | 60, 70, 90mm |
|---|---|---|---|
| Distribution Line Working Channel: | 6 Lanes | Dispensing Speed: | 2000 Pcs/hour |
| Dispensing Accuracy: | 3% | Petri Dish Stacking Method: | Single Lane Automatic Stacking Mechanism |
| Filling Environment: | Aseptic With FFU Or HEPA Filter | ||
| High Light: | aseptic filling equipment,culture dish filling machine |
||
Product Description
Aseptic Filling Equipment Production Line 60 70 90mm Platiculture
1. Product Application
Culture media filling machine is suitable for diameter of 60, 70, 90mm normal, contact/Rodac plates. Production speed and cooling time can be customized.
1. The operation interface is made of colorful LCD touch screen, and the whole machine system is controlled by PLC.
2. Special design to make sure separate the petri dish faster and more stable.
3. Servo follow-up filling technology to ensure liquid flowing stably and ensure no foaming.
4. Use specially designed mechanical structure and pneumatic, negative pressure technology to accurately placing the cap.
5. Using specially designed mechanical and pneumatic structures, the dried plate can be accurately dialed to the conveyor belt that uses the servo technology for feeding and printing. It is fast and reliable.
6. Single-station dish collection technology can quickly changeover for different specifications of products.
7. FFU is for your optional.
8 With the equipment operation monitoring function. The operation condition of the main parts of the machine has a dynamic display on the HMI, which makes the operation state of the machine clear at a glance, easy to operate and maintain. When the machine is in a state of alarm, in addition to the sound and light alarm, the dynamic display alarm position and cause can be displayed on the HMI.
9 The whole line is made of intelligent control, the upstream and downstream stations running are with interlocking control function.
10 Most parts are made of stainless steel SUS 304#, aluminum alloy material, etc. and the filling needle made of 316L material, in line with the pharmaceutical enterprises GMP requirements and other industry products packaging requirements.
3. Technical features
| Items | Description |
| Distribution line working channel | 6 lanes |
| Freezing time | 3~5 minutes |
| Petri dish feeding method | Petri dish rack. When you change different sizes of dish, you need change the rack. |
| Metering method | Peristaltic pump |
| Dispensing accuracy | ±1~3% |
| Working environment requirement | FFU and HEPA |
| Production capacity | 2000 pcs/hour |
| Inkjet printer | Customer prepare |
| Machine material of machine | The main body is SUS304, anodized aluminum alloy and polymer materials. The contact part with liquid is 316L stainless steel or nontoxic polymer material. |
| Voltage | 220V 50Hz(can be customized ) |
| Power | 2.5 KW |
| Compressed air | 0.4～0.8Mpa |
