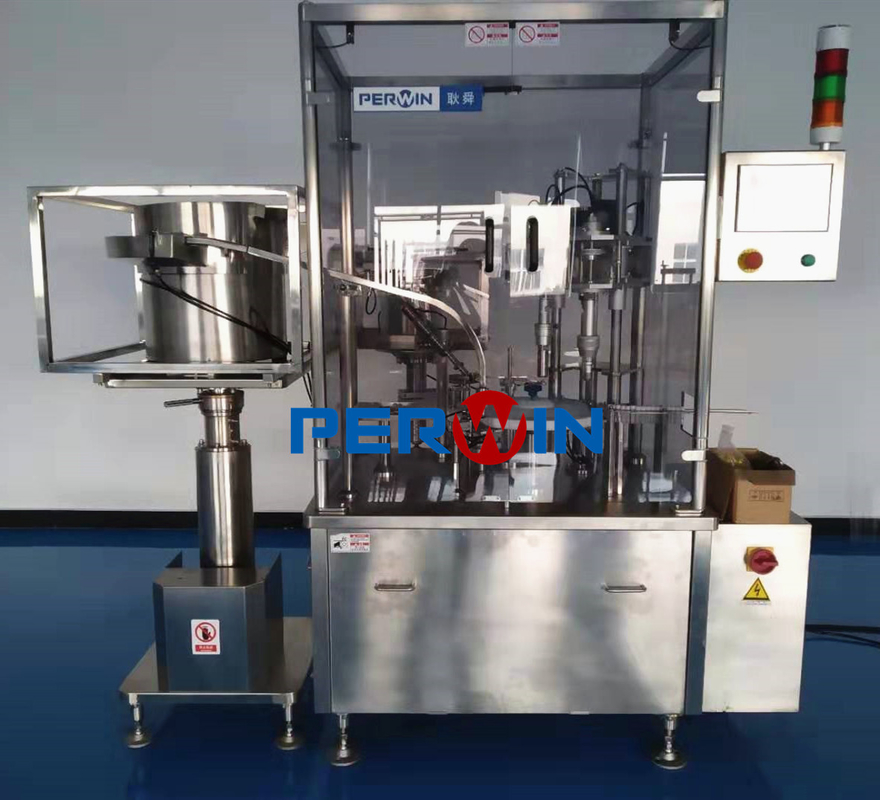

Tubular Bottle Filling And Capping Machine 10ml Test Tube Peristaltic Pump
Product Details:
| Place of Origin: | Jiangsu China |
| Brand Name: | PERWIN |
| Certification: | CE SGS ISO9001 TUV |
| Model Number: | PW-HGX210 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Export wooden cases |
| Delivery Time: | 60~90 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5sets/month |
|
Detail Information |
|||
| Production Name: | 10ml Test Tube / Tubular Bottle Automatic Filling And Capping Machine | Filling Range: | 10ml |
|---|---|---|---|
| Filling Method: | Peristaltic Pump | Filling Accuracy: | ±0.5~1% |
| Capacity: | 20~30 Bottles Per Minute | Condition: | New |
| Certificate: | CE, SGS, TUV, ISO9001 | Warranty: | 1 Year |
| High Light: | filling capping machine,vial filling and capping machine |
||
Product Description
Tubular Bottle Filling And Capping Machine 10ml Test Tube Peristaltic Pump
The features of production line
● Customers can choose peristaltic pump, plunger pump or other metering method according to their requirement.
● To avoid liquid bubbling and splashing, our filling nozzles can move up and down while working.
● The modular design makes it easier and more convenient to replace for other specifications of products.(like different shape,
volume of bottles etc.)
● The equipment mainly adopts the SUS304, Aluminum Alloy, non-toxic polymer material. Pharmaceutical grade polymer materials or 316L stainless steel are used for the filling needles. The whole production line meets GMP requirements.
The main parameters
| Metering method | Optional: plunger pump, peristaltic pump etc. |
| Package shape | Tubular bottle |
| Filling volume | According to customer’s product specification |
| Production speed | 20~50(bottles/min) |
| Compressed air | 0.4~0.8Mpa |
| Power supply | 220V, 50HZ(Can be customized) |
