Plastic Test Tube Filling And Capping Machine , Sticker Labeling Machine

Product Details

Place of Origin: Jiangsu China

Brand Name: PERWIN

Certification: CE SGS ISO9001 TUV

Model Number: PW-HGX210

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: Export wooden cases

Delivery Time: 60~90 working days

Payment Terms: T/T, L/C

Supply Ability: 5sets/month

Get Best Price
Contact Now
Specifications
Highlight:

filling capping machine

,

vial filling and capping machine

Production Name:
Plastic Test Tube Automatic Filling And Capping With Sticker Labeling Machine
Filling Range:
0.5~10ml
Filling Method:
Peristaltic Pump
Filling Accuracy:
±0.5~1%
Capacity:
20~30 Bottles Per Minute
Condition:
New
Certificate:
CE, SGS, TUV, ISO9001
Warranty:
1 Year
Production Name:
Plastic Test Tube Automatic Filling And Capping With Sticker Labeling Machine
Filling Range:
0.5~10ml
Filling Method:
Peristaltic Pump
Filling Accuracy:
±0.5~1%
Capacity:
20~30 Bottles Per Minute
Condition:
New
Certificate:
CE, SGS, TUV, ISO9001
Warranty:
1 Year
Description

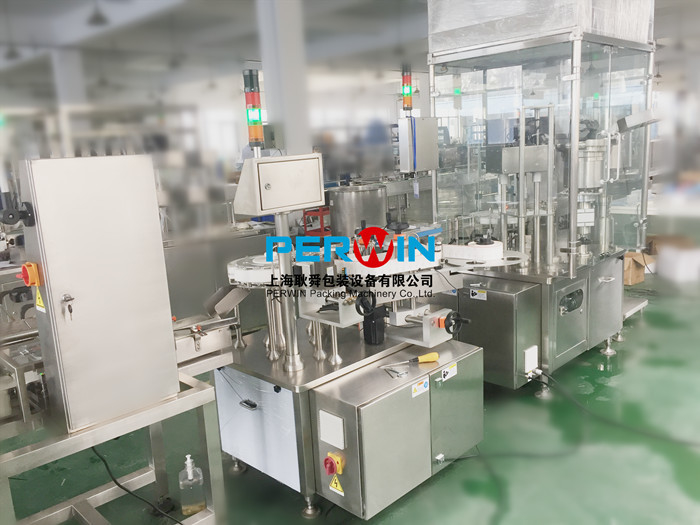

Plastic Test Tube Filling And Capping Machine , Sticker Labeling Machine





Plastic Test Tube Filling And Capping Machine , Sticker Labeling Machine





The line was designed by our own company with automatic tube unscrambler, filling and capping, labeling and  automatic weighing machine. This production line stable running speed is around 20 ~30 bottles/min.

It is specially designed for 0.5~10ml tube bottles.





The features of production line

  • This machine layout is smart and compact which also adopted humanized design in terms of operating habits.
  • The operation interface is made of colorful LCD touch screen, and the whole machine system is controlled by PLC.
  • Precise CAM technology to take the cap for capping. The capping unit adopts servo technology to control the capping force. By changing the servo drive output parameters to change the rotate speed,ensures the torque of the screw cap is relatively constant. And the quantitative setting ,quantitative control are made to ensure that the cap is screwed properly on the bottles, and the torque of the cap is reliable and stable.
  • With the equipment operation monitoring function. The operation condition of the main parts of the machine has a dynamic display on the HMI, which makes the operation state of the machine clear at a glance, easy to operate and maintain. When the machine is in a state of alarm, in addition to the sound and light alarm, the dynamic display alarm position and cause can be displayed on the HMI.
  • The whole line is made of intelligent control, the upstream and downstream stations running are with interlocking control function.
  • Most parts are made of stainless steel SUS 304#, aluminum alloy material, etc. and the filling needle made of 316L material(can be plastic if customer need), in line with the pharmaceutical enterprises GMP requirements and other industry products packaging requirements.
  • 100 purification laminar flow hood against GMP requirements (This is for your optional).



The main parameters



Metering method Optional: plunger pump, peristaltic pump etc.
Package shape Tubular bottle
Filling volume According to customer’s product specification
Production speed 20~50(bottles/min)
Compressed air 0.4~0.8Mpa
Power supply 220V, 50HZ(Can be customized)






Items Brand From
PLC Siemens Germany
Touch screen Fuji Japan
VFD Mitsubishi Japan
Photoelectric sensor OMRON and SICK Japan and Germany
Pneumatic components SMC Japan
Main motor ABB Swiss
Other motors Domestic China



Plastic Test Tube Filling And Capping Machine , Sticker Labeling Machine 0
