ISO Animal Vaccine Filling Line , Animal Vaccine Filling Production Line
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | PERWIN |
| Certification: | CE, SGS, TUV, ISO9001 |
| Model Number: | PW-GXT1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Standard export woodern cases |
| Delivery Time: | 60~90 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5 sets/months |
|
Detail Information |
|||
| Production Name: | ISO Certification Animal Vaccine Filling Production Line/Equipment | Filling Method: | Optional Pump |
|---|---|---|---|
| Filling Accuracy: | ±1% | Capacity: | 40~120 Bottles Per Minute |
| Power Supply: | 380V 50Hz(can Be Customized) | Power: | 2 KW |
| Compressed Air: | 0.4～0.6Mpa ，25～35L/min | Warranty: | 1 Year |
| Automatic Grade: | Automatic | Type: | Filling Machine |
| Certification: | CE,ISO,ISO9001,GMP | ||
| High Light: | aseptic filling equipment,vial liquid filling machine |
||
Product Description

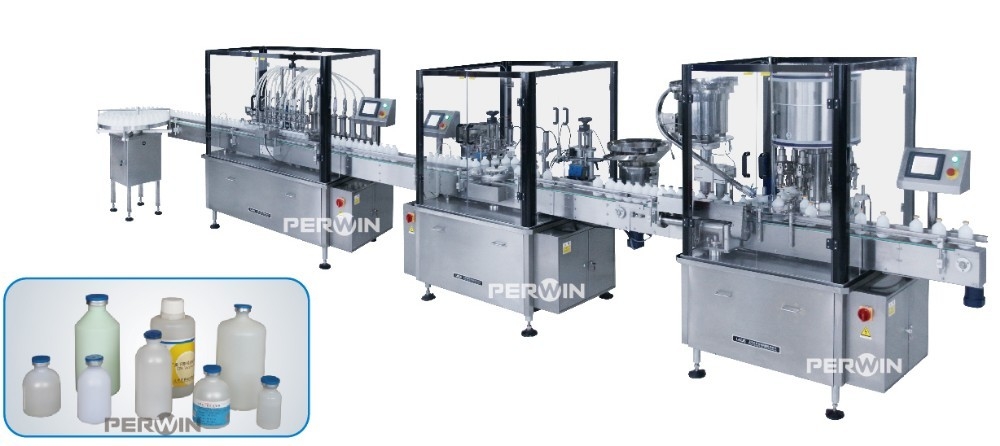

ISO Certification Animal Vaccine Filling Line , Animal Vaccine Filling Production Line
The Animal Vaccine Filling Production Line/Equipment has progressed to the third generation, since PERWIN Packing Machinery Co., Ltd. developed the first generation of such production line in 2005. It is suitable for various specifications of animal vaccine production.
The Components of Production Line:
* Customized contents of production line according to user requirements;
* Providing the cleaning in Place (CIP) and sterilization in Place (SIP) technology and products for production line, according to the user’s requirements;
Technical Features:
1. According to user’s requirements and the bottle features, the bottle feeding at the front end of the equipment can adopt different scheme.
2. Adopting ceramic plunger type cylinder or based on the user’s requirements for precision filling, the filling accuracy is ±0.5~1%.
3. The function of alarm and stop when filling needles deviate from bottle neck.
4. The unique inlet and outlet check valve and the precision machining to ensure not dropping when filling.
5. The manipulator driven by the precision cam can precisely crab the inner cork and tamponade stably and reliably without mistake.
6. The machine can accurately complete each mechanical motion cycle, such as crabbing lid, capping, and others, the whole process in unison, stably and reliably.
7. The automatic capping adopt three-blade style capping cutter, which have balance force, to keep the aluminum lid shut dense and beautiful.
8. The unique designing of bottle feeding screw overload protection mechanism can automatically stop the machine when the bottle stuck or overload occur, as it enter into the screw rod and astrolabe, to avoid damage of machine or harm of personnel.
9. Have the function of online automatic removing when no lid & no plug (Optional by customer).
10. The whole production line of intelligent control has the function of chain control for upstream and downstream working equipment.
11. The hundred grade laminar flow air filtration system can be optionally configured.
12. The surface of main parts of the whole production line is made of SUS 304 stainless steel, hardness of anodized aluminum alloy, non-toxic polymeric materials, etc. the whole production line comply with GMP requests.
Production capacity:
40~50 bottles/Min 80~120 bottles/Min.
