200g Volume Solid Air Freshener Filling Line ISO9001 Certification

Product Details

Place of Origin: Jiangsu, China

Brand Name: PERWIN

Certification: CE, SGS, TUV, ISO9001

Model Number: PW-HX

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: Standard export woodern cases

Delivery Time: 60~90 working days

Payment Terms: T/T, L/C

Supply Ability: 5 sets/months

Get Best Price
Contact Now
Specifications
Highlight:

stainless steel filling machine

,

solid air freshener filling machine

,

Volume Solid Air Freshener Filling Line

Production Name:
200g Volume Solid Solid Air Freshener Liquid Filling Machines
Filling Volume(range):
10~200g
Filling Method:
Optional Pump
Filling Accuracy:
≤1%
Capacity:
40~120 Bottles Per Minute
Power Supply:
380V 50Hz(can Be Customized)
Power:
3KW
Compressed Air:
0.4~0.8Mpa 25~35L/min
Condition:
New
Warranty:
1 Years
Production Name:
200g Volume Solid Solid Air Freshener Liquid Filling Machines
Filling Volume(range):
10~200g
Filling Method:
Optional Pump
Filling Accuracy:
≤1%
Capacity:
40~120 Bottles Per Minute
Power Supply:
380V 50Hz(can Be Customized)
Power:
3KW
Compressed Air:
0.4~0.8Mpa 25~35L/min
Condition:
New
Warranty:
1 Years
Description

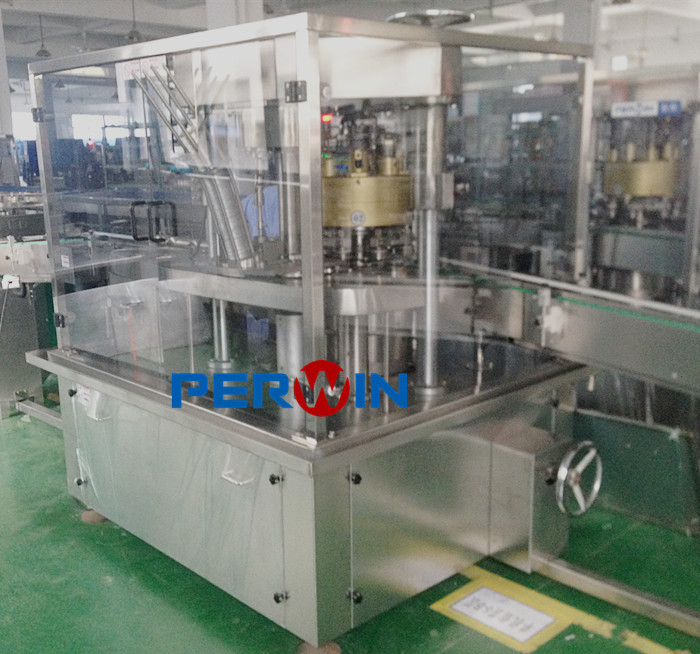

200g Volume Solid Air Freshener Filling Line ISO9001 Certification


200g Volume Solid Air Freshener Filling Line ISO9001 Certification


1. Brief introduction.

PERWIN adopts advanced design philosophy and principle of work, which has been putting into practice by numerous professional clients. The technical parameters were also improved and integrated step by step, which makes these filling production line more perfect and reliable. This production line can be applied to fill various specifications of solid air freshener products. The work process is made of filling , cooling, sealing.

2. Technical features.

2.1. Filling and capping machine

2.1.1. Features.
  • Adopts SUS316L piston pump, ceramic plunger pump, peristaltic pump or customized designated pumps for precision filling.The filling accuracy ±0.5~1%.
  • The operation interface is made of colorful LCD touch screen, and the whole machine system is controlled by PLC
  • Precise CAM technology to take the cap for capping. The capping unit adopts servo technology to control the capping force. By changing the servo drive output parameters to change the rotate speed,ensures the torque of the screw cap is relatively constant. And the quantitative setting ,quantitative control are made to ensure that the cap is screwed properly on the bottles, and the torque of the cap is reliable and stable.
  • With the equipment operation monitoring function. The operation condition of the main parts of the machine has a dynamic display on the HMI, which makes the operation state of the machine clear at a glance, easy to operate and maintain. When the machine is in a state of alarm, in addition to the sound and light alarm, the dynamic display alarm position and cause can be displayed on the HMI.
  • The whole line is made of intelligent control, the upstream and downstream stations running are with interlocking control function.
  • Most parts are made of stainless steel SUS 304#, aluminum alloy material, etc. and the filling needle made of 316L material(can be plastic if customer need), in line with the pharmaceutical enterprises GMP requirements and other industry products packaging requirements.
  • 100 purification laminar flow hood against GMP requirements (This is for your optional)
  • The production line capacity can be customized to 40~50 bottle/min, 60~120 bottles/ min according to customers's requirement.
2.1.2. Main configuration:

Items
Brand
From
PLC
Siemens
Germany
Touch screen
Fuji
Japan
VFD
Mitsubishi
Japan
Photoelectric sensor
OMRON and SICK
Japan and Germany
Pneumatic components
SMC
Japan
Main motor
ABB
Swiss
Other motors
Domestic
China
