Small Test Tube Dipslide Filling Machine

Small Test Tube Dipslide Filling Machine

Product Details:

Place of Origin: Jiangsu China
Brand Name: PERWIN
Certification: CE SGS ISO9001 TUV
Model Number: PW-HGX210

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Export wooden cases
Delivery Time: 60~90 working days
Payment Terms: T/T, L/C
Supply Ability: 5sets/month
Get Best Price Contact Now

Detail Information

Production Name: 0.5~10ml Small Test Tube Dipslide Filling Machine Aseptic Environment Filling Range: 0.5~10ml
Filling Method: Peristaltic Pump Filling Accuracy: ±0.5~1%
Capacity: 20~30 Bottles Per Minute Condition: New
Certificate: CE, SGS, TUV, ISO9001 Warranty: 1 Year
High Light:

aseptic filling equipment


dipslide filling machine

Product Description


0.5~10ml Small Test Tube Dipslide Filling Machine Aseptic Environment



The line was designed by our own company with automatic tube unscrambler, filling and capping, labeling and  automatic weighing machine. This production line stable running speed is around 20 ~30 bottles/min.

It is specially designed for 0.5~10ml tube bottles.

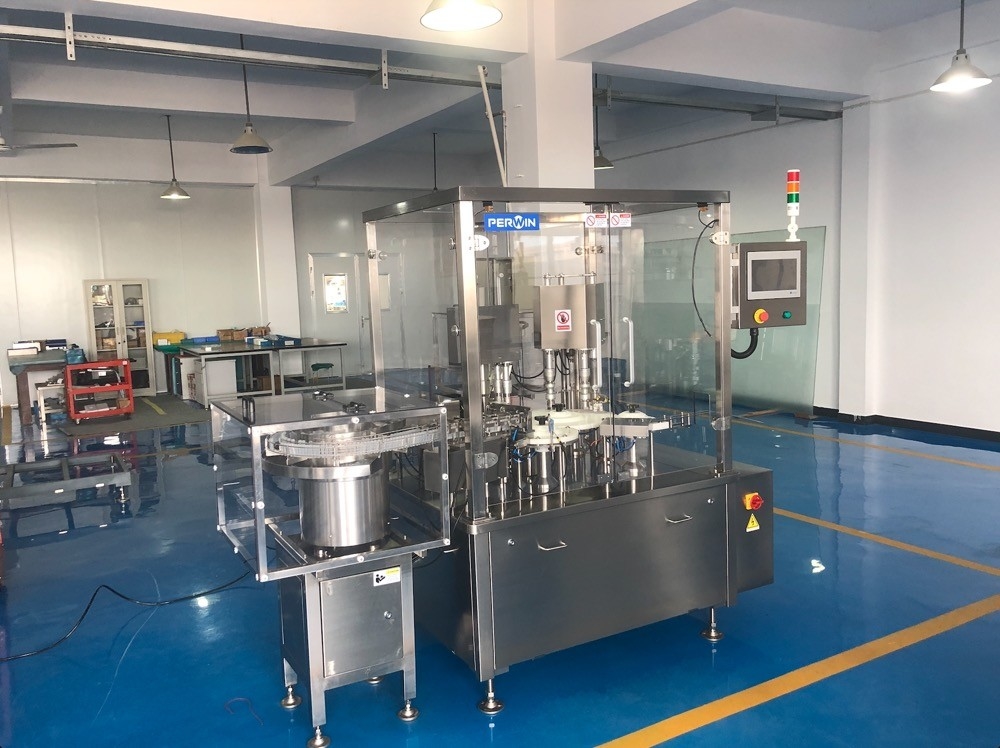

Small Test Tube Dipslide Filling Machine 0

The features of production line

  • This machine layout is smart and compact which also adopted humanized design in terms of operating habits.
  • The operation interface is made of colorful LCD touch screen, and the whole machine system is controlled by PLC.
  • Precise CAM technology to take the cap for capping. The capping unit adopts servo technology to control the capping force. By changing the servo drive output parameters to change the rotate speed,ensures the torque of the screw cap is relatively constant. And the quantitative setting ,quantitative control are made to ensure that the cap is screwed properly on the bottles, and the torque of the cap is reliable and stable.
  • With the equipment operation monitoring function. The operation condition of the main parts of the machine has a dynamic display on the HMI, which makes the operation state of the machine clear at a glance, easy to operate and maintain. When the machine is in a state of alarm, in addition to the sound and light alarm, the dynamic display alarm position and cause can be displayed on the HMI.
  • The whole line is made of intelligent control, the upstream and downstream stations running are with interlocking control function.
  • Most parts are made of stainless steel SUS 304#, aluminum alloy material, etc. and the filling needle made of 316L material(can be plastic if customer need), in line with the pharmaceutical enterprises GMP requirements and other industry products packaging requirements.
  • 100 purification laminar flow hood against GMP requirements (This is for your optional).


The main parameters


Metering method Optional: plunger pump, peristaltic pump etc.
Package shape Tubular bottle
Filling volume According to customer’s product specification
Production speed 20~50(bottles/min)
Compressed air 0.4~0.8Mpa
Power supply 220V, 50HZ(Can be customized)


 Small Test Tube Dipslide Filling Machine 1
