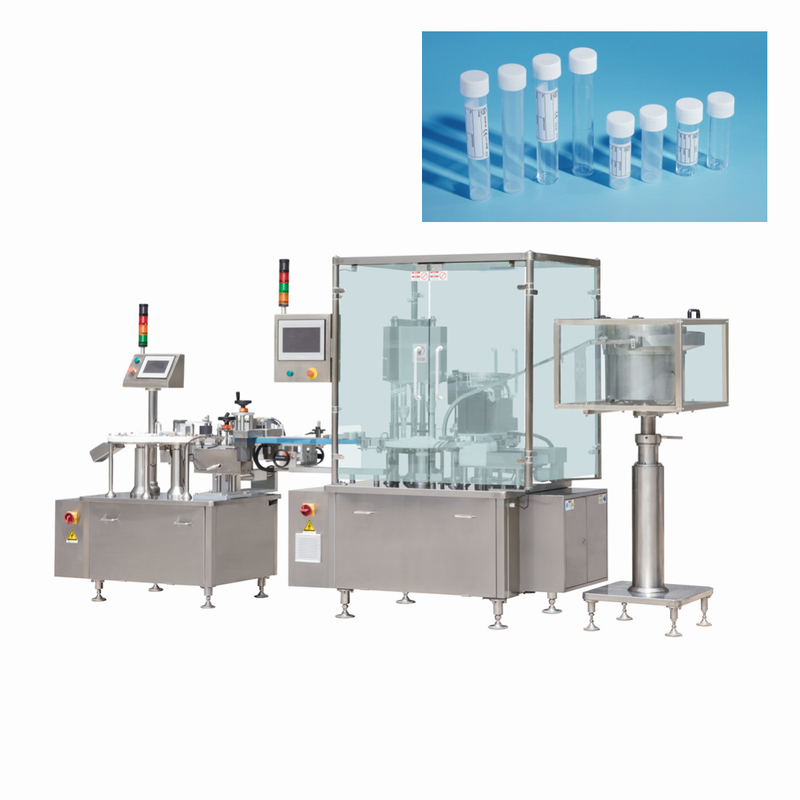

Linear Feeder 4800bph Stoppered 5cc Test Tube Filling Machine

Linear Feeder 4800bph Stoppered 5cc Test Tube Filling Machine

Product Details:

Place of Origin: Jiangsu, China
Brand Name: PERWIN
Certification: CE, SGS, TUV, ISO9001, FDA
Model Number: PW-HGX220

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard export woodern cases
Delivery Time: 30~90 working days
Payment Terms: T/T, L/C
Supply Ability: 5 sets/months
Get Best Price Contact Now

Detail Information

Name: 5 Ml Bottling Machine For Test Tube For Sale Filling Volume: 1ml~10ml
Filling Pump: Peristaltic Pump(Linear Pump) Dispensing Accuracy: ±0.5~2%
Production Speed: 60~80 Bottles Per Minute Certificate: CE, FDA, SGS, TUV, ISO9001
High Light:

5cc test tube filling machine

,

5cc vial liquid filling machine

,

Stoppered test tube filling machine

Product Description

5 ml bottling machine for test tube for sale

Brief introduction

    This filling line was designed by our own company with automatic bottle unscrambler, peristaltic pump filling, cap arranging mechanism, automatic capping mechanism, automatic weighing system(Optional) and vertical positioning labeling machine. This machine stable running speed is 60~80pcs/min. It is specially designed for 1ml~10ml test tube type vials.



5 ml bottling machine for test tube for sale Parameters

No. Working flow and parameters Automatic test tube filling line
1 Test tube sorting method. Automatic tube unscrambler with clamping system.
2 Tube entering method. Tube entering into a track; Linear feeder assists in entering the guide star wheel.
3 Filling method. 2 sets of OEM peristaltic pumps, dual-channel pump head, stepper system drive, PERWIN assembly.
4 Capping method The cam-driven mechanical arm automatically take the cap and pre-cap it, and then turns it to the next station for the second time capping.
5 Torque control. Servo technology control, adjust the torque value.
6 Connection with labeling machine. A set of clamping and conveying mechanism.
7 Labeling method. Vertical positioning labeling machine, labeling accuracy is ±0.5mm.
8 Production capacity 60~80pcs/min.
9 Printer Zebra
10 Control method Whole line PLC intelligent linkage, touch screen control, counting function.
11 Power Single phase: 110V or 220V; Three phase 208V or 480V
12 Compressed air 0.4~0.8Mpa



Main configuration:

Items Brand From
PLC Siemens Germany
Touch screen Fuji Japan
Frequency converter Mitsubishi Japan
Servo motor Panasonic Japan
Photoelectric sensor SICK Germany
Pneumatic components Festo Germany
Main low voltage electric parts Schneider France



Technical features.

  • 1. This machine layout is smart and compact which also adopted humanized design in terms of operating habits.
  • 2. The operation interface is made of colorful LCD touch screen, and the whole machine system is controlled by PLC.
  • 3. Follow up filling, position filling or lifting filling methods.
  • 4. Precise CAM technology to take the cap for capping. The capping unit adopts servo technology to control the capping force. 5. By changing the servo drive output parameters to change the rotate speed,ensures the force of the push-on cap is relatively constant. And the quantitative setting ,quantitative control are made to ensure that the cap is capped properly on the bottles.
  • 6. With the equipment operation monitoring function. The operation condition of the main parts of the machine has a dynamic display on the HMI, which makes the operation state of the machine clear at a glance, easy to operate and maintain. When the machine is in a state of alarm, in addition to the sound and light alarm, the dynamic display alarm position and cause can be displayed on the HMI.
  • 7. The whole line is made of intelligent control, the upstream and downstream stations running are with interlocking control function.
  • 8. Most parts are made of stainless steel SUS 304#, aluminum alloy material, etc. and the filling needle made of 316L material, in line with the pharmaceutical enterprises GMP requirements and other industry products packaging requirements.
  • 9. 100 purification laminar flow hood against GMP requirements (optional).FSG-003.png
  • FAQ

1. Are you trading company or manufacturer?

  • 1. We are manufacturer of 21 years experience specialized in Pharma and IVD area. We have our own R&D team, sales team, purchasing team, production team and service team located in Shanghai and Jiangsu. We have 110 employees and over 8000 square meters production area.

2. How to install the machine when customers from overseas received the machine?

  • 1. Customers install the machine through remote support from Perwin.
  • 2. Perwin send engineers to customers country.
  • 3. Perwin have overseas service engineers in USA, Europe and South Asia.
  • 4. Perwin provide manuals, trouble shootings, diagrams and drawings to customers.
