Product Details
Place of Origin: Qidong, Jiangsu
Brand Name: PERWIN
Certification: CE, ISO, GMP, UL, TUV, SGS
Model Number: PW-HGX420
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
Capping Method: |
8 Heads Rotary Capping With Magnetic Induction Mechanism Controls Cap Torque |
Filling Speed: |
35~100pcs/min |
Material: |
Stainless Steel |
Power Consumption: |
Low |
Dimension: |
Customized |
Operator: |
1~2 People |
Production Capacity: |
High |
Filling Range: |
10ml, 20ml, 30ml, 60ml, 100ml, 250ml |
Capping Method: |
8 Heads Rotary Capping With Magnetic Induction Mechanism Controls Cap Torque |
Filling Speed: |
35~100pcs/min |
Material: |
Stainless Steel |
Power Consumption: |
Low |
Dimension: |
Customized |
Operator: |
1~2 People |
Production Capacity: |
High |
Filling Range: |
10ml, 20ml, 30ml, 60ml, 100ml, 250ml |

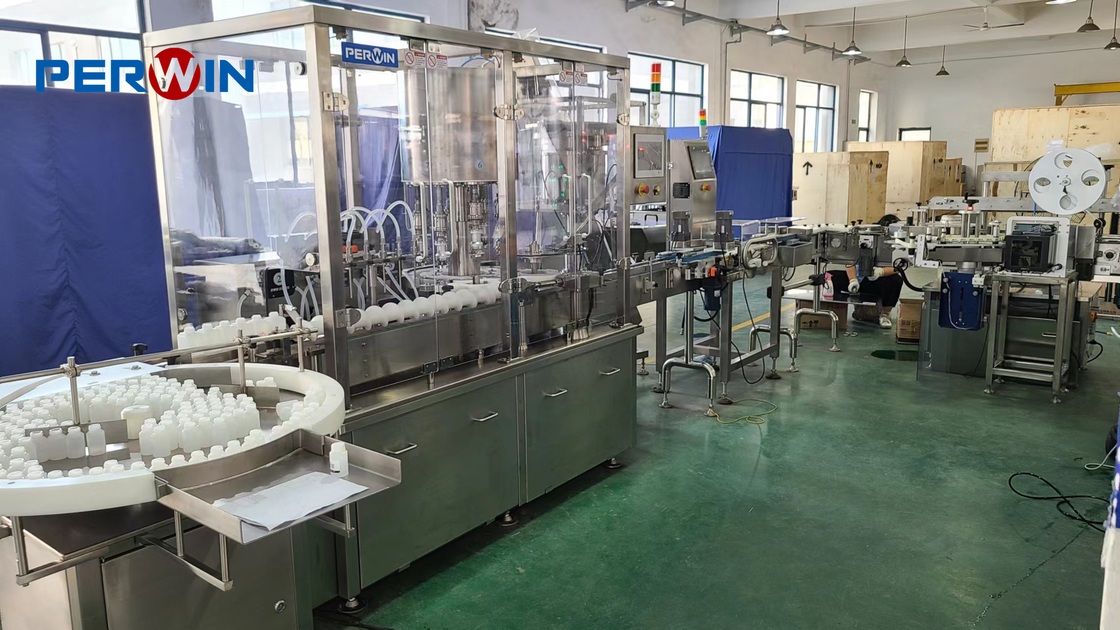

The Vial Filling Line is a customized, high-precision filling system with a broad filling range. It is designed specifically for pharmaceutical production and can be used for vial filling and capping of 10ml, 20ml, 30ml, 60ml, 100ml, and 250ml. For capping, it is equipped with an 8-head rotary capping machine with a magnetic induction mechanism that controls the cap torque and ensures accurate and reliable capping. The filling accuracy is ±1~3%, and the control system includes a PLC bus control and HMI for a smooth production process. As a vial capping machine and vial filling system, the Vial Filling Line is an ideal choice for a vial filling production line.
Parameters | Details |
---|---|
Quality control | Inline Check Weigher |
Filling Accuracy | ±1~3% |
Dimension | Customized |
Power Supply | 400V/60HZ |
Operator | 1~2 People |
Warranty | 1 Year |
Safety | 304 Stainless Steel Frame And Tempered Galss Safety Cover, Door Opening Machine Stop (customer Optional); Leakage Protection; Emergency Stop Device Etc. |
Application | Pharmaceutical And IVD |
Compressed air | 0.4 ~ 0.8Mpa |
Processing Type | Filling, Capping, Labeling |
Vial Filling System | Vial Filling Machine, Vial Capping Machine, Vial Labeling Machine |
Vial Filling Line
PERWIN's Vial Filling Line includes Vial Capping Machine, Vial Labeling System, and Vial Capping Machine, which is suitable for filling, capping, and labeling for 10ml, 20ml, 30ml, 60ml, 100ml, and 250ml vials. It is certified with CE, ISO, GMP, UL, TUV, and SGS, and is powered by 400V/60HZ. The filling temperature is 18 to 26℃ and the control system is PLC Bus Control, HMI. All Vial Filling Lines are shipped in export standard wooden cases.
Vial Filling Line Technical Support and Service
We provide comprehensive technical support and service for Vial Filling Line. Our team of experts, with years of experience in the industry, can provide you with the best technical advice and solutions to ensure the successful installation and operation of your Vial Filling Line.
We offer an extensive range of services, including:
We also provide emergency repair and technical support services 24/7, to ensure your Vial Filling Line is running smoothly and efficiently.
