Efficient Petri Dish Filling Machine 7.5kw Power Consumption Fill 1000-6000dishes/hour
Product Details:
| Place of Origin: | Qidong, Jiangsu |
| Brand Name: | PERWIN |
| Certification: | CE, ISO, GMP, UL, TUV, SGS |
| Model Number: | PW-PP6-7500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export Standard Wooden Cases |
| Delivery Time: | 60 working days |
| Payment Terms: | TT |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Dish Shaking Mechanism: | Servo Motor Control | Filling Needle Insulation: | Prevent The Liquid At The Filling Needle From Cooling Down Too Fast When The Production Is Suspended, And Prevent The Liquid From Solidifying And Blocking The Filling Needle. Control The Outlet Temperature Of The Stainless Steel Filling Needle At 40~45 ° . |
|---|---|---|---|
| Filling Accuracy: | ±1~3% | Dish Separating: | The Dish Separation Mechanism, Upper Suction Cap Mechanism, And Cap Moving Mechanism All Adopt Servo Technology |
| Dish Stacking: | Integrated Servo Sinking And Stacking Unit | Filling Volume: | 4ml~70ml |
| Product Name: | Petri Dish Filling Machine | Voltage: | 400V, Three Phase, 50~60hz |
Product Description
Product Description:

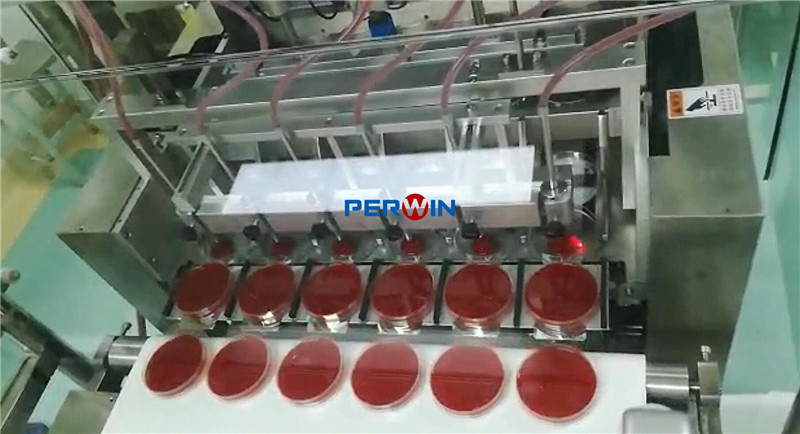

Petri Dish Filling Robot is an advanced filling equipment specially designed for the needs of laboratories and other medical centers. It is capable of precisely filling Petri Dishes with different liquid substances. The system is equipped with a PLC Bus Control and HMI which can be used to easily adjust and monitor the filling process. Additionally, the filling needle has been insulated to prevent the liquid from cooling down too fast when the production is suspended, and also to prevent the liquid from solidifying and blocking the filling needle. The outlet temperature of the stainless steel filling needle can be controlled at 40~45 °. Customers can also choose to maintain a certain temperature in the silicone tube.
Apart from the filling needle, the dish separation mechanism, upper suction cap mechanism, and cap moving mechanism all adopt servo technology, ensuring precise and efficient operation. The system is also equipped with a peristaltic pump, blood bag storage rack, and exclusive FFU area for sheep blood. The sheep blood can be placed on a special shelf with casters for easy transportation. Finally, the Petri Dish Filling Robot is powered by electricity, providing convenience and portability.
Features:
- Petri Dish Filling Machine
- Filling Accuracy: ±1~3%
- Preparation Tank: Electric Heating Insulation Interlayer, Magnetic Stirring At The Bottom, Automatic Speed Control, Automatic SIP, Automatic Temperature Control System, Peristaltic Pump Rehydration
- Intake System: Sterile Filter, Tank Pressure Automatic Control, German Baode/Japan Fujikin Diaphragm Valve, Spirax Sarco And Other Steam Traps Independent Control System
- Product specifications: 90mm Mono And Double Area Plates And 140mm
- Sheep blood adding system: With One Peristaltic Pump, Blood Bag Storage Rack, Exclusive FFU Area. The Sheep Blood Is Placed On A Special Shelf (with Casters).
- Dish shaking mechanism: Servo Motor Control
Technical Parameters:
| Product Specifications | Technical Parameters |
|---|---|
| 90mm Mono And Double Area Plates And 140mm | Compressed air: 0.4~0.8Mpa |
| Power Consumption | 7.5kw |
| Dish Separating | The Dish Separation Mechanism, Upper Suction Cap Mechanism, And Cap Moving Mechanism All Adopt Servo Technology |
| Production Speed | For 90mm Single Area Dish: 3000pcs/hour; For 90mm Double Area Dish: 2500pcs/hour; For 140mm Single Area Dish: 1000pcs/hour |
| Operation Mode | Automatic |
| Filling Volume | 4ml~70ml |
| Safety Protection | SS304 Frame, Tempered Glass |
| Dish Shaking Mechanism | Servo Motor Control |
| Dish Stack | The 90mm Single-zone Dish Uses A 6-station Stacking Method; The 90mm Dual-zone Dish Uses A 3-station Stacking Method; The 140mm Single-zone Dish Uses A 3-station Stacking Method; Each Package Is Packed In A Stack Of 10 Pieces (customers Can Set The Number Of Stacking Layers Themselves). Adopt Box Design And Install Safety Isolation Cover. |
Applications:
The PERWIN PW-PP6-7500 Petri Dish Filling Apparatus is an efficient and reliable machine for filling Petri dishes. It is certified by CE, ISO, GMP, UL, TUV and SGS, and is produced in Qidong, Jiangsu. The minimum order quantity is 1, and the price is negotiable. It is packed in export standard wooden cases, and is delivered within 60 working days. Payment can be made via TT, and the supply ability is 10pcs/month.
The Petri Dish Fill Machine is designed with a filling needle insulation to prevent the liquid at the filling needle from cooling down too fast when production is suspended. This also prevents the liquid from solidifying and blocking the filling needle, and the outlet temperature of the stainless steel filling needle is controlled at 40-45°C. Customers can also choose to maintain a certain temperature in the silicone tube.
The accuracy of the Petri Dish Filling Apparatus is within ±1-3%, and it is equipped with a PLC bus control and HMI for high precision control. Automatic packing machine is also available for inner bag packing.
Customization:
- Brand Name: PERWIN
- Model Number: PW-PP6-7500
- Place of Origin: Qidong, Jiangsu
- Certification: CE, ISO, GMP, UL, TUV, SGS
- Minimum Order Quantity: 1
- Price: Negotiable
- Packaging Details: Export Standard Wooden Cases
- Delivery Time: 60 working days
- Payment Terms: TT
- Supply Ability: 10pcs/month
- Filling volume: 4ml~70ml
- Filling Accuracy: ±1~3%
- Voltage: 400V, Three Phase, 50~60hz
- Operation Mode: Automatic
- Noise Level: ≤75dB
PERWIN PW-PP6-7500 Petri Dish Filling System is a customizable petri dish filling equipment, which can accurately fill petri dishes with various volumes ranging from 4ml to 70ml. It is equipped with a fully automated mechanism and operates in a quiet environment with noise level lower than 75dB. It is CE, ISO, GMP, UL, TUV and SGS certified and suitable for industrial applications.
Support and Services:
We provide technical support and services for our Petri Dish Filling Machine. We offer 24/7 customer service hotline in case of any technical issue. Additionally, our team of engineers are available to provide assistance in troubleshooting and maintenance. We also provide spare parts and accessories for our Petri Dish Filling Machines, and we provide technical advice and guidance for installation and operation.
FAQ:
- Q: What is the Brand Name of the Petri Dish Filling Machine?
- A: The Brand Name of the Petri Dish Filling Machine is PERWIN.
- Q: What is the Model Number of the Petri Dish Filling Machine?
- A: The Model Number of the Petri Dish Filling Machine is PW-PP6-7500.
- Q: Where is the Petri Dish Filling Machine manufactured?
- A: The Petri Dish Filling Machine is manufactured in Qidong, Jiangsu.
- Q: What certifications does the Petri Dish Filling Machine have?
- A: The Petri Dish Filling Machine has CE, ISO, GMP, UL, TUV, and SGS certification.
- Q: What is the minimum order quantity for the Petri Dish Filling Machine?
- A: The minimum order quantity for the Petri Dish Filling Machine is 1.
