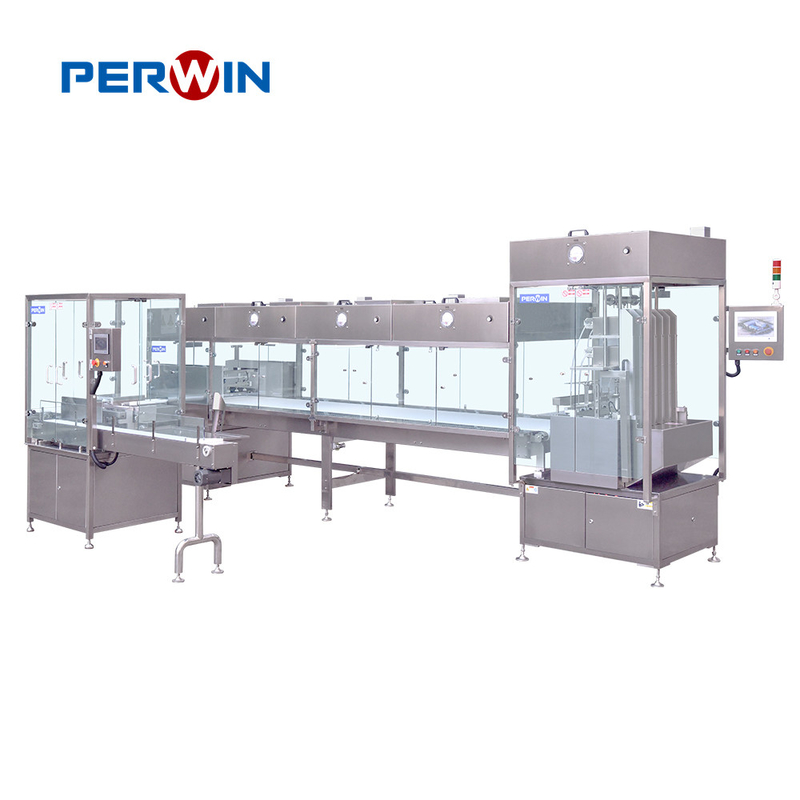

Efficient Petri Dish Filling Machine with Fixed-point Cap Closing

Efficient Petri Dish Filling Machine with Fixed-point Cap Closing

Product Details:

Place of Origin: Qidong, Jiangsu
Brand Name: PERWIN
Certification: CE, ISO, GMP, UL, TUV, SGS
Model Number: PW-PP6-7500

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
Get Best Price Contact Now

Detail Information

Format Changing Time: Within 30mins Preparation Tank: 30L, 60L And 100L Agar Sterilization Reactors Per Line (specific Requirements Are As Follows.) Agar Sterilizers Will Be Used To Prepare A Variety Of Media, With Or Without Blood And/or Supplements. Therefore, Jars Should Be Sterilized For Agar At 121°C Fo
Material: SUS304 And SUS316 Cooling Time: 3~5min, Customer Can Set Accordingly.
Filling Material: Agar And Sheep Blood Control System: PLC Bus Control, HMI
Weight: 1500kgs Filling Method: 6 Sets Of Peristaltic Pumps, Each Driven By A Separate Stepping System, Assembled By Perwin. Operate On The Host's Touch Screen, The Filling Specification Can Be Selected On The Interface, And The Filling Accuracy Of Each Pump Can Be Adjusted Independently

Product Description

Product Description:

Petri Dish Filling Machine is a high-tech machine which is specially designed to fill Petri dishes with liquids in the laboratory. It is an ideal solution for laboratories that need to process large amounts of Petri dishes in a short period of time. This machine is capable of changing its format within 30 minutes and filling up to 2000-3000 Petri dishes per hour. The main machine length is 7500mm and it requires compressed air at 0.4-0.8Mpa. This machine also has a filling needle insulation feature, which helps prevent the liquid at the filling needle from cooling down too fast when the production is suspended. It also prevents the liquid from solidifying and blocking the filling needle. The outlet temperature of the stainless steel filling needle is controlled at 40-45°C. Customers can also choose to maintain a certain temperature in the silicone tube.



Features:

  • Product Name: Petri Dish Filling Machine
  • Power Consumption: 7.5kw
  • Filling needle insulation: Prevent The Liquid At The Filling Needle From Cooling Down Too Fast When The Production Is Suspended, And Prevent The Liquid From Solidifying And Blocking The Filling Needle. Control The Outlet Temperature Of The Stainless Steel Filling Needle At 40~45°.
  • Compressed air: 0.4~0.8Mpa
  • Safety Protection: SS304 Frame, Tempered Glass
  • Filling Accuracy: ±1~3%
  • Petri Dish Filling Equipment: Automated Filling System
  • Petri Dish Filling System: Intelligent Control System


Technical Parameters:

Parameter Description
Filling material Agar And Sheep Blood
Application Hospital, Pharmaceutical Company
Filling volume 10~20ml
Product specifications For 90mm Single Zone Dish, 90mm Bi-plates Dish, 65mm Contact Dish, 65mm Single Zone Dish
Inkjet printing The Inkjet Printing Holes At The Bottom Of The Petri Dish Are Reserved In The Conveyor Belt
Preparation tank 30L, 60L And 100L Agar Sterilization Reactors Per Line (specific Requirements Are As Follows.) Agar Sterilizers Will Be Used To Prepare A Variety Of Media, With Or Without Blood And/or Supplements. Therefore, Jars Should Be Sterilized For Agar At 121°C For At Least 15 Minutes. Then Cool To 38-45°C And Hold This Temperature Steady For At Least 8 Hours. With Fluid Input Port The Thermometer Should Be Of The Highest Accuracy, The Mixer Should Have Multiple Levels, Say These Are The Basic Requirements, The Tank Will Be For A Variety Of Agars, Not A Specific Few.
Filling speed 2000~3000dishes/hour
Dish separating The Dish Separation Mechanism, Upper Suction Cap Mechanism, And Cap Moving Mechanism All Adopt Servo Technology
Power consumption 7.5kw
Weight 1500kgs


Applications:

The PERWIN PW-PP6-7500 Petri Dish Filling System is a high-end automated filling machine that is designed for laboratories. It is manufactured in Qidong, Jiangsu, China. It is certified by CE, ISO, GMP, UL, TUV and SGS, and is of the highest quality and safety standards. The minimum order quantity is 1, and the price is negotiable. The packaging is done with export standard wooden cases and the delivery time is 60 working days. The payment terms are TT. The system has a supply ability of 10pcs/month. The voltage is 400V, three phase, 50~60hz.

The Petri Dish Filling System is equipped with an integrated servo sinking and stacking unit, an automatic packing machine, and a dish separation mechanism. The upper suction cap mechanism and cap moving mechanism are also servo-powered. The noise level is ≤75dB. This system is reliable and efficient, and is perfect for laboratories that need to quickly and accurately fill petri dishes.



Customization:

PERWIN PW-PP6-7500 Petri Dish Filling Machine

Brand Name: PERWIN
Model Number: PW-PP6-7500
Place of Origin: Qidong, Jiangsu
Certification: CE, ISO, GMP, UL, TUV, SGS
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month

Features of PERWIN PW-PP6-7500 Petri Dish Filling Machine
  • Filling Accuracy: ±1~3%
  • Filling material: Agar And Sheep Blood
  • Filling needle insulation: Prevent The Liquid At The Filling Needle From Cooling Down Too Fast When The Production Is Suspended, And Prevent The Liquid From Solidifying And Blocking The Filling Needle. Control The Outlet Temperature Of The Stainless Steel Filling Needle At 40~45 ° . (customer Can Choose To Maintain A Certain Temperature In The Silicone Tube As Well.)
  • Inner bag packing: Automatic Packing Machine
  • Safety Protection: SS304 Frame, Tempered Glass

PERWIN PW-PP6-7500 Petri Dish Filler is an ideal automation solution for filling Petri dishes with accuracy and speed.

It provides a comprehensive solution for Petri dish filling with its accurate filling, high speed, and safety protection features.

It is the perfect solution for any laboratory or research facility that needs to fill Petri dishes quickly and accurately.



Support and Services:

Technical Support and Service for Petri Dish Filling Machine

We are dedicated to providing excellent technical support and service for our Petri Dish Filling Machine. Our team of technicians are available to assist with any questions or issues you may have.

We offer a range of services to ensure your Petri Dish Filling Machine is running optimally. These services include:

  • Installation and Setup Support
  • Troubleshooting and Repair
  • Regular Maintenance and Cleaning
  • Software Updates and Upgrades

We also provide a wide range of resources to help you get the most out of your Petri Dish Filling Machine. These include:

  • User Manuals
  • Product Brochures
  • Tutorial Videos
  • FAQs

If you need any assistance or have any questions about our Petri Dish Filling Machine, please don't hesitate to contact us. We are always happy to help.



FAQ:

Q1: What is the brand name of this Petri Dish Filling Machine?

A1: The brand name of this Petri Dish Filling Machine is PERWIN.

Q2: What is the model number of this Petri Dish Filling Machine?

A2: The model number of this Petri Dish Filling Machine is PW-PP6-7500.

Q3: Where is this Petri Dish Filling Machine from?

A3: This Petri Dish Filling Machine is from Qidong, Jiangsu.

Q4: What certifications does this Petri Dish Filling Machine have?

A4: This Petri Dish Filling Machine has CE, ISO, GMP, UL, TUV, SGS certifications.

Q5: How many Petri Dish Filling Machines can be supplied each month?

A5: This Petri Dish Filling Machine can supply 10pcs/month.
