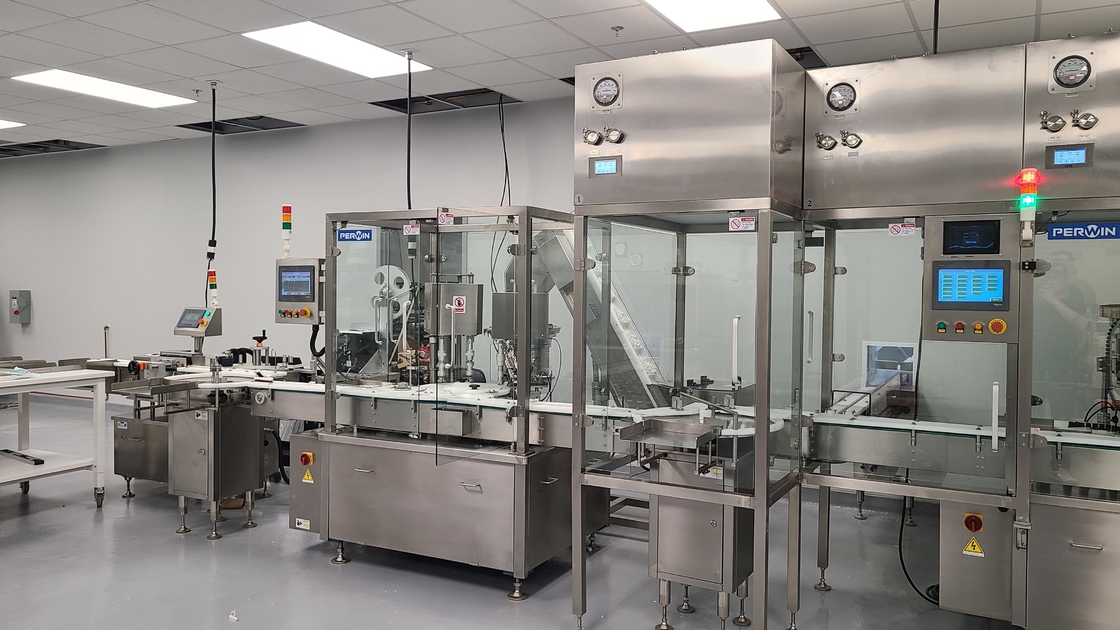

Output Automatic Glass Vial Filling Capping Machine with Servo Motor

Product Description:

The Vial Labeling System is comprised of a Vertical Round Vial Labeling Machine that is equipped with a 600mm Buffer Turntable. This allows for easy changing of the label roll without stopping the upstream equipment. This labeling machine is perfect for labeling various sizes and shapes of vials.

The metering method of the Vial Filling Production Line consists of a Four-channel Longer DPOFLEXTM PFS Precision Peristaltic Pump. This pump is capable of filling volumes ranging from 30µl to 10ml with an accuracy of ±0.5%. Each channel can be set and adjusted independently, making it easy to fill different types of vials. The 7-inch high-definition LCD screen is compliant with 21 CFR Part 11 and EU Annex 11 standards, ensuring that your production line is in compliance with industry regulations.

The capping torque of the Vial Filling Production Line is pre-set on the touch screen (HMI). If the torque is not reached, the servo motor will automatically tighten the cap. When the torque is reached or exceeded, the servo motor will automatically stop capping. This ensures consistent and accurate capping for every vial.

The main body of the filling and capping machine is equipped with a 304 stainless steel frame and tempered glass. This provides a secure and safe environment for your production line. The Vial Filling Production Line also includes alarm information, door open shutdown, emergency stop device, and other security features to ensure the safety of your operators.

Pneumatic components used in the Vial Filling Production Line are sourced from Festo or SMC, ensuring the highest quality standards in the industry.

Features:

• Product Name: Vial Filling Line
• Double station stoppering: The Mechanical Arm Sucks The Rubber Stoppers Of The Two Channels Respectively With Negative Pressure And Swings 90° To Press Them On The Bottle Mouth. Partial Stoppering And Full Stoppering Process Requirements Can Be Completed As Required
• Main motor: ABB
• PLC: Schneider Or Siemens
• HMI: Schneider Or Siemens
• Filling nozzle lifting: The Cam Mechanism Controls The Lifting Of The Filling Nozzle To Prevent Liquid Splashing
• Vial Sealing Machine
• Vial Labeling System
• Vial Labeling System

Technical Parameters:

This table represents the technical parameters for the Vial Filling Production Line, also known as the Vial Filling System. This system includes a Vial Capping Machine and has a filling range of 0.5ml to 10ml. It has a laminar flow hood equipped with two sets to ensure the filling and stoppering area is clean and sterile. The 10ml specification product is filled twice to meet production capacity, with each fill being done by an independent peristaltic pump. It uses either Schneider or Siemens for its PLC and HMI, and has a vertical round vial labeling machine with a 600mm buffer turntable. The main motor used is ABB. Once filled and stoppered, it directly enters the capping machine for full bunging.

Applications:

The PERWIN PW-HWGX220 Vial Filling Line is an automated vial filler that is designed to fill and seal various types of vials with precision and accuracy. This vial filling line is manufactured in Qidong, Jiangsu and comes with CE, ISO, GMP, UL, TUV, and SGS certifications. The minimum order quantity is 1, and the price is negotiable.

The vial filling line is packaged in export standard wooden cases and has a delivery time of 60 working days. Payment terms are TT, and the supply ability is 10pcs/month. The compressed air required for this machine is 0.4～0.7Mpa, and pneumatic components used are Festo or SMC.

The working process of the vial filling line is as follows:

• Vial loading on 600mm turntable
• Double-station argon filling twice and liquid filling (10ml product, filled in two times)
• Double-station automatic stoppering + detection and rejection station (leaky filling, no stopper)
• Half-stoppering collection station
• Products which were frozen drying were loaded on a 600mm turntable
• Double-station capping machine (pre-screwing cap + capping)
• Customer option: 600mm labeling buffer turntable + small round vial vertical labeling machine

The vial filling line comes equipped with a vertical round vial labeling machine that is capable of labeling vials accurately and efficiently. The labeling machine is also equipped with a 600mm buffer turntable, which can change the label roll without stopping the upstream equipment.

In addition, the vial filling line comes with a double-station stoppering mechanism that uses a mechanical arm to suck the rubber stoppers of the two channels respectively with negative pressure and swings 90° to press them on the bottle mouth. Partial stoppering and full stoppering process requirements can be completed as required.

The PERWIN PW-HWGX220 Vial Filling Line is ideal for use in pharmaceutical, biotech, and cosmetic industries. It is perfect for filling and sealing various types of vials, including glass vials, plastic vials, and more. This automated vial filler provides high accuracy and precision, ensuring that your products are filled to the correct volume every time.

Support and Services:

- Installation and commissioning of the equipment

- Training for the operators and maintenance personnel

- Technical support via phone, email, or on-site visits

- Preventive maintenance programs

- Spare parts and consumables supply

- Upgrades and retrofits for existing equipment

- Calibration and validation services

- Remote monitoring and diagnostics
