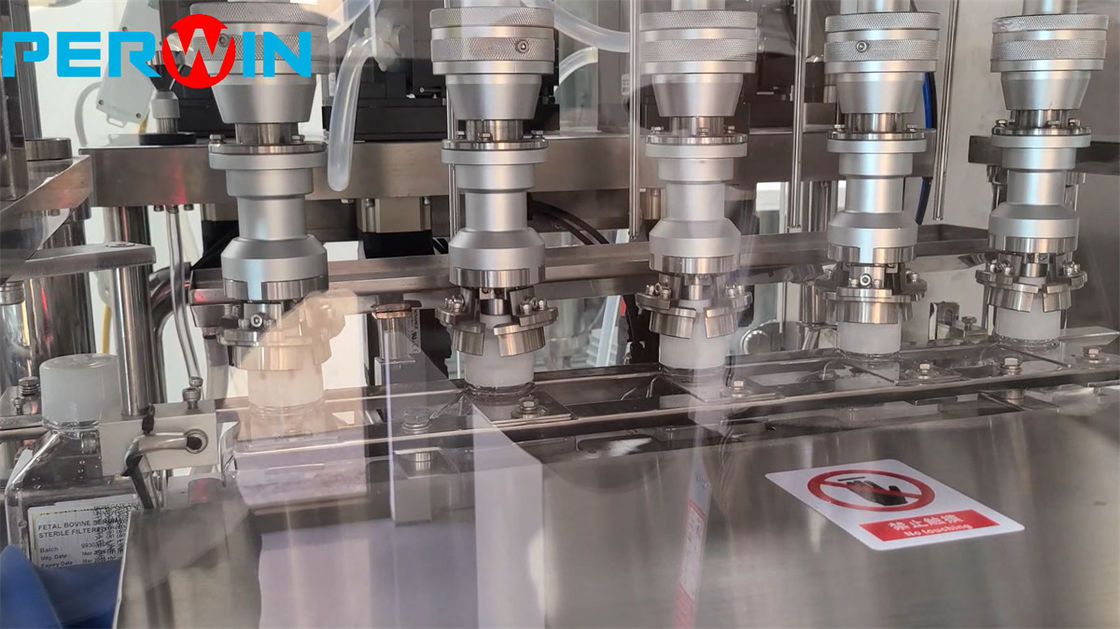

Animal Sera Filling Equipment With Peristaltic Pumps And Screw Bottle Positioning

Product Details

Place of Origin: Shanghai

Brand Name: PERWIN

Certification: CE, ISO, GMP, UL, TUV, SGS

Model Number: PW-ZWGX550

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Export Standard Wooden Cases

Delivery Time: 60 working days

Payment Terms: TT

Supply Ability: 10pcs/month

Get Best Price
Contact Now
Specifications
Highlight:

Peristaltic Pumps Animal Sera Filling Equipment

,

Screw Bottle Positioning Animal Sera Filling

Torque Control Method:
Servo Technology
Filling Method:
5 Sets Of OEM Peristaltic Pumps, Watson-Marlow 505L Pump Heads, Driven By Servo Motors. Set And Adjust The Filling Volume On The Touch Screen
Filling Program Control:
Each Group Of Pumps Is Individually Controlled
Weight:
1000kg
Filling Accuracy:
±0.5~1%
Working Process:
Bottle Loading On Powered Platform (unpacking Station)→ Screw Positioning Bottle → De-capping → Weighing I → Peristaltic Pump Filling→ Weighing II And Capping→Automatic Rejection Station→Finished Products To Packing Area→ Automatic Sleeve Labeling → Heat S
Bottle Separating Method:
1 Set Of Servo Motor Drive Screw For Positioning
Buffer Bag:
Single Use Buffer Bag With Pipes And Filling Nozzles
Torque Control Method:
Servo Technology
Filling Method:
5 Sets Of OEM Peristaltic Pumps, Watson-Marlow 505L Pump Heads, Driven By Servo Motors. Set And Adjust The Filling Volume On The Touch Screen
Filling Program Control:
Each Group Of Pumps Is Individually Controlled
Weight:
1000kg
Filling Accuracy:
±0.5~1%
Working Process:
Bottle Loading On Powered Platform (unpacking Station)→ Screw Positioning Bottle → De-capping → Weighing I → Peristaltic Pump Filling→ Weighing II And Capping→Automatic Rejection Station→Finished Products To Packing Area→ Automatic Sleeve Labeling → Heat S
Bottle Separating Method:
1 Set Of Servo Motor Drive Screw For Positioning
Buffer Bag:
Single Use Buffer Bag With Pipes And Filling Nozzles
Description
Animal Sera Filling Equipment With Peristaltic Pumps And Screw Bottle Positioning

Product Description:

Choose from a variety of filling heads and nozzles, including five, six, seven, and eight, to best suit your production needs. And with an aseptic filling environment, an A-class (ISO5) 100 laminar flow hood is required, ensuring the highest level of cleanliness and product safety.

With a power consumption of 10KW for the whole line, the Animal Serum Filler is not only reliable and efficient, but also cost-effective. This machine is ideal for labs and production facilities looking to streamline their animal plasma aseptic filling line.



Features:

  • Product Name: Animal Sera Filling Machine
  • Labeling machine: Mechanical Synchronization Of Top Pressure Positioning Mechanism, Horizontal Positioning Mechanism And Conveyor Belt, Three-in-one Power, Accurate And Stable Positioning
  • Working process: Bottle Loading On Powered Platform (unpacking Station)→ Screw Positioning Bottle → De-capping → Weighing I → Peristaltic Pump Filling→ Weighing II And Capping→Automatic Rejection Station→Finished Products To Packing Area→ Automatic Sleeve Labeling → Heat Shrinking Machine → Single Side Labeling Machine→Bottle Collection Platform
  • Filling Nozzle: Five/Six/Seven/Eight
  • Weight: 1000kg
  • Representative customers: Thermofisher, Roche, Abbott, Bovogen, Moregate, X-therma, Sciencell

Fetal bovine serum filling machine, Animal Serum Filler, Animal Sera filling line



Technical Parameters:

Technical Parameters Description
Working Process Bottle Loading On Powered Platform (unpacking Station)→ Screw Positioning Bottle → De-capping → Weighing I → Peristaltic Pump Filling→ Weighing II And Capping→Automatic Rejection Station→Finished Products To Packing Area→ Automatic Sleeve Labeling → Heat Shrinking Machine → Single Side Labeling Machine→Bottle Collection Platform
Filling Head Five/Six/Seven/Eight
Security 304 Stainless Steel Frame, Tempered Glass Cover. Open The Door To Stop; Emergency Stop Device, Earth Leakage Protection. HEPA Can Be Installed
Bottle Separating Method 1 Set Of Servo Motor Drive Screw For Positioning
Filling Speed 5~30bottles/min
Filling Program Control Each Group Of Pumps Is Individually Controlled
Weighing Unit Mettler Load Cell + Controller. Marble Floor Installation Foundation
Capping Head Lift Servo Motor Control
Representative Customers Thermofisher, Roche, Abbott, Bovogen, Moregate, X-therma, Sciencell
Filling Accuracy ±0.5~1%


Applications:

The PERWIN PW-ZWGX550 is an ideal product for filling animal sera products in aseptic environments. The filling machine is designed to provide accurate and stable positioning and filling accuracy of ±0.5~1%. The mechanical synchronization of top pressure positioning mechanism, horizontal positioning mechanism, and conveyor belt provides three-in-one power. Each group of pumps is individually controlled to ensure accurate filling of the products. The filling machine is designed to work in an aseptic filling environment, and an A-class (ISO5) 100 laminar flow hood is required.

The PERWIN PW-ZWGX550 is an ideal product for capping animal sera products. The machine comes with 5 sets of capping units, and each set of servo motors is individually controlled. The clockwise capping and anti-clockwise capping feature ensures that the capping process is accurate and stable.

The animal sera filling machine is ideal for use in various occasions and scenarios. It can be used in veterinary hospitals, research laboratories, animal feed production factories, and animal vaccine production facilities. The PERWIN PW-ZWGX550 is designed to meet the demands of the animal plasma aseptic filling line, and it provides a reliable and efficient solution for filling and capping animal sera products.



Support and Services:

The Animal Sera Filling Machine is a state-of-the-art piece of equipment designed to efficiently and accurately fill animal sera into vials or bottles. The machine is equipped with advanced technology to ensure consistent and precise filling, minimizing the risk of contamination and ensuring product quality.

Our technical support team is available to assist with any questions or issues that may arise with the machine. We offer comprehensive training for operators, as well as ongoing maintenance and repair services to keep your machine running smoothly.

In addition to technical support, we also offer customization options to ensure the machine meets your specific needs and requirements. Our team of experts can work with you to design and manufacture a machine tailored to your unique specifications.

Trust our team to provide high-quality technical support and services for your Animal Sera Filling Machine.



FAQ:

Q: What is the brand name of this product?

A: The brand name of this product is PERWIN.

Q: What is the model number of this product?

A: The model number of this product is PW-ZWGX550.

Q: Where is this product manufactured?

A: This product is manufactured in Shanghai.

Q: What certifications does this product have?

A: This product has CE, ISO, GMP, UL, TUV, SGS certifications.

Q: What is the minimum order quantity for this product?

A: The minimum order quantity for this product is 1.

Q: Is the price negotiable?

A: Yes, the price is negotiable.

Q: How is this product packaged?

A: This product is packaged in export standard wooden cases.

Q: How long does it take for delivery?

A: Delivery time is 60 working days.

Q: What are the payment terms for this product?

A: The payment terms for this product are TT.

Q: What is the supply ability of this product?

A: The supply ability of this product is 10pcs/month.
