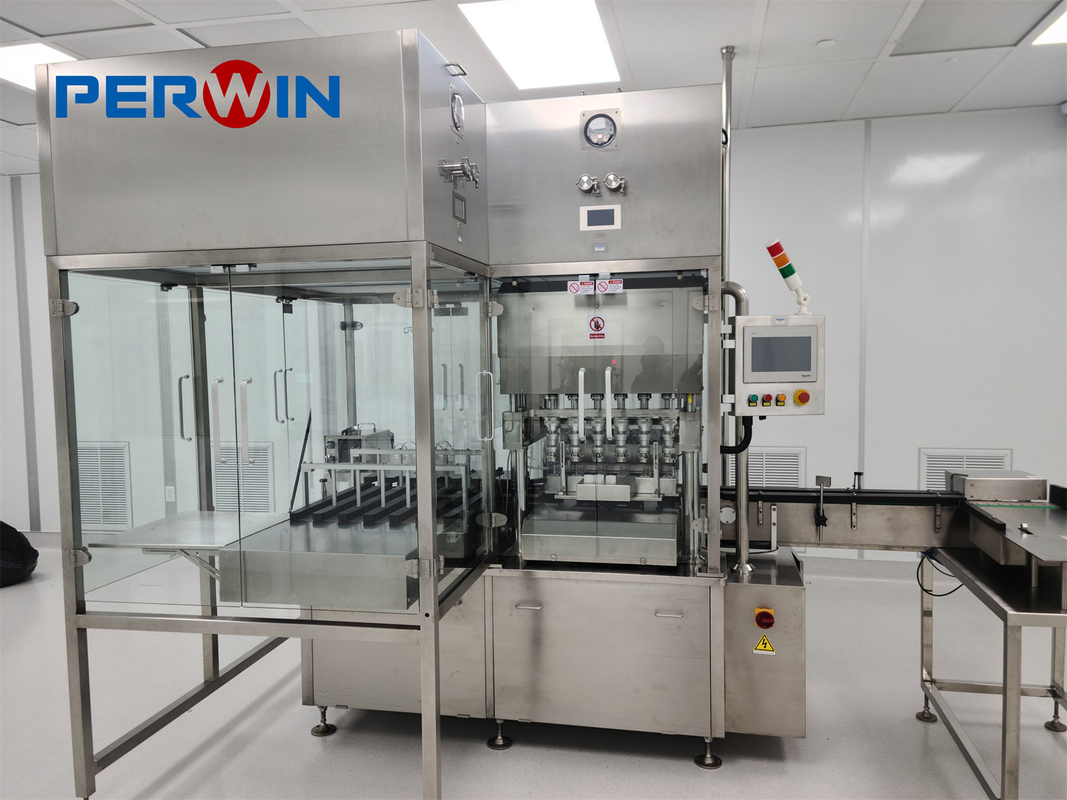

Precision Servo PLC Filling Machine with Weighing Module for Cellular Culturing Medium

Product Description:

The Media Filling Machine requires compressed air of 0.4~0.7Mpa to operate. It is designed with a PLC from Siemens, Germany, which ensures that the machine operates smoothly and with high accuracy. The machine is equipped with a 30L Buffer Tank or Buffer Bag, which comes with an automatic weighing system. This tank helps keep the six-channel liquid output from the Buffer Tank (bag) at a relatively stable flow rate. The liquid flow and flow rate supplied to the peristaltic pump are stable to ensure the stability of the peristaltic pump filling accuracy.

The Media Filling Machine is part of a complete production line that includes a Square Bottle 6 Heads Filling and Capping Machine, an Automatic Sleeve Labeling Machine, an Automatic Heat Shrinking Machine, a Double Side Labeling Machine, and an Automatic Bottle Collection Platform. This production line ensures that the entire process of filling, capping, labeling, and collecting of bottles is done efficiently and accurately.

The Media Filling Machine is designed with a decontamination area. The high-efficiency filter HEPA coverage scheme of the filling and capping machine is divided into three areas Q1, Q2, and Q3. It is equipped with a separate 100-level laminar flow hood, and the wind pressure can be adjusted to Q3>Q2>Q1. This ensures that the filling process is done in a sterile environment, preventing any contamination.

In summary, the Media Filling Machine is a highly efficient and reliable machine designed for the biopharmaceutical industry. It is equipped with advanced technology and high-quality components to ensure precision filling of cell culturing medium. With its buffer tank, automatic weighing system, and decontamination area, the Media Filling Machine provides an efficient and sterile process of filling cell culturing medium. If you are looking for a Culture medium filling machine, the Media Filling Machine is the perfect choice.

Features:

• Product Name: Media Filling Machine
• Capping method: Six Groups Of Capping Units Controlled By Servo Motors, Each Group Is Controlled By Servo Motors Individually, Three-jaw Capping Head. The Bottle Cap Can Be Unscrewed In The Reverse Direction And Screwed On In The Forward Direction
• Filling nozzle lifting: A Set Of High-power Servo Motor Control
• Capping torque control: Each Capping Unit Is Controlled By A Servo Motor, And The Capping Torque Of The Servo Motor Is Preset. When Capping, If The Preset Capping Torque Is Not Reached, The Servo Motor Will Automatically Tighten The Cap To The Preset Torque
• Power supply: Filling And Capping Machine: 220v 50Hz. Heat Shrinking Machine And Labeling Machine: 380v 50Hz
• Measurement method: Six Sets Of Precision Pump Heads, Driven By Servo Motors, Set And Adjust The Filling Volume On The Touch Screen

Keywords: Cell culture medium filling machine, Cell culturing medium filling machine, Culture medium filling machine

Technical Parameters:

Applications:

This cell culture medium filling machine is manufactured in Qidong, Jiangsu, and meets international standards such as CE, ISO, GMP, UL, TUV, and SGS. The minimum order quantity for this product is one, and the price is negotiable. The packaging details are export standard wooden cases, and the delivery time is 60 working days. The payment terms are TT, and the supply ability is 10pcs/month.

The PW-ZMGX660 cell culture media filler is equipped with a set of high-power servo motor control that lifts the filling nozzle, ensuring accuracy and precision during the filling process. It requires compressed air of 0.4~0.7Mpa to operate efficiently. The decontamination area of the filling and capping machine is equipped with a high-efficiency filter HEPA coverage scheme, divided into three areas Q1, Q2, Q3, and equipped with a separate 100-level laminar flow hood. The wind pressure can be adjusted to Q3>Q2>Q1, ensuring that the filling process is contamination-free.

The measurement method of the cell culture medium filler is six sets of precision pump heads, driven by servo motors. The filling volume can be easily set and adjusted on the touch screen. Each capping unit is controlled by a servo motor, and the capping torque of the servo motor is preset. When capping, if the preset capping torque is not reached, the servo motor will automatically tighten the cap to the preset torque.

The PW-ZMGX660 is a perfect fit for cellular culture medium filler applications. It is highly efficient, reliable, and easy to use, making it an essential tool for any biopharmaceutical industry, research laboratory, or medical field.

Support and Services:

The Media Filling Machine product comes with technical support and services to ensure efficient and effective operation. Our team of experts is available to assist with any technical issues that may arise as well as provide training to ensure proper use and maintenance of the machine.

Our technical support includes:

• Remote troubleshooting and diagnosis
• On-site technical assistance (if needed)
• Repairs and replacements for defective parts
• Regular maintenance and calibration

We also offer additional services to enhance the performance of the Media Filling Machine:

• Customization and integration with other systems
• Upgrades and improvements to the machine's functionality
• Consultation and advice on optimizing processes
• Training for operators and maintenance personnel

FAQ:

Q: What is the brand name of the media filling machine?

A: The brand name of the media filling machine is PERWIN.

Q: What is the model number of the media filling machine?

A: The model number of the media filling machine is PW-ZMGX660.

Q: Where is the media filling machine manufactured?

A: The media filling machine is manufactured in Qidong, Jiangsu.

Q: What certifications does the media filling machine have?

A: The media filling machine has CE, ISO, GMP, UL, TUV, SGS certifications.

Q: What are the payment terms for the media filling machine?

A: The payment terms for the media filling machine are TT.

Q: What is the minimum order quantity for the media filling machine?

A: The minimum order quantity for the media filling machine is 1.

Q: What is the price of the media filling machine?

A: The price of the media filling machine is negotiable.

Q: What are the packaging details for the media filling machine?

A: The packaging details for the media filling machine are export standard wooden cases.

Q: What is the delivery time for the media filling machine?

A: The delivery time for the media filling machine is 60 working days.

Q: What is the supply ability of the media filling machine?

A: The supply ability of the media filling machine is 10pcs/month.
