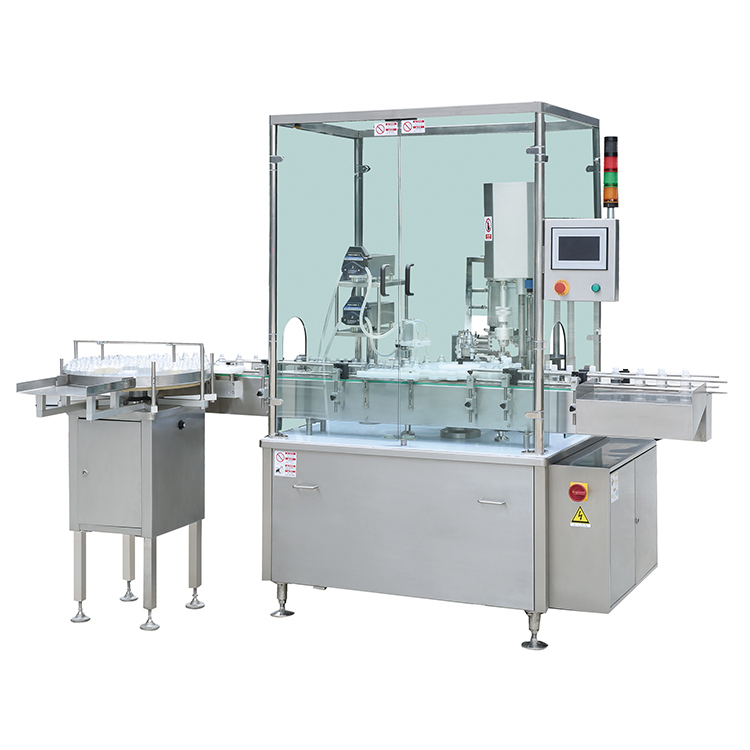

Aseptic Bottle Filling Machines and Equipment for Reagent Solution

Product Details

Place of Origin: Jiangsu, China

Brand Name: PERWIN

Payment & Shipping Terms

Minimum Order Quantity: 1

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          aseptic bottle filling machine for reagent, reagent solution filling equipment, diagnostic reagent filling line machine


Machinery Capacity:	4000BPH, 20000BPH	Dimension:	200016002000mm
Weight:	800 KG	Filling Accuracy:	±1 ~ 2%, Customizable
Filling Capacity:	0.1ml~250ml, Customizable	Yield:	15~150 Bottles/pack
Compressed Air:	0.5~0.8Mpa,40~50L/min	Main Body Material:	Stainless Steel SUS 304#, Aluminum Alloy, Non-toxic Polymer Materials
Filling Needle Material:	Polymer Material Or 316L Stainless Steel Material	Bottle Loading Method:	Bottle Loading Turntable Or Automatic Bottle Unscrambler
Measurement Method:	Pipette, Plunger Pump, Piston Pump, Peristaltic Pump, Customer Optional	Drive Type:	Electric
Automatic Grade:	Automatic	Core Components:	Motor, Pump, PLC, Gear, Engine
Packaging Material:	Wood

Machinery Capacity:	4000BPH, 20000BPH
Dimension:	200016002000mm
Weight:	800 KG
Filling Accuracy:	±1 ~ 2%, Customizable
Filling Capacity:	0.1ml~250ml, Customizable
Yield:	15~150 Bottles/pack
Compressed Air:	0.5~0.8Mpa,40~50L/min
Main Body Material:	Stainless Steel SUS 304#, Aluminum Alloy, Non-toxic Polymer Materials
Filling Needle Material:	Polymer Material Or 316L Stainless Steel Material
Bottle Loading Method:	Bottle Loading Turntable Or Automatic Bottle Unscrambler
Measurement Method:	Pipette, Plunger Pump, Piston Pump, Peristaltic Pump, Customer Optional
Drive Type:	Electric
Automatic Grade:	Automatic
Core Components:	Motor, Pump, PLC, Gear, Engine
Packaging Material:	Wood

Description

Aseptic Bottle Filling Machines and Equipment for Reagent Solution

Product Specifications

Product Name	A Type (without inner plug) Small Volume Filling Machine
Main Body Material	Stainless steel SUS 304#, aluminum alloy, non-toxic polymer materials
Filling Needle Material	Polymer material or 316L stainless steel material
Bottle Loading Method	Bottle loading turntable or automatic bottle unscrambler
Measurement Method	Pipette, plunger pump, piston pump, peristaltic pump (Customer optional)
Filling Capacity	0.1ml~250ml (According to customer's actual product specifications)
Yield	15~150 bottles/pack, can be customized
Compressed Air	0.5~0.8Mpa, 40~50L/min
Filling Accuracy	±1 ~ 2%, can be customized
Drive Type	Electricity
Size	200016002000mm
