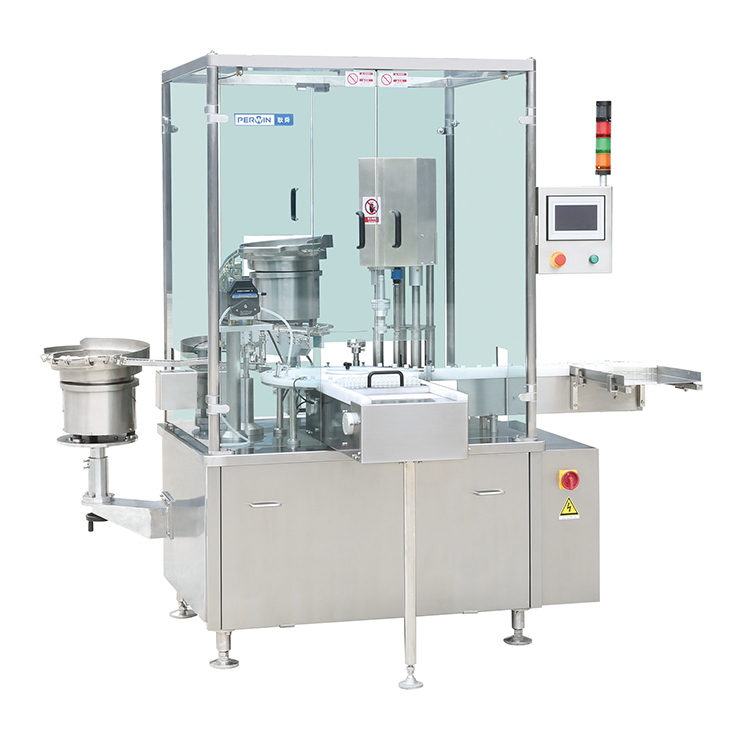

Automatic Liquid Soap & Hand Sanitizer Filling Machine

Product Details

Place of Origin: Jiangsu, China

Brand Name: PERWIN

Payment & Shipping Terms

Minimum Order Quantity: 1

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          automatic liquid soap filling machine, hand sanitizer filling machine with warranty, diagnostic reagent filling line equipment


Machinery Capacity:	4000BPH, 20000BPH	Dimension:	200016002000mm
Filling Accuracy:	±1 ~ 2%, Customizable	Filling Capacity:	0.1ml~250ml, Customizable
Yield:	15~150 Bottles/min	Compressed Air:	0.5~0.8Mpa,40~50L/min
Main Body Material:	Stainless Steel SUS 304#, Aluminum Alloy, Non-toxic Polymer Material	Filling Needle Material:	Polymer Material Or 316L Stainless Steel Material
Bottle Loading Method:	Bottle Loading Platform, Turntable, Automatic Bottle Unscrambler	Measurement Method:	Pipette, Plunger Pump, Piston Pump, Peristaltic Pump
Stopping Method:	Robotic Arm Automatically Fetches Plugs	Capping Method:	Pre-screw Cap And Screw Cap (or Tie Aluminum Cap)
Weight:	800 KG	Driven Type:	Electric
Automatic Grade:	Automatic

Machinery Capacity:	4000BPH, 20000BPH
Dimension:	200016002000mm
Filling Accuracy:	±1 ~ 2%, Customizable
Filling Capacity:	0.1ml~250ml, Customizable
Yield:	15~150 Bottles/min
Compressed Air:	0.5~0.8Mpa,40~50L/min
Main Body Material:	Stainless Steel SUS 304#, Aluminum Alloy, Non-toxic Polymer Material
Filling Needle Material:	Polymer Material Or 316L Stainless Steel Material
Bottle Loading Method:	Bottle Loading Platform, Turntable, Automatic Bottle Unscrambler
Measurement Method:	Pipette, Plunger Pump, Piston Pump, Peristaltic Pump
Stopping Method:	Robotic Arm Automatically Fetches Plugs
Capping Method:	Pre-screw Cap And Screw Cap (or Tie Aluminum Cap)
Weight:	800 KG
Driven Type:	Electric
Automatic Grade:	Automatic

Description

Automatic Liquid Soap & Hand Sanitizer Filling Machine

Product Specifications

Product Name	Type B (including inner plug) Small Volume Filling Machine
Main Body Material	Stainless steel SUS 304#, aluminum alloy, non-toxic polymer material
Filling Needle Material	Polymer material or 316L stainless steel material
Bottle Loading Method	Bottle loading platform, bottle loading turntable or automatic bottle unscrambler
Measurement Method	Pipette, plunger pump, piston pump, peristaltic pump
Filling Capacity	0.1ml~250ml (According to customer's actual product specifications)
Yield	15~150 bottles/min
Compressed Air	0.5~0.8Mpa, 40~50L/min
Filling Accuracy	±1 ~ 2%, can be customized
Stopping Method	Robotic arm automatically fetches plugs
Capping Method	Pharmaceutical polymer material or 316L stainless steel material
Size	200016002000mm
