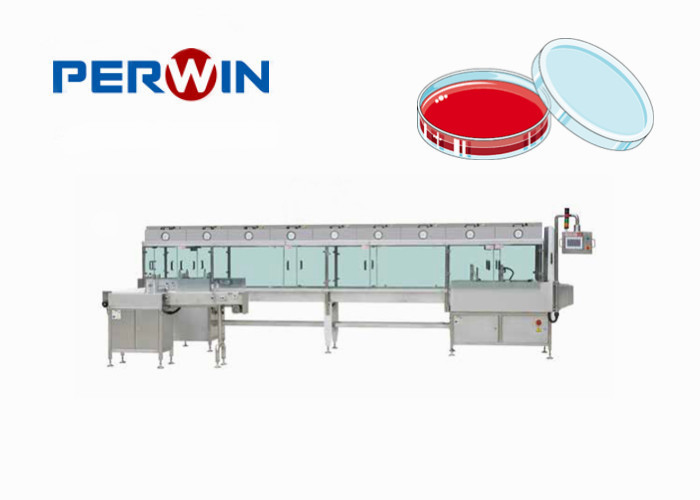

Petri Dish Filling - Dedicated Dish Machin / Contact Dish Filling Line

Product Details

Place of Origin: Shanghai, China

Brand Name: PERWIN

Certification: CE, SGS, ISO9001, TUV

Model Number: PW-PB4800

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: 80000~100000

Packaging Details: Export standard wooden cases

Delivery Time: 60~90 working days

Payment Terms: T/T, L/C

Supply Ability: 5sets/month

Get Best Price
Contact Now
Specifications
Highlight:

media plate production equipment

,

media filling machine

Product Name:
Petri Dish Filling - Dedicated Dish Machines/Contact Dish Filling Line
Petri Dish Diameters:
55mm; 90mm;120mm; 150mm
Distribution Line Working Channel:
6 Lanes
Dispensing Speed:
2000 Pcs/hour
Dispensing Accuracy:
3%
Petri Dish Stacking Method:
Single Lane Automatic Stacking Mechanism
Filling Environment:
Aseptic With FFU Or HEPA Filter
Product Name:
Petri Dish Filling - Dedicated Dish Machines/Contact Dish Filling Line
Petri Dish Diameters:
55mm; 90mm;120mm; 150mm
Distribution Line Working Channel:
6 Lanes
Dispensing Speed:
2000 Pcs/hour
Dispensing Accuracy:
3%
Petri Dish Stacking Method:
Single Lane Automatic Stacking Mechanism
Filling Environment:
Aseptic With FFU Or HEPA Filter
Description
Petri Dish Filling - Dedicated Dish Machin / Contact Dish Filling Line



Petri Dish Filling - Dedicated Dish Machin / Contact Dish Filling Line

Petri Dish Filling - Dedicated Dish Machin / Contact Dish Filling Line 0

1. Product Application

Culture media filling machine is suitable for 65, 90 normal, contact/Rodac plates. Production speed and cooling time can be customized.



2. Main Features

1. The operation interface is made of colorful LCD touch screen, and the whole machine system is controlled by PLC.
2. Special design to make sure separate the petri dish faster and more stable.
3. Servo follow-up filling technology to ensure liquid flowing stably and ensure no foaming.
4. Use specially designed mechanical structure and pneumatic, negative pressure technology to accurately placing the cap.
5. Using specially designed mechanical and pneumatic structures, the dried plate can be accurately dialed to the conveyor belt that uses the servo technology for feeding and printing. It is fast and reliable.
6. Single-station dish collection technology can quickly changeover for different specifications of products.
7. FFU is for your optional.
8 With the equipment operation monitoring function. The operation condition of the main parts of the machine has a dynamic display on the HMI, which makes the operation state of the machine clear at a glance, easy to operate and maintain. When the machine is in a state of alarm, in addition to the sound and light alarm, the dynamic display alarm position and cause can be displayed on the HMI.
9 The whole line is made of intelligent control, the upstream and downstream stations running are with interlocking control function.
10 Most parts are made of stainless steel SUS 304#, aluminum alloy material, etc. and the filling needle made of 316L material, in line with the pharmaceutical enterprises GMP requirements and other industry products packaging requirements.



3. Technical features



Items Description
Distribution line working channel 6 lanes
Freezing time 3~5 minutes
Petri dish feeding method Petri dish rack. When you change different sizes of dish, you need change the rack.
Metering method Peristaltic pump
Dispensing accuracy ±1~3%
Working environment requirement FFU and HEPA
Production capacity 2000 pcs/hour
Inkjet printer Customer prepare
Machine material of machine The main body is SU304, anodized aluminum alloy and polymer materials. The contact part with liquid is 316L stainless steel or nontoxic polymer material.
Voltage 220V 50Hz
Power 2.5 KW
Compressed air 0.4~0.8Mpa
