Product Details
Place of Origin: Jiangsu, China
Brand Name: PERWIN
Certification: CE, SGS, TUV, ISO9001
Model Number: PW-HX210
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Packaging Details: Standard export woodern cases
Delivery Time: 60~90 working days
Payment Terms: T/T, L/C
Supply Ability: 5 sets/months
Production Name: |
Biochemistry Reagent Filling Machine For Wedge-shaped Or Square Bottles |
Filling Volume(range): |
60ml |
Filling Method: |
Linear Type Peristaltic Pump |
Filling Accuracy: |
±1~2% |
Capacity: |
15~20 Bottles Per Minute |
Power Supply: |
380V 50Hz(can Be Customized) |
Power: |
3KW |
Compressed Air: |
0.4~0.7Mpa 25~35L/min |
Production Name: |
Biochemistry Reagent Filling Machine For Wedge-shaped Or Square Bottles |
Filling Volume(range): |
60ml |
Filling Method: |
Linear Type Peristaltic Pump |
Filling Accuracy: |
±1~2% |
Capacity: |
15~20 Bottles Per Minute |
Power Supply: |
380V 50Hz(can Be Customized) |
Power: |
3KW |
Compressed Air: |
0.4~0.7Mpa 25~35L/min |

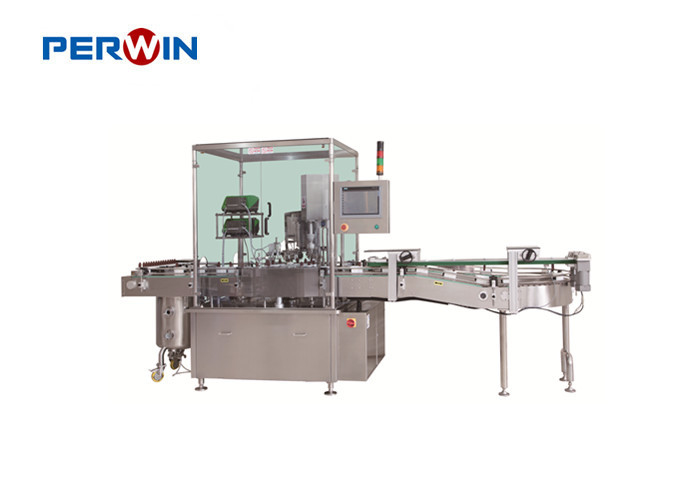

Biochemistry Reagent Filling Machine For Wedge Shaped Or Square Bottles
1. Brief introduction.
2. Working process:
2.1. Filling capping machine.
2.2. Check weigher.
2.3. Labeling machine.
3. Technical features.
3.1. Filling and capping machine
3.1.1. Features.
3.1.2. Parameters
Item | Model and Specification |
Model | PW-HX210 |
Filling volume(range) | 25ml, 60ml, 100ml |
Filling Method | Linear type peristaltic pump. |
Filling Accuracy | ±1~2% |
Capacity | 10~20 bottles per minute |
Power Supply | 380V 50Hz(can be customized) |
Power | 3KW |
Compressed Air | 0.4~0.7Mpa 25~35L/min |
3.1.3. Main configuration:
Items | Brand | From |
PLC | Siemens | Germany |
Touch screen | Fuji | Japan |
VFD | Mitsubishi | Japan |
Photoelectric sensor | OMRON and SICK | Japan and Germany |
Pneumatic components | SMC | Japan |
Main motor | ABB | Swiss |
Other motors | Domestic | China |
3.2. Labeling machine.
PW-T501 (third generation) Labeling Machine adopts the international top high-speed servo Labeling technology, Labeling system, locating system,brushing system, control system,conveyor system as the perfect combination. This makes Perwin Labeling technology more precise and more stable.
3.2.1. Features.
3.2.2. Parameters
Product name | Round bottle labeling machine |
Model | PW-T501 |
Labeling Appliance | 60ml bottles |
Speed | Above 80 bottles/min |
Accuracy | ±0.5mm |
Label roll outer diameter | ≤375mm |
Label roll inner diameter | 76mm |
