Product Details
Place of Origin: Jiangsu, China
Brand Name: PERWIN
Certification: CE, SGS, TUV, ISO9001
Model Number: PW-HX
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Packaging Details: Standard export woodern cases
Delivery Time: 60~90 working days
Payment Terms: T/T, L/C
Supply Ability: 5 sets/months
Production Name: |
Mini Size 10heads Stainless Steel Vial Liquid Filling Machine Automatic |
Filling Volume(range): |
1~10ml |
Filling Method: |
Plunger Pump |
Filling Accuracy: |
≤1% |
Capacity: |
200~250 Bottles Per Minute |
Power Supply: |
380V 50Hz(can Be Customized) |
Power: |
3KW |
Compressed Air: |
0.4~0.8Mpa 25~35L/min |
Condition: |
New |
Packaging Material: |
Wood |
Application: |
Chemical,Medical |
Production Name: |
Mini Size 10heads Stainless Steel Vial Liquid Filling Machine Automatic |
Filling Volume(range): |
1~10ml |
Filling Method: |
Plunger Pump |
Filling Accuracy: |
≤1% |
Capacity: |
200~250 Bottles Per Minute |
Power Supply: |
380V 50Hz(can Be Customized) |
Power: |
3KW |
Compressed Air: |
0.4~0.8Mpa 25~35L/min |
Condition: |
New |
Packaging Material: |
Wood |
Application: |
Chemical,Medical |

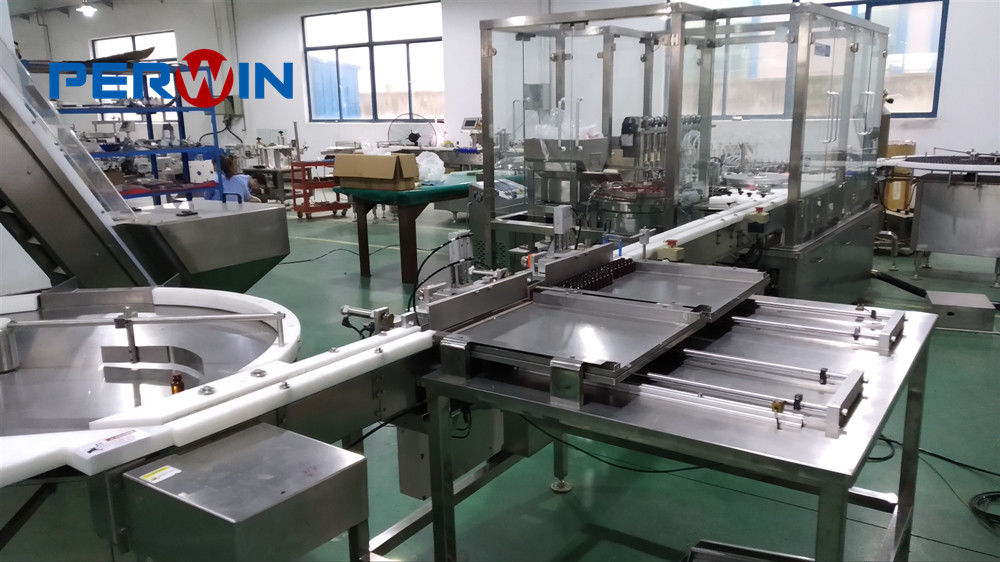

Stainless Steel Vial Filling Machine Mini Size 10 Heads ISO9001 Certification
2. Technical features.
2.1. Filling plugging and capping machine
2.1.1. Features.
2.1.2. Parameters
Item | Model and Specification |
Model | PW-HX |
Filling volume(range) | 5ml(1~10ml) |
Filling Method | plunger pump. |
Filling Accuracy | ±0.5~1% |
Capacity | 200~250 bottles per minute |
Power Supply | 380V 50Hz(can be customized) |
Power | 3KW |
Compressed Air | 0.4~0.8Mpa 25~35L/min |
2.1.3. Main configuration:
Items | Brand | From |
PLC | Siemens | Germany |
Touch screen | Fuji | Japan |
VFD | Mitsubishi | Japan |
Photoelectric sensor | OMRON and SICK | Japan and Germany |
Pneumatic components | SMC | Japan |
Main motor | ABB | Swiss |
Other motors | Domestic | China |
2.2. Labeling machine.
PW-T501D (third generation) Labeling Machine adopts the international top high-speed servo Labeling technology, Labeling system, locating system,brushing system, control system,conveyor system as the perfect combination. This makes Perwin Labeling technology more precise and more stable.
2.2.1. Features.
2.2.2. Parameters
Model | PW-WT501D |
Labeling Appliance | 15ml round bottle |
Speed | Above 200 bottles/min |
Accuracy | ±0.5mm |
Label roll outer diameter | ≤375mm |
Label roll inner diameter | 76mm |
Label Length | 10~200mm |
Label distance |
≥3 mm |
Power | 220V 50Hz(Can be customized) |
Rate |
1 KW |
Air Pressure |
0.4~0.7Mpa |
Note |
Upper parameters are just for reference |
2.2.3. Main configuration:
Item | Brand | Origin |
PLC | Siemens | Germany |
Touch screen | FUJI | Japan |
Server motor | Panasonic | Japan |
VFD | Mitsubishi | Japan |
Pneumatic components | SMC | Japan |
Bottle detecting sensor | OMRON | Japan |
Label detecting sensor | Leuze | Germany |
