High Efficiency Vial Filling Line / Circumferential Follow Up Filling Machine IVD Reagent

High Efficiency Vial Filling Line / Circumferential Follow Up Filling Machine IVD Reagent

Product Details:

Place of Origin: Jiangsu, China
Brand Name: PERWIN
Certification: CE, SGS, TUV, ISO9001
Model Number: PW-HX210

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Standard export woodern cases
Delivery Time: 60~90 working days
Payment Terms: T/T, L/C
Supply Ability: 5 sets/months
Get Best Price Contact Now

Detail Information

Production Name: Perwin High Efficiency Circumferential Follow-up Filling Machine IVD Reagent Filling Volume(range): 1~10ml
Filling Method: Plunger Pump Filling Accuracy: ±0.5~1%
Capacity: 200 Bottles Per Minute Power Supply: 400V 50Hz(can Be Customized)
Power: 3KW Compressed Air: 0.4~0.7Mpa 25~35L/min
Condition: New Warranty: 2 Years
Filling Material: Flowing Liquid
High Light:

vial liquid filling machine

,

syrup filling machine

Product Description





High Efficiency Vial Filling Line / Circumferential Follow Up Filling Machine IVD Reagent



1. Brief introduction.

  • This filling production line was designed by our own company with bottle feeding turntable, plunger pump filling, plug and cap, automatic plugging and capping mechanism, check weigher and labeling machine. This filling line stable running speed is 200 bottles/min. It is specially designed for 1ml~10ml bottle.



2. Technical features.



2.1. Filling plugging and capping machine



2.1.1. Features.

  • This machine layout is smart and compact which also adopted humanized design in terms of operating habits.
  • The operation interface is made of colorful LCD touch screen, and the whole machine system is controlled by PLC.
  • Precise CAM technology to take the cap for capping. The capping unit adopts servo technology to control the capping force. By changing the servo drive output parameters to change the rotate speed,ensures the torque of the screw cap is relatively constant. And the quantitative setting ,quantitative control are made to ensure that the cap is screwed properly on the bottles, and the torque of the cap is reliable and stable.
  • With the equipment operation monitoring function. The operation condition of the main parts of the machine has a dynamic display on the HMI, which makes the operation state of the machine clear at a glance, easy to operate and maintain. When the machine is in a state of alarm, in addition to the sound and light alarm, the dynamic display alarm position and cause can be displayed on the HMI.
  • The whole line is made of intelligent control, the upstream and downstream stations running are with interlocking control function.
  • Most parts are made of stainless steel SUS 304#, aluminum alloy material, etc. and the filling needle made of 316L material(can be plastic if customer need), in line with the pharmaceutical enterprises GMP requirements and other industry products packaging requirements.
  • 100 purification laminar flow hood against GMP requirements (This is for your optional).

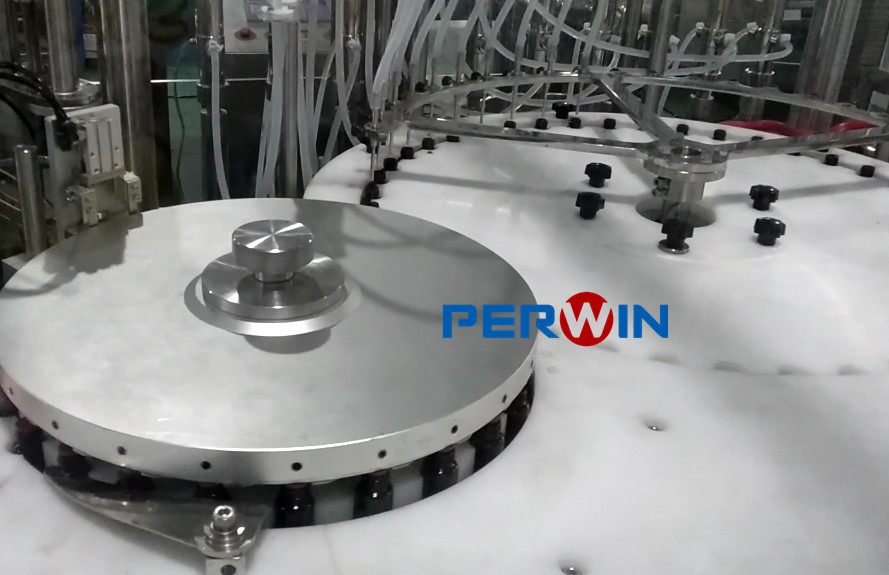

High Efficiency Vial Filling Line / Circumferential Follow Up Filling Machine IVD Reagent 0



2.1.2. Parameters

Item Model and Specification
Model PW-HX210
Filling volume(range) 5ml~10ml
Filling Method Linear type peristaltic pump.
Filling Accuracy ±0.5~1%
Capacity 200 bottles per minute
Power Supply 400V 50Hz(can be customized)
Power 3KW
Compressed Air 0.4~0.7Mpa 25~35L/min



2.1.3. Main configuration:

Items Brand From
PLC Siemens Germany
Touch screen Fuji Japan
VFD Mitsubishi Japan
Photoelectric sensor OMRON and SICK Japan and Germany
Pneumatic components SMC Japan
Main motor ABB Swiss
Other motors Domestic China



3. Key Features of labeling machine:

  • This machine adopts the Japanese MITSUBISHI PLC program control, using the human-machine interface (HMI) operation.
  • The servo motor driving for label feeding, adopts three-phase AC motor driving for the conveyer belt, and the transmission speed can be chosen from 1-8 grade, servo motor and conveyor belt motor has been carried out speed matching, Users only need to choose the speed level, easy to operate, can ensure the performance of the machine stable.
  • The machine has the functions of label feeding when there is bottle, label omitting detecting, start and stop of printing, and capacity counting etc.
  • There is labeling mode and setting mode on the operating interface, with the text illustration for operation and troubleshooting.
  • Friendly operation interface, easy to operate and find.
