Oral Suspension Liquid Filling Sealing Machine ISO9001 Certification

Product Details

Place of Origin: Jiangsu, China

Brand Name: PERWIN

Certification: CE, SGS, TUV, ISO9001

Model Number: PW-G14

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: Standard export woodern cases

Delivery Time: 60~90 working days

Payment Terms: T/T, L/C

Supply Ability: 5 sets/months

Get Best Price
Contact Now
Specifications
Highlight:

syrup filling machine

,

liquid filling capping machine

Production Name:
Best Price Oral Suspension Liquid Filling Sealing Machine Made In Shanghai
Filling Volume(range):
60ml, 100ml, 250ml
Filling Method:
Peristaltic/plunger/piston Pump
Filling Accuracy:
±0.5~1%
Capacity:
30~200 Bottles Per Minute
Power Supply:
380V 50Hz(can Be Customized)
Power:
4KW
Compressed Air:
0.5~0.8Mpa 35~50L/min
Production Name:
Best Price Oral Suspension Liquid Filling Sealing Machine Made In Shanghai
Filling Volume(range):
60ml, 100ml, 250ml
Filling Method:
Peristaltic/plunger/piston Pump
Filling Accuracy:
±0.5~1%
Capacity:
30~200 Bottles Per Minute
Power Supply:
380V 50Hz(can Be Customized)
Power:
4KW
Compressed Air:
0.5~0.8Mpa 35~50L/min
Description
Oral Suspension Liquid Filling Sealing Machine ISO9001 Certification





Oral Suspension Liquid Filling Sealing Machine ISO9001 Certification



1. Brief introduction.

  • PERWIN adopts advanced design philosophy and principle of work, which has been putting into practice by numerous professional clients. The technical parameters were also improved and integrated step by step, which makes our oral liquids filling production line more perfect and reliable. This production line can be applied to fill various oral liquids like syrup, oral suspension, soft extract, tincture, mixture and so on.
  • The production lines are designed according to client's technical requirements.
  • Provide CIP system according to customers' requirement.





2. Technical features.



2.1. Filling plugging and capping machine



2.1.1. Features.

  • Operation mode: production mode and testing jogging mode.
  • This machine use multi-SUS/ceramic piston cylinder for one time filling of the required volume, therefore, has very high filling accuracy.
  • Changing different specs of bottles by only adjusting the width of guardrail, the bottle mouth positioning distance of dovetail groove of filling station, and adjusting the filling volume or changing for another metering cylinder
  • While the machine working, filling nozzles will fill with nozzles moving down and up, avoiding foaming and splashing.
  • If the filling nozzles deviate from bottle mouth, the machine will alarm and stop working.
  • No bottles, bottles falling down, bottles not in position, lack of bottles will alarm and stop working.
  • Designing the positioning mechanism according to bottle shape to ensure filling nozzles positioning accurately and stably.
  • Unique liquid input and output check valve and precise machining method makes for no leakage while filling.
  • Has the function of machine running monitoring. The machine key parts running condition can be displayed on the HMI, which make the operator easy to understand while operating and maintaining.
  • While the machine alarming, except the sound and light alarming, you can also see the dynamic displaying on the HMI for alarming place and alarming causes. Whole machine is interlock intelligent controlling, up and down stream machine has interlock controlling function.
  • The machine frame use SUS304 and the material contacting parts use SUS316L, which in accordance with GMP standard. Customer also can choose acrylic sheet protective cover.

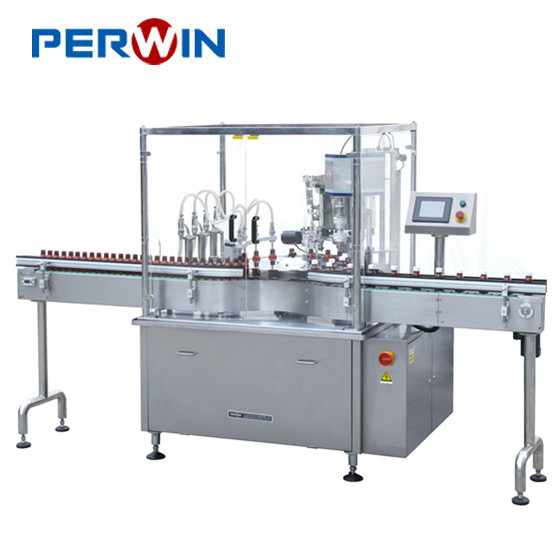

Oral Suspension Liquid Filling Sealing Machine ISO9001 Certification 0



2.1.2. Parameters

Item Model and Specification
Model PW-G14
Filling volume(range) 60ml, 100ml, 250ml
Filling Method peristaltic/plunger/piston pump
Filling Accuracy ±0.5~1%
Capacity 30~200 bottles per minute
Power Supply 380V 50Hz(can be customized)
Power 4KW
Compressed Air 0.5~0.8Mpa 35~50L/min



2.1.3. Main configuration:

Items Brand From
PLC Siemens Germany
Touch screen Fuji Japan
VFD Mitsubishi Japan
Photoelectric sensor OMRON and SICK Japan and Germany
Pneumatic components SMC Japan
Main motor ABB Swiss
Other motors Domestic China



2.2. Labeling machine.

PW-T501 (third generation) Labeling Machine adopts the international top high-speed servo Labeling technology, Labeling system, locating system,brushing system, control system,conveyor system as the perfect combination. This makes Perwin Labeling technology more precise and more stable.



2.2.1. Features.

  • The Labeling system can be monitored through the colorful touch screen.
  • This Labeling machine is with muti-step speed control system. You can choose the Labeling speed by clicking the speed control function precisely and rapidly.
  • The Labeling machine is with initial position setting function. However big the Labeling diameter is and whatever length the label might be. You can start setting the initial position on the touch screen or you can input the known parameter directly before running the machine.
  • The Labeling machine adapts the Labeling delay function. The Labeling position could be adjusted slightly which makes the Labeling quality better.
  • The Labeling machine adapts the counting function. The product qty could be calculated automatically and this can be seen on the human-computer interface.
  • The Labeling machine adapts the Labeling qty setting function. You can pre-set the Labeling qty, then the machine stops running after this qty reaches.
  • The Labeling rolling,pasting system could be adjusted up and down ,left and right. This is good for other dimension Labeling use.
  • The machine is equipped with the operation monitoring function. The main process and machine running status can be shown on the LED touch screen which makes the operator well know the machine status and easy to operate and maintenanc
  • The production line is intelligent controlled entirely. The earlier process and the later process could be controlled like a chain.
  • Most components adopt the SUS 304 and aluminum alloy which conforms to the medical corporations GMP requirement and other Packaging requirement.

2.2.2. Parameters

Model PW-WT501
Labeling Appliance round bottle
Speed  0~450 bottles/min
Accuracy ±0.5mm
Label roll outer diameter ≤375mm
Label roll inner diameter 76mm
Label Length 10~200mm

Label distance

≥3 mm
Power 220V 50Hz(Can be customized)
Rate

1 KW

Air Pressure

0.4~0.7Mpa

Note

Upper parameters are just for reference



2.2.3. Main configuration:

Item Brand Origin
PLC Siemens Germany
Touch screen FUJI Japan
Server motor Panasonic Japan
VFD Mitsubishi Japan
Pneumatic components SMC Japan
Bottle detecting sensor OMRON Japan
Label detecting sensor Leuze Germany
