High Speed Syrup Filling And Capping Machine , Syrup Filling Line
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | PERWIN |
| Certification: | CE, SGS, TUV, ISO9001 |
| Model Number: | PW-HGSX422 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Standard export woodern cases |
| Delivery Time: | 60~90 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5 sets/months |
|
Detail Information |
|||
| Production Name: | Factory Price High Speed Syrup Filling And Capping Machine,syrup Filling Line | Filling Volume(range): | 30ml |
|---|---|---|---|
| Filling Method: | Ceramic Pump | Filling Accuracy: | ±0.5~1% |
| Capacity: | 60~80 Bottles Per Minute | Power Supply: | 380V 50Hz(can Be Customized) |
| Power: | 2KW | Compressed Air: | 0.4～0.7Mpa 25～35L/min |
| Warranty: | 1 Year | ||
| High Light: | liquid filling capping machine,bottle filling production line |
||
Product Description
High Speed Syrup Filling And Capping Machine , Syrup Filling Line
1. Brief introduction.
- This filling production line was designed by our own company with automatic bottle unscrambler, air cleaning machine, ceramic pump filling, plug and cap sorting vibratory disk, automatic plugging and capping mechanism, automatic inspection screen(Optional) and labeling machine. This filling line stable running speed is 60~80 bottles/min. It is specially designed for 30ml round oral liquid bottle.
2. Working process:
2.1. Automatic bottle unscrambler.
The unscramble machine adopt leading design of mechanical structure and electronic, through professional and technical parameters of the actual application integration from large numbers of users, which make it perfect and stably.
| Model | PW-LP80 |
| Bottle specs | Depending on customers requirement |
| Capacity | Around 80BPM(Take 30ml bottle as an example) |
| Voltage | AC220V,50Hz(Can be customized) |
| Power | 1.8 KW |
| Compressed air | 0.5～0.8Mpa 35～50L/min |
| Weight | 800 Kg |
| Dimension(W×D×H) | 1600×800×1200 (mm)(please check the drawing) |
2.2. Bottle cleaning machine with UV light tunnel.
The PET and glass bottle air cleaning machine adopt the home and abroad advanced working principle and mechanical structure as well as electrical design, to ensure dust cleaning reliable and stably.

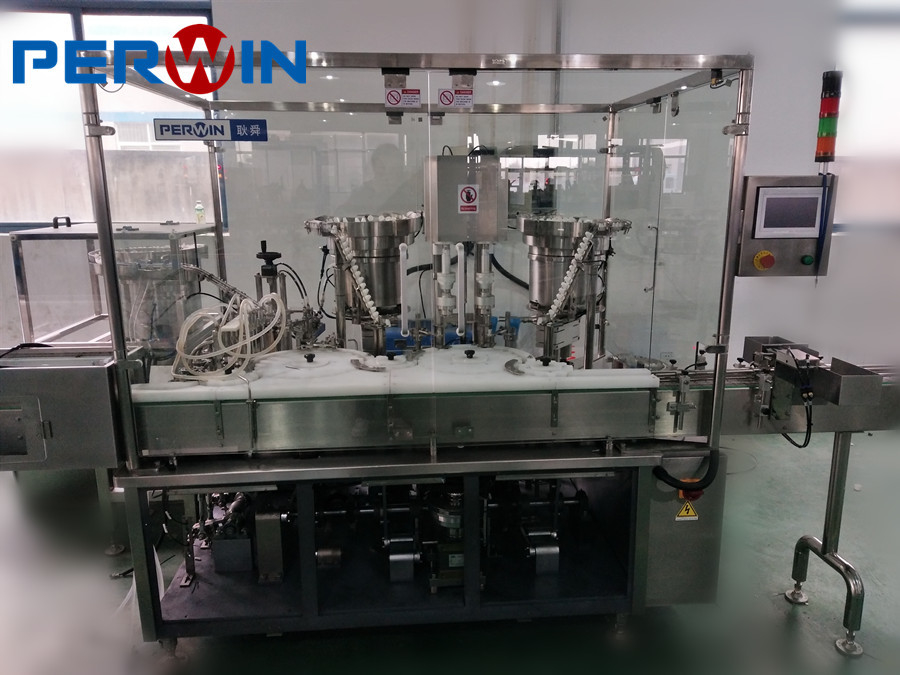

2.3. Filling plugging capping machine.
When the bottles come to the star wheel, the machine will start filling plugging and capping process. The whole fillling system is controlled by one main drive of 4 ceramic pumps. 2 plugging heads and 2 screw capping head.
| Item | Model and Specification |
| Model | PW-HGSX422 |
| Filling Range | 30ml |
| Filling Method | Ceramic pump. |
| Filling Accuracy |
±1%(±0.5% is for your optional)
|
| Capacity | 60~80 bottles per minute |
| Power Supply | 380V 50Hz(can be customized) |
| Power |
2KW 2.0Kw
|
| Compressed Air | 0.4～0.7Mpa 25～35L/min |
2.4. Inspection machine.(We leave space for customer, customer will install)
When the bottles transported to the inspection area, workers will check bottles and find out defect ones through eyes with lumination light, 800 lux. Black background and white background is optiaonal.
2.5. Labeling machine.
After inspection machine, the bottles will be delivered to vertical type round bottle labeling machine, which will finish sticker labeling. (printing the batch number, production date, expiration date etc. is for your optional)
