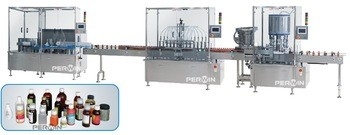

30ml Syrup Filling Machine Capping And Labeling Production Line

Product Description

30ml Syrup Filling Machine Capping And Labeling Production Line

1. Brief introduction.

• This filling production line was designed by our own company with automatic bottle unscrambler, air cleaning machine, ceramic pump filling, plug and cap sorting vibratory disk, automatic plugging and capping mechanism, automatic inspection screen(Optional) and labeling machine. This filling line stable running speed is 60~80 bottles/min.

2. Features :

• 4 head ceramic pump filling, 2 heads plugging and 2 heads screw capping.
• Special design to align the cap and plug to make sure there are no collision between each other.
• This machine layout is smart and compact which also adopted humanized design in terms of operating habits.
• The operation interface is made of colorful LCD touch screen, and the whole machine system is controlled by PLC.
• With the equipment operation monitoring function. The operation condition of the main parts of the machine has a dynamic display on the HMI, which makes the operation state of the machine clear at a glance, easy to operate and maintain. When the machine is in a state of alarm, in addition to the sound and light alarm, the dynamic display alarm position and cause can be displayed on the HMI.
• The whole line is made of intelligent control, the upstream and downstream stations running are with interlocking control function.
• Most parts are made of stainless steel SUS 304#, aluminum alloy material, etc. and the filling needle made of 316L material, in line with the pharmaceutical enterprises GMP requirements and other industry products packaging requirements.
• 100 purification laminar flow hood against GMP requirements (This is for your optional).

2.1. Automatic bottle unscrambler.

The unscramble machine adopt leading design of mechanical structure and electronic, through professional and technical parameters of the actual application integration from large numbers of users, which make it perfect and stably.

2.2. Bottle cleaning machine with UV light tunnel.

The PET and glass bottle air cleaning machine adopt the home and abroad advanced working principle and mechanical structure as well as electrical design, to ensure dust cleaning reliable and stably.

2.3. Filling plugging capping machine.

When the bottles come to the star wheel, the machine will start filling plugging and capping process. The whole fillling system is controlled by one main drive of 4 ceramic pumps. 2 plugging heads and 2 screw capping head.


2.4. Inspection machine.(We leave space for customer, customer will install)

When the bottles transported to the inspection area, workers will check bottles and find out defect ones through eyes with lumination light, 800 lux. Black background and white background is optiaonal.

2.5. Labeling machine.

After inspection machine, the bottles will be delivered to vertical type round bottle labeling machine, which will finish sticker labeling. (printing the batch number, production date, expiration date etc. is for your optional)

3. Features configuration
