Product Details
Place of Origin: Jiangsu, China
Brand Name: PERWIN
Certification: CE, SGS, TUV, ISO9001
Model Number: PW-HGSX
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Packaging Details: Standard export woodern cases
Delivery Time: 60~90 working days
Payment Terms: T/T, L/C
Supply Ability: 5 sets/months
Production Name: |
12 Heads High Speed Oral Suspension Automatic Liquid Filling And Capping Machine |
Filling Volume(range): |
5~50ml |
Filling Method: |
Peristaltic/plunger/piston Pump |
Filling Accuracy: |
±0.5~1% |
Capacity: |
80~200 Bottles Per Minute |
Power Supply: |
380V 50Hz(can Be Customized) |
Power: |
4KW |
Compressed Air: |
0.5~0.8Mpa 35~50L/min |
Warranty: |
1 Year |
Production Name: |
12 Heads High Speed Oral Suspension Automatic Liquid Filling And Capping Machine |
Filling Volume(range): |
5~50ml |
Filling Method: |
Peristaltic/plunger/piston Pump |
Filling Accuracy: |
±0.5~1% |
Capacity: |
80~200 Bottles Per Minute |
Power Supply: |
380V 50Hz(can Be Customized) |
Power: |
4KW |
Compressed Air: |
0.5~0.8Mpa 35~50L/min |
Warranty: |
1 Year |

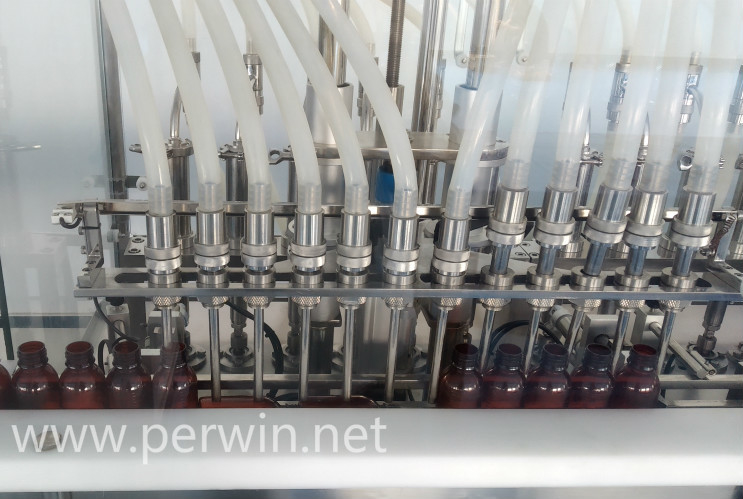

12 Heads Oral Liquid Filling Machine High Speed Oral Suspension
1. Brief introduce
PERWIN adopts advanced design philosophy and principle of work, which has been putting into practice by numerous professional clients. The technical parameters were also improved and integrated step by step, which makes our oral liquids filling production line more perfect and reliable. This production line can be applied to fill various oral liquids like syrup, oral suspension, soft extract, tincture, mixture and so on.
2. Components of Production Line:
* Production procedure for PET plastic bottle:
* Customized contents of production line according to user requirements;
* Providing the Cleaning in Place (CIP) and configuration;
3. The Features
Special design to align the cap and plug to make sure there are no collision between each other.
This machine layout is smart and compact which also adopted humanized design in terms of operating habits.
The operation interface is made of colorful LCD touch screen, and the whole machine system is controlled by PLC.
With the equipment operation monitoring function. The operation condition of the main parts of the machine has a dynamic display on the HMI, which makes the operation state of the machine clear at a glance, easy to operate and maintain. When the machine is in a state of alarm, in addition to the sound and light alarm, the dynamic display alarm position and cause can be displayed on the HMI.
The whole line is made of intelligent control, the upstream and downstream stations running are with interlocking control function.
Most parts are made of stainless steel SUS 304#, aluminum alloy material, etc. and the filling needle made of 316L material, in line with the pharmaceutical enterprises GMP requirements and other industry products packaging requirements.
100 purification laminar flow hood against GMP requirements (This is for your optional).
4. Production capacity:
80~120 bottles/Min 120~160 bottles/Min.
5. Machine working process
6.Main configuration:
Items | Brand | From |
PLC | Siemens | Germany |
Touch screen | Fuji | Japan |
VFD | Mitsubishi | Japan |
Photoelectric sensor | OMRON and SICK | Japan and Germany |
Pneumatic components | SMC | Japan |
Main motor | ABB | Swiss |
Other motors | Domestic | China |
