Plastic Ampoule Oral Liquid Filling Machine And Sealing Machine CE Certification

Product Details

Place of Origin: Jiangsu, China

Brand Name: PERWIN

Certification: CE, SGS, TUV, ISO9001

Model Number: PW-HGSX422

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: Standard export woodern cases

Delivery Time: 60~90 working days

Payment Terms: T/T, L/C

Supply Ability: 5 sets/months

Get Best Price
Contact Now
Specifications
Highlight:

liquid filling capping machine

,

bottle filling production line

Production Name:
Automatic Plastic Ampoule Oral Liquid Filling And Sealing Machine China
Filling Volume(range):
5~30ml
Filling Method:
Ceramic Pump
Filling Accuracy:
± 0.5~1%
Capacity:
80~200 Bottles Per Minute
Power Supply:
380V 50Hz(can Be Customized)
Power:
2KW
Compressed Air:
0.5~0.8Mpa 35~50L/min
Production Name:
Automatic Plastic Ampoule Oral Liquid Filling And Sealing Machine China
Filling Volume(range):
5~30ml
Filling Method:
Ceramic Pump
Filling Accuracy:
± 0.5~1%
Capacity:
80~200 Bottles Per Minute
Power Supply:
380V 50Hz(can Be Customized)
Power:
2KW
Compressed Air:
0.5~0.8Mpa 35~50L/min
Description
Plastic Ampoule Oral Liquid Filling Machine And Sealing Machine CE Certification





Plastic Ampoule Oral Liquid Filling Machine And Sealing Machine CE Certification



1. Brief introduction.

  • PERWIN adopts advanced design philosophy and principle of work, which has been putting into practice by numerous professional clients. The technical parameters were also improved and integrated step by step, which makes our oral liquids filling production line more perfect and reliable. This production line can be applied to fill various oral liquids like syrup, oral suspension, soft extract, tincture, mixture and so on.



  • The production lines are designed according to client's technical requirements.
  • Provide CIP system according to customers' requirement.

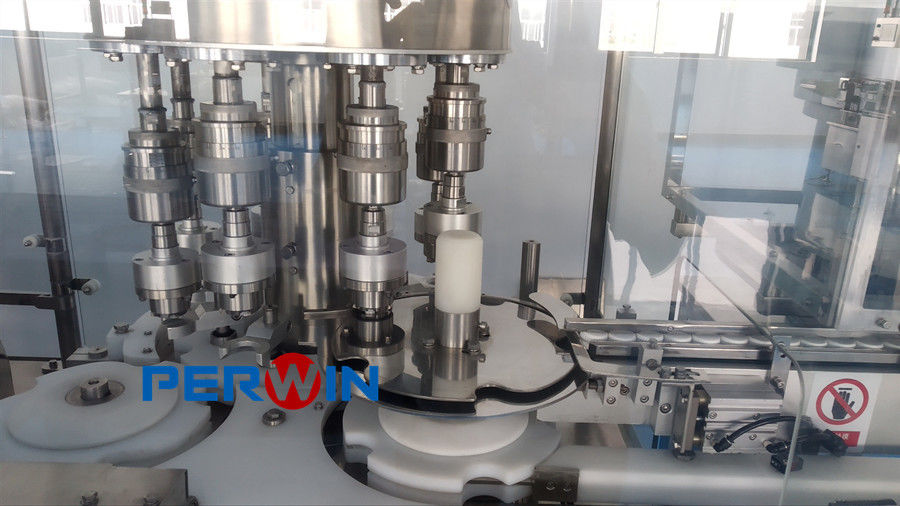

Plastic Ampoule Oral Liquid Filling Machine And Sealing Machine CE Certification 0



2. Technical features.



2.1. Filling plugging and capping machine



2.1.1. Features.

  • Operation mode: production mode and testing jogging mode.
  • This machine use multi-SUS/ceramic piston cylinder for one time filling of the required volume, therefore, has very high filling accuracy.
  • Changing different specs of bottles by only adjusting the width of guardrail, the bottle mouth positioning distance of dovetail groove of filling station, and adjusting the filling volume or changing for another metering cylinder
  • While the machine working, filling nozzles will fill with nozzles moving down and up, avoiding foaming and splashing.
  • If the filling nozzles deviate from bottle mouth, the machine will alarm and stop working.
  • No bottles, bottles falling down, bottles not in position, lack of bottles will alarm and stop working.
  • Designing the positioning mechanism according to bottle shape to ensure filling nozzles positioning accurately and stably.
  • Unique liquid input and output check valve and precise machining method makes for no leakage while filling.
  • Has the function of machine running monitoring. The machine key parts running condition can be displayed on the HMI, which make the operator easy to understand while operating and maintaining.
  • While the machine alarming, except the sound and light alarming, you can also see the dynamic displaying on the HMI for alarming place and alarming causes. Whole machine is interlock intelligent controlling, up and down stream machine has interlock controlling function.
  • The machine frame use SUS304 and the material contacting parts use SUS316L, which in accordance with GMP standard. Customer also can choose acrylic sheet protective cover.



Plastic Ampoule Oral Liquid Filling Machine And Sealing Machine CE Certification 1





2.1.2. Parameters



Item Model and Specification
Model

PW-HGSX422

Filling volume(range) 5~30ml
Filling Method ceramic pump
Filling Accuracy ±0.5~1 %
Capacity 80~200 bottles per minute
Power Supply 380V 50Hz(can be customized)
Power 2KW
Compressed Air 0.5~0.8Mpa 35~50L/min





2.1.3. Main configuration:

Items Brand From
PLC Siemens Germany
Touch screen Fuji Japan
VFD Mitsubishi Japan
Photoelectric sensor OMRON and SICK Japan and Germany
Pneumatic components SMC Japan
Main motor ABB Swiss
Other motors Domestic China





Plastic Ampoule Oral Liquid Filling Machine And Sealing Machine CE Certification 2
