Automatic Oral Liquid Filling And Sealing Machine Labeling Product Line

Automatic Oral Liquid Filling And Sealing Machine Labeling Product Line

Product Details:

Place of Origin: Jiangsu, China
Brand Name: PERWIN
Certification: CE, SGS, TUV, ISO9001
Model Number: PW-HGSX422

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Standard export woodern cases
Delivery Time: 60~90 working days
Payment Terms: T/T, L/C
Supply Ability: 5 sets/months
Get Best Price Contact Now

Detail Information

Production Name: Automatic Oral Liquid Filling And Sealing Machine Labeling Product Line Filling Volume(range): 30ml
Filling Method: Ceramic Pump Filling Accuracy: ±1%
Capacity: 80 Bottles Per Minute Power Supply: 380V 50Hz(can Be Customized)
Power: 2KW Compressed Air: 0.4~0.7Mpa 25~35L/min
Condition: New
High Light:

syrup filling machine


liquid filling capping machine

Product Description

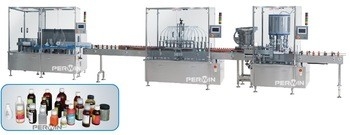

Automatic Oral Liquid Filling And Sealing Machine Labeling Product Line


1. Brief introduction.

  • This filling production line was designed by our own company with automatic bottle unscrambler, air cleaning machine, ceramic pump filling, plug and cap sorting vibratory disk, automatic plugging and capping mechanism, automatic inspection screen(Optional) and labeling machine. This filling line stable running speed is 60~80 bottles/min.


2. Features :


  • Filling accuracy: down to ±1%, depending on product and dispense volumes.
  • Filling speed: 60~80 bottles per minute at 30 ml; fill speeds proportional to fill volume. Label machine: Sticker labeling machine.
  • Label machine: Sticker labeling machine.

2.1. Automatic bottle unscrambler.


The unscramble machine adopt leading design of mechanical structure and electronic, through professional and technical parameters of the actual application integration from large numbers of users, which make it perfect and stably.


2.2. Bottle cleaning machine with UV light tunnel.


The PET and glass bottle air cleaning machine adopt the home and abroad advanced working principle and mechanical structure as well as electrical design, to ensure dust cleaning reliable and stably.


2.3. Filling plugging capping machine.


When the bottles come to the star wheel, the machine will start filling plugging and capping process. The whole fillling system is controlled by one main drive of 4 ceramic pumps. 2 plugging heads and 2 screw capping head.


Item Model and Specification
Model PW-HGSX422
Filling Range 30ml
Filling Method Ceramic pump.
Filling Accuracy

±1%(±0.5% is for your optional)


Capacity 60~80 bottles per minute
Power Supply 380V 50Hz(can be customized)





Compressed Air 0.4~0.7Mpa 25~35L/min


2.4. Inspection machine.(We leave space for customer, customer will install)


When the bottles transported to the inspection area, workers will check bottles and find out defect ones through eyes with lumination light, 800 lux. Black background and white background is optiaonal.


2.5. Labeling machine.


After inspection machine, the bottles will be delivered to vertical type round bottle labeling machine, which will finish sticker labeling. (printing the batch number, production date, expiration date etc. is for your optional)

Model PW-TD531
Labeling Appliance 30ml PET and glass bottles.
Speed 80~200 bottles/min(depending on bottles shapes)
Accuracy ±0.5mm
Label roll outer diameter ≤375mm
Label roll inner diameter 76mm
Label Length 10~200mm
Label distance ≥3 mm
Power 220V 50Hz(Can be customized)

2 KW



2.0 Kw


Air Pressure




Upper parameters are just for reference
