75ml Spray Filling Machine Cleaning Fluid Spraying Bottle TUV Certification

75ml Spray Filling Machine Cleaning Fluid Spraying Bottle TUV Certification

Product Details:

Place of Origin: Jiangsu, China
Brand Name: PERWIN
Certification: CE, SGS, TUV, ISO9001
Model Number: PW-PGXY8088

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Standard export woodern cases
Delivery Time: 60~90 working days
Payment Terms: T/T, L/C
Supply Ability: 5 sets/months
Get Best Price Contact Now

Detail Information

Production Name: Automatic Filling Machine For Insecticide Spray / Cosmetic / Pharmaceutical Filling Volume(range): 30, 75ml
Filling Method: Piston Pump Filling Accuracy: ±1%
Capacity: 80 Bottles Per Minute Power Supply: 400V 50Hz(can Be Customized)
Power: 1.8 KW Compressed Air: 0.4~0.6Mpa ,25~35L/min
Warranty: 1 Year
High Light:

spray filling line

,

bottle filling production line

Product Description





75ml Spray Filling Machine Cleaning Fluid Spraying Bottle TUV Certification





1. Brief introduction

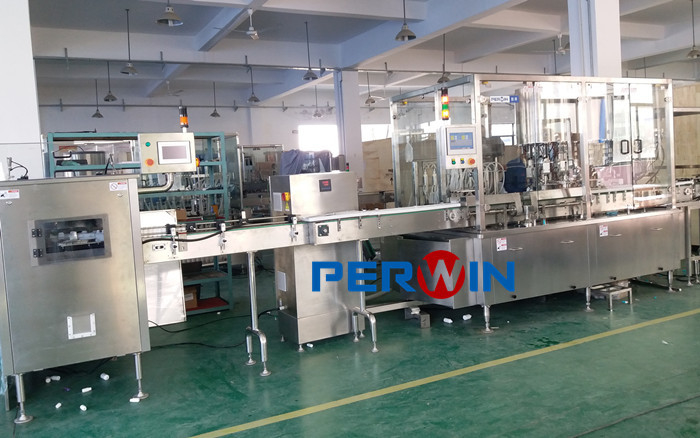

This high speed spray bottle filling and capping production line was designed by our own company with automatic bottle unscrambler, 8 filling heads continuously rotary follow-up filling machine, 8 heads rotary adding cap machine and 8 heads rotary capping machine(push type & screw type bottle). Filling and capping are designed in one monoblock machine. This production line stable running speed is around 80 bottles/min.

It is specially designed for 30ml and 75ml screw type and push type bottle arranging filling and capping.



2. Working process:


2.1. Automatic bottle arranging machine



Put the disordered bottles into the storage bin of bottle unscrambler, and the lifting conveyor will send the bottles into mainframe of bottle unscrambler, that is rotary type bottle unscrambler. Firstly, the disordered bottles will be arranged to horizontal condition by specially made turntable rotating. At the outlet of the conveyor, there is soft rotating mechanism continuously sweeping the bottles down to ensure the unobstructed outlet. The bottles will be transferred to bottles sending clamping conveyor belt through special outlet.



2.2. Automatic filling and capping machine



No. Items Automatic Filling and Capping Machine
1 Model

PW-PGXY8088



2 Bottle shape 2 types of round bottles
3 Filling speed Around 80BPM
4 Bottles feed in type Automatic bottle unscrambler
5 Filling method 8 heads SUS 316L piston cylinder rotary type continuous follow-up filling.
6 Buffering vessel 80L, SUS316L
7 Filling accuracy ±1%
8 2 types of bottles

Two types of caps

Bottles diameters are different. (30ml and 75ml)

Need to change the rotary table and fence etc.

9 Cap sorting method Vibrating disk (according to samples)
10 Cap taking method Mechanical arm drawing cap, transferring cap, Cam controlling (according to samples)
11 Capping method 8 heads rotary type capping, servo controlling, twisting and pressing is adjustable
12 Capping head 8 heads
13 Power

Bottle feeding turntable:230V

Filling capping machine:400V

14 Compressed air 0.4~0.6Mpa ,25~35L/min
15 Safety protection Strong glass cover was installed, when opening the glass cover, the machine will alarm and stop working, which can protect the operator from being injured by the machine.
16 Dimension Please see the machine drawing



2.2.1. Filling



Adopt 8 groups precise Servo drive 316L piston cylinder for rotary type continuously follow-up filling method.



2.2.2. Screw capping & push capping.



A. Adopt automatic cap unscrambler.



B. Cap unscrambler will put the disordered caps in position with right direction.



C. 8 heads cap placing mechanism.



D. 8 heads cap screwing & cap pushing mechanism.



E. Three groups of compact CAM drive the mechanical arm to take, send, and screw caps or push caps automatically.



F. Flexible screw capping mechanism do not damage and make any scratches on the caps.



G. Adopt original technology of precise CAM mechanism for bottle fixing.



H. Servo technology controlling the twisting force of pump head.



I. Detect and reject automatically the defective bottles. (optional function)



3. Technical features.



4. Main configuration:



4.1 Automatic bottle arranging machine



Items Brand From
PLC Siemens Germany
Frequency converter Schneider France
Color touch screen Fuji Japan
Pneumatic components

AirTAC,CHELIC

For (SMC or Festo, please check optional)

Taiwan
Bottle detect sensor OMRON Japan
Speed controlling motor JWD Germany tech China



4.2 Filling and capping machine



Items Brand From
PLC Siemens Germany
Frequency converter Schneider France
Color touchscreen FUJI Japan
Photoelectric sensor OMRON Japan
Pneumatic components

AirTAC,CHELIC

For (SMC or Festo, please check optional)

Taiwan
