Stainless Steel Spray Filling Machine Perfume Filling Packaging PW-PGXY8088
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | PERWIN |
| Certification: | CE, SGS, TUV, ISO9001 |
| Model Number: | PW-PGXY8088 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Standard export woodern cases |
| Delivery Time: | 60~90 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5 sets/months |
|
Detail Information |
|||
| Production Name: | PERWIN Perfume Filling Packaging Stainless Steel Machine Spray Filling Line | Filling Volume(range): | 30, 75ml |
|---|---|---|---|
| Filling Method: | Piston Pump | Filling Accuracy: | ±1% |
| Capacity: | 80 Bottles Per Minute | Power Supply: | 400V 50Hz(can Be Customized) |
| Power: | 1.8 KW | Compressed Air: | 0.4～0.6Mpa ，25～35L/min |
| Warranty: | 1 Year | ||
| High Light: | spray bottle filling machine,bottle filling production line |
||
Product Description
Stainless Steel Spray Filling Machine Perfume Filling Packaging PW-PGXY8088
1. Brief introduction

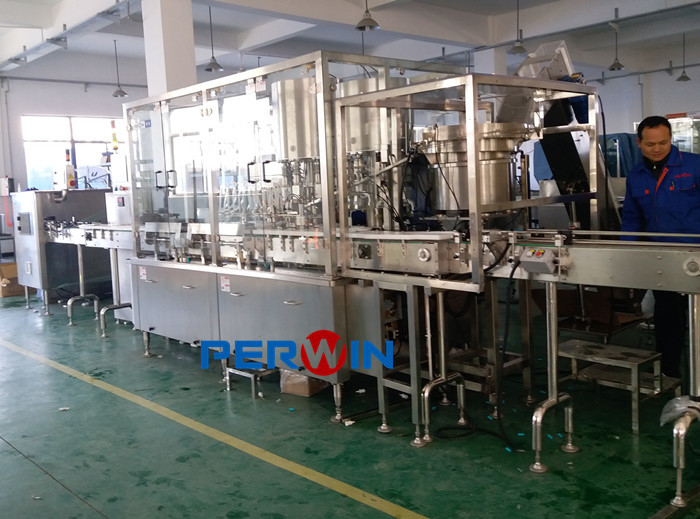

This high speed spray bottle filling and capping production line was designed by our own company with automatic bottle unscrambler, 8 filling heads continuously rotary follow-up filling machine, 8 heads rotary adding cap machine and 8 heads rotary capping machine(push type & screw type bottle). Filling and capping are designed in one monoblock machine. This production line stable running speed is around 80 bottles/min.
It is specially designed for 30ml and 75ml screw type and push type bottle arranging filling and capping.
2. Working process:
2.1. Automatic bottle arranging machine
Put the disordered bottles into the storage bin of bottle unscrambler, and the lifting conveyor will send the bottles into mainframe of bottle unscrambler, that is rotary type bottle unscrambler. Firstly, the disordered bottles will be arranged to horizontal condition by specially made turntable rotating. At the outlet of the conveyor, there is soft rotating mechanism continuously sweeping the bottles down to ensure the unobstructed outlet. The bottles will be transferred to bottles sending clamping conveyor belt through special outlet.
| Model | PW-LP80 |
| Bottle specs | 30ml, 75ml. |
| Capacity | Around 80BPM(Take 30ml as an example) |
| Voltage | AC230V,50Hz |
| Power | 1.8 KW |
| Compressed air | 0.5～0.8Mpa 35～50L/min |
| Weight | 800 Kg |
| Dimension(W×D×H) | 1600×800×1200 (mm)(please check the drawing) |
2.2. Automatic filling and capping machine
| No. | Items | Automatic Filling and Capping Machine |
| 1 | Model |
PW-PGXY8088
|
| 2 | Bottle shape | 2 types of round bottles |
| 3 | Filling speed | Around 80BPM |
| 4 | Bottles feed in type | Automatic bottle unscrambler |
| 5 | Filling method | 8 heads SUS 316L piston cylinder rotary type continuous follow-up filling. |
| 6 | Buffering vessel | 80L, SUS316L |
| 7 | Filling accuracy | ±1% |
| 8 | 2 types of bottles |
Two types of caps Bottles diameters are different. (30ml and 75ml) Need to change the rotary table and fence etc. |
| 9 | Cap sorting method | Vibrating disk (according to samples) |
| 10 | Cap taking method | Mechanical arm drawing cap, transferring cap, Cam controlling (according to samples) |
| 11 | Capping method | 8 heads rotary type capping, servo controlling, twisting and pressing is adjustable |
| 12 | Capping head | 8 heads |
| 13 | Power |
Bottle feeding turntable:230V Filling capping machine:400V |
| 14 | Compressed air | 0.4～0.6Mpa ,25～35L/min |
| 15 | Safety protection | Strong glass cover was installed, when opening the glass cover, the machine will alarm and stop working, which can protect the operator from being injured by the machine. |
| 16 | Dimension | Please see the machine drawing |
2.2.1. Filling
Adopt 8 groups precise Servo drive 316L piston cylinder for rotary type continuously follow-up filling method.
2.2.2. Screw capping & push capping.
A. Adopt automatic cap unscrambler.
B. Cap unscrambler will put the disordered caps in position with right direction.
C. 8 heads cap placing mechanism.
D. 8 heads cap screwing & cap pushing mechanism.
E. Three groups of compact CAM drive the mechanical arm to take, send, and screw caps or push caps automatically.
F. Flexible screw capping mechanism do not damage and make any scratches on the caps.
G. Adopt original technology of precise CAM mechanism for bottle fixing.
H. Servo technology controlling the twisting force of pump head.
I. Detect and reject automatically the defective bottles. (optional function)
