90mm Mono And Double Area Plates Petri Dish Filling Machine with Tempered Glass

90mm Mono And Double Area Plates Petri Dish Filling Machine with Tempered Glass

Product Details:

Place of Origin: Qidong, Jiangsu
Brand Name: PERWIN
Certification: CE, ISO, GMP, UL, TUV, SGS
Model Number: PW-PP6-7500

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
Get Best Price Contact Now

Detail Information

Compressed Air: 0.4~0.8Mpa Dish Separating: The Dish Separation Mechanism, Upper Suction Cap Mechanism, And Cap Moving Mechanism All Adopt Servo Technology
Filling Needle Insulation: Prevent The Liquid At The Filling Needle From Cooling Down Too Fast When The Production Is Suspended, And Prevent The Liquid From Solidifying And Blocking The Filling Needle. Control The Outlet Temperature Of The Stainless Steel Filling Needle At 40~45 ° . Weight: 2000kgs
Voltage: 400V, Three Phase, 50~60hz Product Name: Petri Dish Filling Machine
Dish Shaking Mechanism: Servo Motor Control Cooling Time: 3~5min, Customer Can Set Accordingly.

Product Description

Product Description:

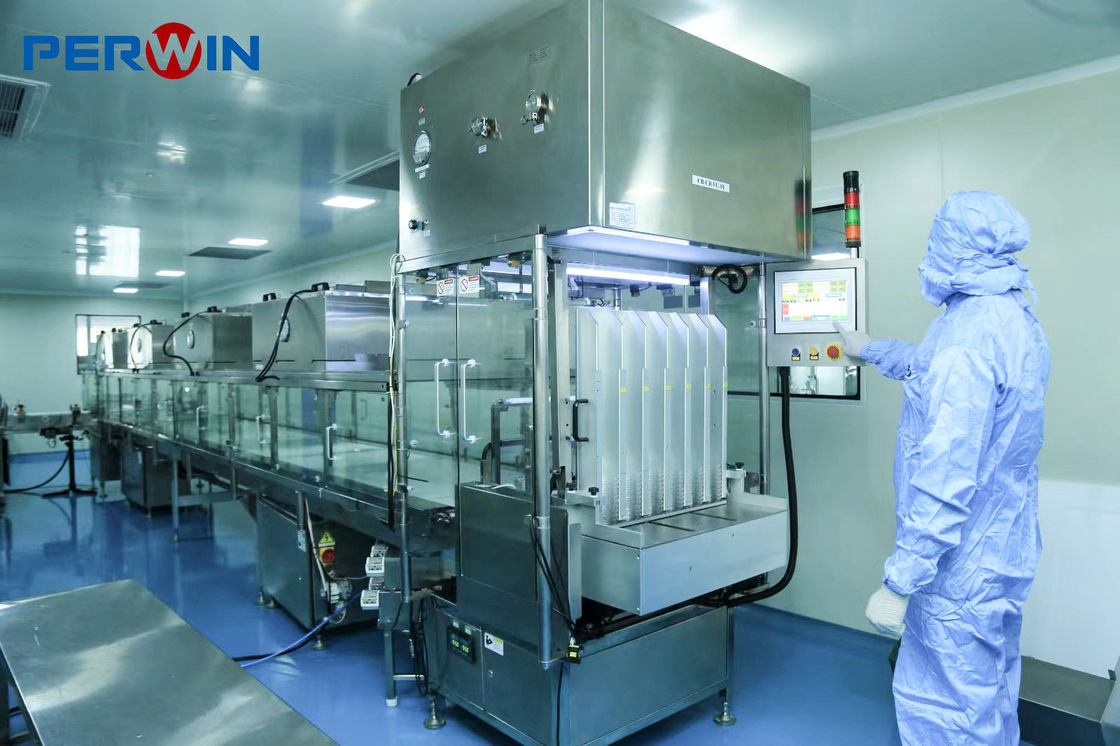

Petri Dish Filling Machine is an advanced and efficient equipment for Petri dish filling. It is made of stainless steel, with an electric heating insulation interlayer and magnetic stirring at the bottom. It is equipped with an automatic speed control system, a peristaltic pump rehydration system, an intake system with sterile filter, a tank pressure automatic control system, and a German Baode/Japan Fujikin diaphragm valve. In addition, it is equipped with Spirax Sarco and other steam traps independent control system. There are 8 FFU sets covering the entire process of the Petri dish line from filling to closing, one of which is used for the sheep blood adding station. The dish shaking mechanism is servo motor control, and the operation mode is automatic. This Petri Dish Filling Machine has high efficiency, good reliability, easy operation and maintenance, and can meet different production needs. It is widely used in medical, food, chemical, pharmaceutical and other industries.



Features:

  • Product Name: Petri Dish Filling Machine
  • Dish separating: The Dish Separation Mechanism, Upper Suction Cap Mechanism, And Cap Moving Mechanism All Adopt Servo Technology
  • Voltage: 400V, Three Phase, 50~60hz
  • FFU: A Total Of 8 Sets Of FFU, Covering The Entire Process Of The Petri Dish Line From Filling To Closing, One Of Which Is Used For The Sheep Blood Adding Station.
  • Cooling time: 3~5min, Customer Can Set Accordingly.
  • Warranty: 1 Year
  • Keywords: Petri Dish Fill Machine, Petri Dish Filling Apparatus, Petri Dish Filling Automation, Petri Dish Filling System, Petri Dish Filling Line


Technical Parameters:

Technical ParametersDescription
Preparation tankElectric Heating Insulation Interlayer, Magnetic Stirring At The Bottom, Automatic Speed Control, Automatic SIP, Automatic Temperature Control System, Peristaltic Pump Rehydration, Intake System: Sterile Filter, Tank Pressure Automatic Control, German Baode/Japan Fujikin Diaphragm Valve, Spirax Sarco And Other Steam Traps Independent Control System
Capping methodServo Technology Control Fixed-point Cap Closing.
Dish stackThe 90mm Single-zone Dish Uses A 6-station Stacking Method; The 90mm Dual-zone Dish Uses A 3-station Stacking Method; The 140mm Single-zone Dish Uses A 3-station Stacking Method; Each Package Is Packed In A Stack Of 10 Pieces (customers Can Set The Number Of Stacking Layers Themselves). Adopt Box Design And Install Safety Isolation Cover.
Filling needle insulationPrevent The Liquid At The Filling Needle From Cooling Down Too Fast When The Production Is Suspended, And Prevent The Liquid From Solidifying And Blocking The Filling Needle. Control The Outlet Temperature Of The Stainless Steel Filling Needle At 40~45 ° . (customer Can Choose To Maintain A Certain Temperature In The Silicone Tube As Well.)
FFUA Total Of 8 Sets Of FFU, Covering The Entire Process Of The Petri Dish Line From Filling To Closing, One Of Which Is Used For The Sheep Blood Adding Station.
Inner bag packingAutomatic Packing Machine
Power Consumption7.5kw
Compressed air0.4~0.8Mpa
LightInstall 4 Sets Of Lighting On The Main Line
Filling volume4ml~70ml


Applications:

PERWIN PW-PP6-7500 Petri Dish Filling Machine is a highly precise and reliable automation equipment for Petri dish filling. This machine is manufactured in Qidong, Jiangsu, and certified by CE, ISO, GMP, UL, TUV, and SGS. It is available in minimum order quantity of 1 and the price is negotiable. The packaging details are Export Standard Wooden Cases and the delivery time is 60 working days with payment terms of TT. The supply ability of this machine is 10pcs/month and it has a production speed of 3000pcs/hour for 90mm Single Area Dish, 2500pcs/hour for 90mm Double Area Dish, and 1000pcs/hour for 140mm Single Area Dish. The dish separation mechanism, upper suction cap mechanism, and cap moving mechanism all adopt servo technology to ensure precision and accuracy. This machine is also equipped with 90mm Mono and Double Area Plates and 140mm. The filling needle insulation is designed to prevent the liquid at the filling needle from cooling down too fast when the production is suspended, and prevent the liquid from solidifying and blocking the filling needle. The outlet temperature of the stainless steel filling needle can be controlled at 40~45°. The noise level is ≤75dB.



Customization:

Petri Dish Filling Machine - PERWIN PW-PP6-7500
  • Brand Name: PERWIN
  • Model Number: PW-PP6-7500
  • Place of Origin: Qidong, Jiangsu
  • Certification: CE, ISO, GMP, UL, TUV, SGS
  • Minimum Order Quantity: 1
  • Price: Negotiable
  • Packaging Details: Export Standard Wooden Cases
  • Delivery Time: 60 working days
  • Payment Terms: TT
  • Supply Ability: 10pcs/month
  • Cooling time: 3~5min, Customer Can Set Accordingly.
  • Preparation tank: Electric Heating Insulation Interlayer, Magnetic Stirring At The Bottom, Automatic Speed Control, Automatic SIP, Automatic Temperature Control System, Peristaltic Pump Rehydration, Intake System: Sterile Filter, Tank Pressure Automatic Control, German Baode/Japan Fujikin Diaphragm Valve, Spirax Sarco And Other Steam Traps Independent Control System
  • Inner bag packing: Automatic Packing Machine
  • Product Name: Petri Dish Filling Machine
  • FFU: A Total Of 8 Sets Of FFU, Covering The Entire Process Of The Petri Dish Line From Filling To Closing, One Of Which Is Used For The Sheep Blood Adding Station.


Support and Services:

Petri Dish Filling Machine Technical Support and Service

Petri Dish Filling Machine is designed to provide efficient and accurate filling of Petri dishes with a range of materials. Our technical support and service team is here to help you get the most out of your Petri Dish Filling Machine.

Technical Support

Our technical support team is available to answer questions about the installation, operation, and maintenance of your Petri Dish Filling Machine. We provide detailed instructions on how to properly install, operate, and maintain the machine, as well as troubleshooting tips if you experience any issues.

Maintenance and Repair

We offer regular maintenance and repair services for your Petri Dish Filling Machine. Our technicians are highly skilled and experienced in all aspects of the machine, ensuring that it is running smoothly and efficiently. We also offer emergency repair services if the machine malfunctions or breaks down.

Replacement Parts

We carry a wide selection of replacement parts for your Petri Dish Filling Machine. Our parts are genuine and of the highest quality, ensuring that they will fit and work properly with the machine. We also offer a full warranty on all parts and labor.

Customer Service

We take customer service very seriously and are committed to providing a top-notch experience to all of our customers. If you have any questions or concerns about our Petri Dish Filling Machine, feel free to contact us and we will be happy to help!



FAQ:

Q:What is the Brand Name of the Petri Dish Filling Machine?
A:The Brand Name of the Petri Dish Filling Machine is PERWIN.
Q:What is the Model Number of the Petri Dish Filling Machine?
A:The Model Number of the Petri Dish Filling Machine is PW-PP6-7500.
Q:Where is the Petri Dish Filling Machine made?
A:The Petri Dish Filling Machine is made in Qidong, Jiangsu.
Q:What certifications does the Petri Dish Filling Machine have?
A:The Petri Dish Filling Machine has CE, ISO, GMP, UL, TUV, SGS certifications.
Q:What is the minimum order quantity of the Petri Dish Filling Machine?
A:The minimum order quantity of the Petri Dish Filling Machine is 1.
