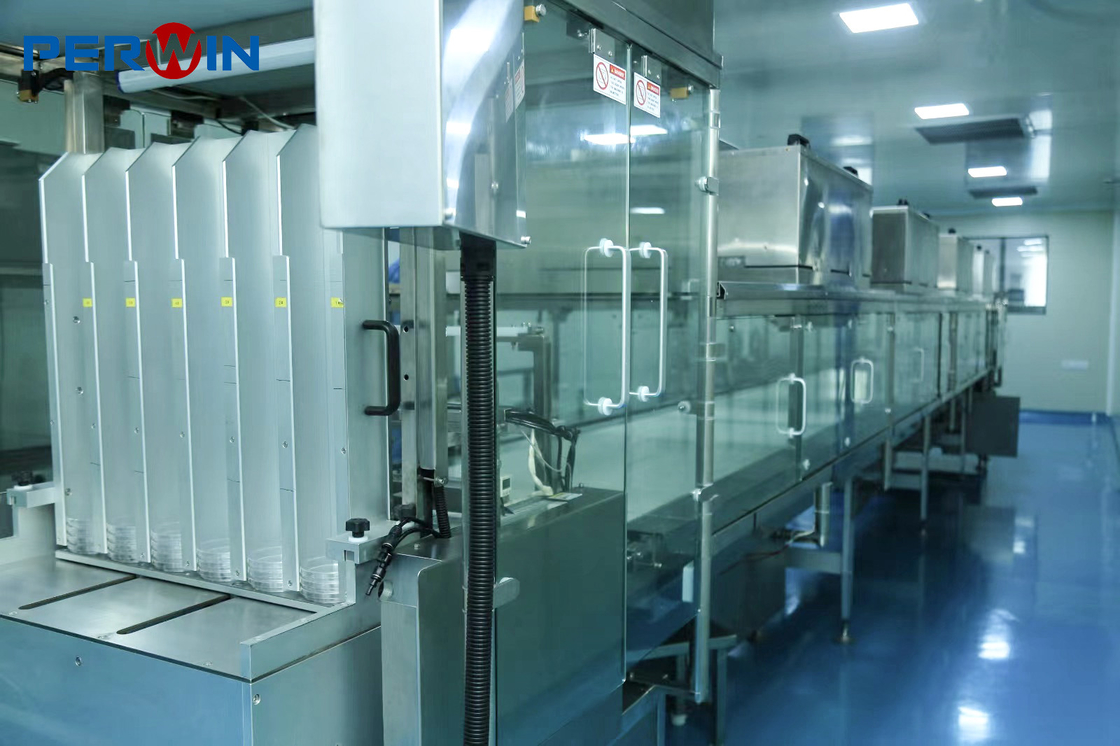

Versatile Petri Dish Filling Machine with Fluid Input Port and Stacking Unit

Versatile Petri Dish Filling Machine with Fluid Input Port and Stacking Unit

Product Details:

Place of Origin: Qidong, Jiangsu
Brand Name: PERWIN
Certification: CE, ISO, GMP, UL, TUV, SGS
Model Number: PW-PP6-10000

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
Get Best Price Contact Now

Detail Information

PLC: SIEMENS From Germany Dish Stacking: Integrated Servo Sinking And Stacking Unit
Light: Install 4 Sets Of Lighting On The Main Line Pure Steam Generator: 100kg/h
Dish Separating: The Dish Separation Mechanism, Upper Suction Cap Mechanism, And Cap Moving Mechanism All Adopt Servo Technology Safety Protection: SS304 Frame, Tempered Glass
Inkjet Printing: The Inkjet Printing Holes At The Bottom Of The Petri Dish Are Reserved In The Conveyor Belt Product Name: Petri Dish Filling Machine

Product Description

Product Description:

The Petri Dish Filling Machine is an automated apparatus designed for filling Petri dishes with liquid samples accurately and safely. It is constructed with SS304 frame and tempered glass for enhanced safety protection. Its noise level is kept at ≤75dB while operating, ensuring a quiet environment.

The Petri Dish Filling Mechanism is controlled by servo motor to ensure the samples are filled to the accurate and stable. It is designed to stack the 90mm single zone dish with a 6-station stacking method, the 90mm dual-zone dish with a 3-station stacking method, and the 140mm single-zone dish with a 3-station stacking method. Each package is packed in a stack of 10 pieces, and customers can adjust the number of stacking layers. The box design and safety isolation cover installation further ensure the safety during the Petri dish filling process.

The Petri Dish Filling Robot is a reliable and precise automation solution for laboratories that require high volume Petri dish filling. It is designed to be highly accurate, with minimal sample waste and improved efficiency. With its cutting-edge technology, it can help laboratories save time and money while ensuring optimal safety in the Petri dish filling process.



Features:

  • Product Name: Petri Dish Filling Machine
  • Capping method: Servo Technology Control Fixed-point Cap Closing.
  • Operation Mode: Automatic
  • Preparation tank: 30L, 60L And 100L Agar Sterilization Reactors Per Line (specific Requirements Are As Follows.) Agar Sterilizers Will Be Used To Prepare A Variety Of Media, With Or Without Blood And/or Supplements. Therefore, Jars Should Be Sterilized For Agar At 121°C For At Least 15 Minutes. Then Cool To 38-45°C And Hold This Temperature Steady For At Least 8 Hours. With Fluid Input Port The Thermometer Should Be Of The Highest Accuracy, The Mixer Should Have Multiple Levels, Say These Are The Basic Requirements, The Tank Will Be For A Variety Of Agars, Not A Specific Few.
  • Dish shaking mechanism: Servo Motor Control
  • Production speed: When The Cooling Time Is 5 Minutes, The 90mmm Dish Is About 4000~4500 Pieces Per Hour; Machine Length Is 10m


Technical Parameters:

Product Name Petri Dish Filling Machine
Pure steam generator 100kg/h
Changeover parts Equipped with three other specifications. 90mm double-zone dish and 140mm single zone dish.
Product specifications 90mm plates, 90mm bi-plates, 150mm plates
Warranty 1 Year
Filling speed 4000~4500dishes/hour
Production speed When the cooling time is 5 minutes, the 90mmm dish is about 4000~4500 pieces per hour; machine length is 10m
Noise level ≤75dB
Weight 2000kgs
Inkjet printing The inkjet printing holes at the bottom of the Petri dish are reserved in the conveyor belt


Applications:

The PERWIN PW-PP6-10000 Petri Dish Filling Apparatus is a top-of-the-line product that is designed to fill Petri dishes with a variety of media, with or without blood and/or supplements. This product is certified by CE, ISO, GMP, UL, TUV, and SGS, and has a minimum order quantity of 1. It is mainly produced in Qidong, Jiangsu and is exported in export standard wooden cases. It usually takes 60 working days to deliver the product. The price is negotiable and the payment terms are TT. The supply ability is 10pcs/month. The Petri dish filling machine is equipped with a PLC from Siemens in Germany and has a weight of 2000kgs. The noise level is ≤75dB. It also has 30L, 60L and 100L agar sterilization reactors per line. Moreover, this product features a fluid input port, a thermometer of the highest accuracy, and a mixer with multiple levels. It can be used to prepare a variety of agars.



Customization:

Petri Dish Filling Machine – PERWIN PW-PP6-10000

Place of Origin: Qidong, Jiangsu, China
Certification: CE, ISO, GMP, UL, TUV, SGS
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
Noise Level: ≤75dB
Dish shaking mechanism: Servo Motor Control
Weight: 2000kgs
Filling method: 6 Sets Of Peristaltic Pumps, Each Driven By A Separate Stepping System, Assembled By PERWIN. Operate On The Host's Touch Screen, The Filling Specification Can Be Selected On The Interface, And The Filling Accuracy Of Each Pump Can Be Adjusted Independently.
Power Source: Electric

PERWIN PW-PP6-10000 Petri Dish Fill Machine is a professional Petri dish filler that is designed and manufactured by PERWIN. It is certified by CE, ISO, GMP, UL, TUV, SGS and has a noise level of ≤75dB. This Petri dish fill machine has a servo motor control dish shaking mechanism and is driven by 6 sets of peristaltic pumps, each driven by a separate stepping system. The filling accuracy of each pump can be adjusted independently and the filling specification can be selected on the interface. It has a weight of 2000kgs and is powered by electricity.



Support and Services:

Technical Support and Service For Petri Dish Filling Machine

We offer technical support and service for the Petri Dish Filling Machine. Our technical support team is available to answer any questions you may have about installation, operation, and maintenance. We also provide repair and replacement services to keep your Petri Dish Filling Machine running smoothly. Our technical staff is highly trained and experienced in the field of device and automation.

We offer advanced diagnostic and troubleshooting services to quickly identify and resolve any issues you may have. Our service technicians are available 24/7 for on-site repairs and maintenance. We also provide remote technical support and assistance for troubleshooting and maintenance.

We offer a wide range of customer support services, including product documentation, installation and training, and product customization services. We also provide technical support and service for upgrades and software updates. Our customer service representatives are available to answer any questions you may have.



FAQ:

Q: What is the brand name of Petri Dish Filling Machine?
A: The brand name of Petri Dish Filling Machine is PERWIN.
Q: What is the model number of Petri Dish Filling Machine?
A: The model number of Petri Dish Filling Machine is PW-PP6-10000.
Q: Where is the place of origin of Petri Dish Filling Machine?
A: The place of origin of Petri Dish Filling Machine is Qidong, Jiangsu.
Q: What certifications do the Petri Dish Filling Machine have?
A: The Petri Dish Filling Machine have CE, ISO, GMP, UL, TUV, SGS certifications.
Q: What is the minimum order quantity for Petri Dish Filling Machine?
A: The minimum order quantity for Petri Dish Filling Machine is 1.
