Efficient and Reliable Animal Sera Filling Machine with Mettler Load Cell

Efficient and Reliable Animal Sera Filling Machine with Mettler Load Cell

Product Details:

Place of Origin: Qidong, Jiangsu
Brand Name: PERWIN
Certification: CE, ISO, GMP, UL, TUV, SGS
Model Number: PW-ZWGX550

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
Get Best Price Contact Now

Detail Information

Filling Head: Five/Six/Seven/Eight Pneumatic Components: SMC Or Festo
Filling Program Control: Each Group Of Pumps Is Individually Controlled Filling Method: 5 Sets Of OEM Peristaltic Pumps, Watson-Marlow 505L Pump Heads, Driven By Servo Motors. Set And Adjust The Filling Volume On The Touch Screen
Filling Nozzle: Five/Six/Seven/Eight Weight: 1000kg
Air Pressure: 0.6-0.8Mpa Environmental Monitoring: Online Particle And Planktonic Monitoring System

Product Description

Product Description:

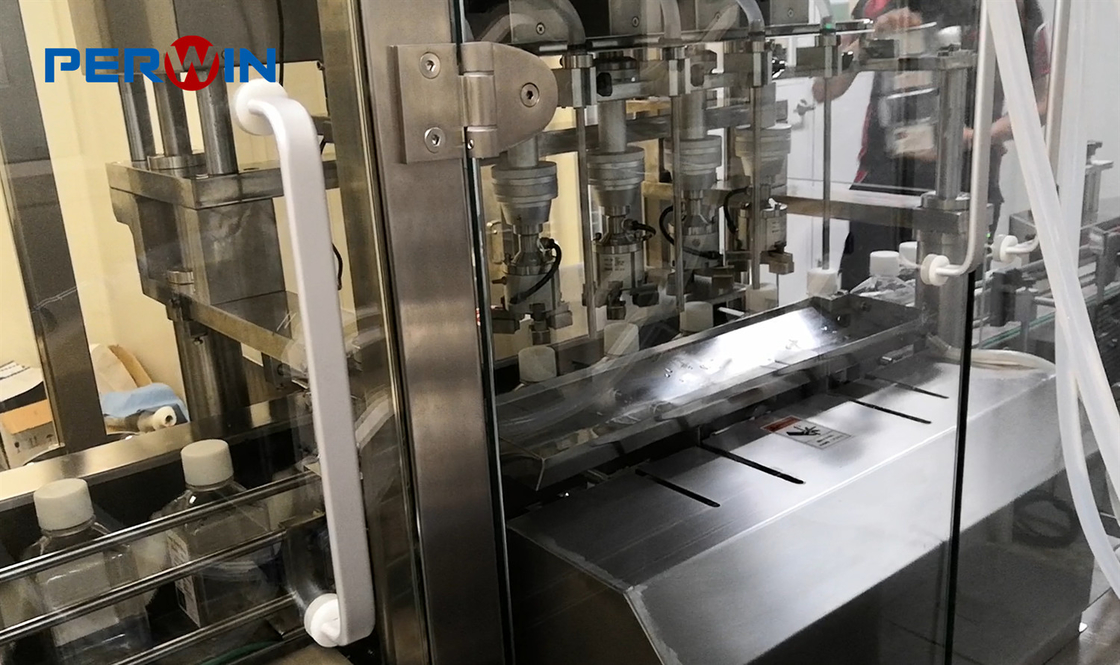

Animal Sera Filling Machine is the ideal solution for animal sera filling, such as fetal bovine serum filling and animal plasma filling. It is designed with the most advanced technology, providing the highest accuracy and highest efficiency. The machine is equipped with 5 sets of capping units, each set of servo motors are individually controlled, clockwise and anti-clockwise capping. And it has an automatic rejection workstation, conveyor belt controlled by servo motor, corresponds to a group of 5 bottles, each bottle corresponds to a cylinder. Unqualified bottles can be pushed into the corresponding channel of the collection platform with the corresponding cylinder. At the top of each channel, a full bottle sensor is installed. With servo technology, the torque control method is precise and reliable, and the capping head lift is also servo motor controlled. This machine ensures a filling accuracy of ±0.5~1%, providing the best performance and output.



Features:

  • Animal Sera Filling Machine
  • Rejection unit: Automatic Reject Workstation, Conveyor Belt Controlled By Servo Motor. Corresponds To A Group Of 5 Bottles, Each Bottle Corresponds To A Cylinder. Unqualified Bottles Can Be Pushed Into The Corresponding Channel Of The Collection Platform With The Corresponding Cylinder. At The Top Of Each Channel, A Full Bottle Sensor Is Installed
  • Labeling machine: Mechanical Synchronization Of Top Pressure Positioning Mechanism, Horizontal Positioning Mechanism And Conveyor Belt, Three-in-one Power, Accurate And Stable Positioning
  • Capping method: 5 Sets Of Capping Units, Each Set Of Servo Motors Are Individually Controlled, Clockwise Capping And Anti-clockwise Capping
  • Filling Capacity: 500ml, 1000ml
  • Printing: Zebra Thermo Transfer Printer
  • Animal Blood Filling Machine
  • Animal sera filling machine
  • Animal Sera Aseptic Filling Device


Technical Parameters:

ParameterValue
Filling Speed5~30bottles/min
PLCSiemens 1500
Power Supply220V/380V/415V/440V
Working flowBottle Loading On Powered Platform (unpacking Station)→ Screw Positioning Bottle → De-capping → Weighing I → Peristaltic Pump Filling→ Weighing II And Capping→Automatic Rejection Station→Finished Products To Packing Area→ Automatic Sleeve Labeling → Heat Shrinking Machine → Single Side Labeling Machine→Bottle Collection Platform
Security304 Stainless Steel Frame, Tempered Glass Cover. Open The Door To Stop; Emergency Stop Device, Earth Leakage Protection. HEPA Can Be Installed
Filling environmentAseptic Filling Environment, A-class(ISO5) 100 Laminar Flow Hood Is Required
Dimension3000*900*1800mm
Environmental monitoringOnline Particle And Planktonic Monitoring System
Labeling machineMechanical Synchronization Of Top Pressure Positioning Mechanism, Horizontal Positioning Mechanism And Conveyor Belt, Three-in-one Power, Accurate And Stable Positioning
Bottle separating method1 Set Of Servo Motor Drive Screw For Positioning


Applications:

Animal Sera Filling Machine(PERWIN PW-ZWGX550) for Various Purposes

PERWIN PW-ZWGX550 Animal Sera Filling Machine is a reliable and efficient machine for filling animal sera or plasma, such as FBS, monoclonal antibody, etc. This machine has been certified by CE, ISO, GMP, UL, TUV, SGS, and it is a perfect choice for laboratories or other medical applications. The minimum order quantity is 1, and the price is negotiable. It will be packed in export standard wooden cases for safe delivery, and it usually takes around 60 working days to finish the delivery. The payment terms are T/T. The monthly supply ability of this machine is 10pcs. With Zebra thermo transfer printer, it can print information onto the buffer bag. The air pressure of this machine is 0.6-0.8Mpa, and it is equipped with SMC or Festo pneumatic components. It also has 1 set of servo motor drive screw for bottle positioning.
PERWIN PW-ZWGX550 Animal Sera Filling Machine is ideal for filling animal sera or plasma in laboratories for research and development and production purposes. It is also suitable for clinical applications, such as filling human serum, blood, plasma, etc. This machine has been designed for high accuracy and precision, with a wide range of adjustable filling parameters. It is easy to operate and maintain, and it can provide reliable performance for a long time. With this machine, you can save time and labor cost while ensuring accurate and reliable filling of various animal sera.



Customization:

Customized Animal Sera Filling Machine
  • Brand Name: PERWIN
  • Model Number: PW-ZWGX550
  • Product Name: Animal Sera Filling Machine
  • Place of Origin: Qidong, Jiangsu
  • Certification: CE, ISO, GMP, UL, TUV, SGS
  • Minimum Order Quantity: 1
  • Price: Negotiable
  • Packaging Details: Export Standard Wooden Cases
  • Delivery Time: 60 working days
  • Payment Terms: TT
  • Supply Ability: 10pcs/month
  • Environmental monitoring: Online Particle And Planktonic Monitoring System
  • Bottle separating method: 1 Set Of Servo Motor Drive Screw For Positioning
  • Weighing unit: Mettler Load Cell + Controller. Marble Floor Installation Foundation
  • Printing: Zebra Thermo Transfer Printer

This Animal Sera Filling Machine is perfect for filling animal blood, fetal bovine serum and other animal sera. It is certified with CE, ISO, GMP, UL, TUV, SGS so you can rest assured of its quality. Its environmental monitoring system allows online particle and planktonic monitoring. It features 1 set of servo motor drive screw for positioning and Mettler load cell + controller with marble floor installation foundation for weighing unit.



Support and Services:

Animal Sera Filling Machine Technical Support and Services

We provide a wide range of technical support and services for our Animal Sera Filling Machine. Our team of experts are available to help you with any questions or concerns you may have. We can provide:

  • Installation and setup assistance
  • Troubleshooting and diagnostics
  • On-site repairs and maintenance
  • Software updates and upgrades
  • Parts replacement and refurbishment

Our experienced customer service representatives are also available to answer any questions you may have. If you have any issues or concerns, please don’t hesitate to contact us.



FAQ:

Animal Sera Filling Machine

Frequently Asked Questions

Q: What is the brand name of the Animal Sera Filling Machine?
A: The brand name of the Animal Sera Filling Machine is PERWIN.
Q: What is the model number?
A: The model number is PW-ZWGX550.
Q: Where is the Animal Sera Filling Machine manufactured?
A: The Animal Sera Filling Machine is manufactured in Qidong, Jiangsu.
Q: What certifications does the Animal Sera Filling Machine have?
A: The Animal Sera Filling Machine has CE, ISO, GMP, UL, TUV, and SGS certifications.
Q: What is the minimum order quantity?
A: The minimum order quantity is 1.
