5-30bottles/min Filling Speed Animal Sera Filling Machine with Full Bottle Detection

Product Details

Place of Origin: Qidong, Jiangsu

Brand Name: PERWIN

Certification: CE, ISO, GMP, UL, TUV, SGS

Model Number: PW-ZWGX550

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Export Standard Wooden Cases

Delivery Time: 60 working days

Payment Terms: TT

Supply Ability: 10pcs/month

Get Best Price
Contact Now
Specifications
Highlight:

30bottles/min Animal Sera Filling Machine

,

Full Bottle Detection Animal Sera Filling Machine

Security:
304 Stainless Steel Frame, Tempered Glass Cover. Open The Door To Stop; Emergency Stop Device, Earth Leakage Protection. HEPA Can Be Installed
Filling Capacity:
500ml, 1000ml
Filling Accuracy:
±0.5~1%
Filling Head:
Five/Six/Seven/Eight
Printing:
Zebra Thermo Transfer Printer
Power Supply:
220V/380V/415V/440V
PLC:
Siemens 1500
Labeling Machine:
Mechanical Synchronization Of Top Pressure Positioning Mechanism, Horizontal Positioning Mechanism And Conveyor Belt, Three-in-one Power, Accurate And Stable Positioning
Security:
304 Stainless Steel Frame, Tempered Glass Cover. Open The Door To Stop; Emergency Stop Device, Earth Leakage Protection. HEPA Can Be Installed
Filling Capacity:
500ml, 1000ml
Filling Accuracy:
±0.5~1%
Filling Head:
Five/Six/Seven/Eight
Printing:
Zebra Thermo Transfer Printer
Power Supply:
220V/380V/415V/440V
PLC:
Siemens 1500
Labeling Machine:
Mechanical Synchronization Of Top Pressure Positioning Mechanism, Horizontal Positioning Mechanism And Conveyor Belt, Three-in-one Power, Accurate And Stable Positioning
Description

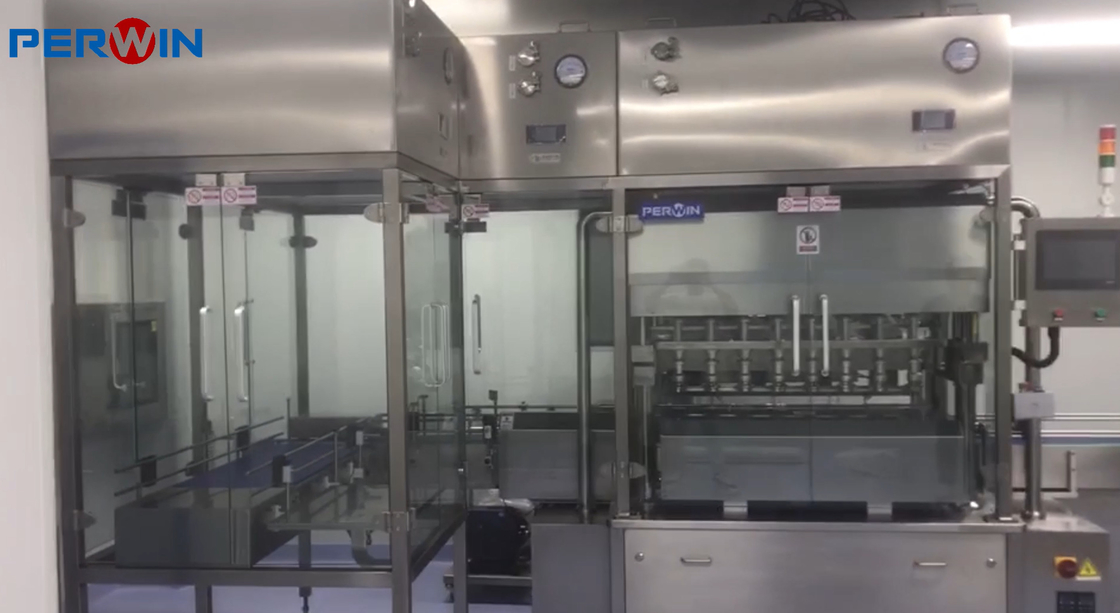

5-30bottles/min Filling Speed Animal Sera Filling Machine with Full Bottle Detection

Product Description:

The Animal Sera Filling Machine is a specialized aseptic filling device for animal serum, such as fetal bovine serum. This machine features a wide range of filling heads, ranging from five to eight, which allows for accuracy and precision when it comes to dosing. With a power consumption of 10KW for the entire line, the machine is highly efficient and economical. Moreover, each group of pumps is individually controlled by a filling program for a more accurate dosing. The power supply for the machine is 220V/380V/415V/440V, and the filling speed ranges from 5 to 30 bottles per minute.



Features:

  • Product Name: Animal Sera Filling Machine
  • Capping head lift: Servo Motor Control
  • Torque control method: Servo Technology
  • Labeling machine: Mechanical Synchronization Of Top Pressure Positioning Mechanism, Horizontal Positioning Mechanism And Conveyor Belt, Three-in-one Power, Accurate And Stable Positioning
  • Filling environment: Aseptic Filling Environment, A-class(ISO5) 100 Laminar Flow Hood Is Required
  • Weight: 1000kg
  • Animal Serum Filler, Animal Plasma Filling Machine, Animal Blood Filler


Technical Parameters:

Parameter Description
Filling Head Five/Six/Seven/Eight
Security 304 Stainless Steel Frame, Tempered Glass Cover. Open The Door To Stop; Emergency Stop Device, Earth Leakage Protection. HEPA Can Be Installed
Filling program control Each Group Of Pumps Is Individually Controlled
Air Consumption 0.3m³/min
PLC Siemens 1500
Working flow Bottle Loading On Powered Platform (unpacking Station)→ Screw Positioning Bottle → De-capping → Weighing I → Peristaltic Pump Filling→ Weighing II And Capping→Automatic Rejection Station→Finished Products To Packing Area→ Automatic Sleeve Labeling → Heat Shrinking Machine → Single Side Labeling Machine→Bottle Collection Platform
Capping head lift Servo Motor Control
Torque control method Servo Technology
Filling Nozzle Five/Six/Seven/Eight
Pneumatic components SMC Or Festo


Applications:

PERWIN's PW-ZWGX550 Animal Serum Filling Machine is an ideal choice for a wide range of applications in the medical, pharmaceutical, biotechnology, research, and laboratory industries. This machine is CE, ISO, GMP, UL, TUV, and SGS certified, and is available in a minimum order of 1 unit. It comes with Export Standard Wooden Cases for packaging and has a delivery time of 60 working days. The payment terms are accepted through TT and the production capacity is 10pcs/month. It is highly precise and equipped with servo technology and torque control methods. The filling capacity is 500ml and 1000ml and the dimension is 3000*900*1800mm. It is installed on a marble floor with a Mettler Load Cell + Controller for weighing purposes. Additionally, the machine also features an online particle and planktonic monitoring system for environmental monitoring.

PERWIN's PW-ZWGX550 Animal Serum Filling Machine is specifically designed for animal serum filling. It is reliable, accurate, and efficient for filling a variety of animal serum and blood products. The machine is designed to be easy to use, with a wide range of features to make it even more convenient. The machine can fill up to 500ml or 1000ml of animal serum or blood in one go with its precise and accurate filling capacity. It is also equipped with servo technology and torque control methods for more accurate results. Additionally, it features an online particle and planktonic monitoring system to ensure the environment is safe and clean.

PERWIN's PW-ZWGX550 Animal Serum Filling Machine is the perfect solution for laboratories, medical centers, pharmaceutical companies, and research centers that need a reliable and precise machine for animal serum and blood filling. It is highly durable and efficient with a wide range of features to make it even more convenient. So if you are looking for an accurate and reliable machine for animal serum and blood filling, you can trust PERWIN's PW-ZWGX550 Animal Serum Filling Machine.



Customization:

  • Brand Name: PERWIN
  • Model Number: PW-ZWGX550
  • Place of Origin: Qidong, Jiangsu
  • Certification: CE, ISO, GMP, UL, TUV, SGS
  • Minimum Order Quantity: 1
  • Price: Negotiable
  • Packaging Details: Export Standard Wooden Cases
  • Delivery Time: 60 working days
  • Payment Terms: TT
  • Supply Ability: 10pcs/month
  • Labeling machine: Mechanical Synchronization Of Top Pressure Positioning Mechanism, Horizontal Positioning Mechanism And Conveyor Belt, Three-in-one Power, Accurate And Stable Positioning
  • Filling Pressure: 0-0.3Mpa
  • Filling Speed: 5~30bottles/min
  • Weighing unit: Mettler Load Cell + Controller. Marble Floor Installation Foundation
  • Material: Stainless Steel
  • Keywords: Animal Sera filling line, Animal Blood Filler, Animal Plasma Aseptic Filling Line


Support and Services:

Animal Sera Filling Machine Technical Support and Service

We provide comprehensive technical support and service for the Animal Sera Filling Machine, including:

  • Installation and setup of the machine
  • Troubleshooting any technical issues
  • Maintenance and repair of the machine
  • Providing spare parts
  • Technical advice and guidance on usage


FAQ:

Q1: What is the Brand Name of the Animal Sera Filling Machine?
A1: The Brand Name of the Animal Sera Filling Machine is PERWIN.

Q2: What is the Model Number of the Animal Sera Filling Machine?
A2: The Model Number of the Animal Sera Filling Machine is PW-ZWGX550.

Q3: Where is the Animal Sera Filling Machine manufactured?
A3: The Animal Sera Filling Machine is manufactured in Qidong, Jiangsu.

Q4: What certifications does the Animal Sera Filling Machine have?
A4: The Animal Sera Filling Machine has CE, ISO, GMP, UL, TUV, SGS certifications.

Q5: How many pieces of the Animal Sera Filling Machine can be supplied each month?
A5: 10 pieces of the Animal Sera Filling Machine can be supplied each month.
