Stainless Steel Animal Blood Filler - Power Consumption 10KW

Product Details

Place of Origin: Qidong, Jiangsu

Brand Name: PERWIN

Certification: CE, ISO, GMP, UL, TUV, SGS

Model Number: PW-ZWGX550

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Export Standard Wooden Cases

Delivery Time: 60 working days

Payment Terms: TT

Supply Ability: 10pcs/month

Get Best Price
Contact Now
Specifications
Highlight:

Power Consumption Animal Blood Filler

,

Stainless Steel Animal Blood Filler

,

10KW Animal Blood Filler

Working Flow:
Bottle Loading On Powered Platform (unpacking Station)→ Screw Positioning Bottle → De-capping → Weighing I → Peristaltic Pump Filling→ Weighing II And Capping→Automatic Rejection Station→Finished Products To Packing Area→ Automatic Sleeve Labeling → Heat S
Printing:
Zebra Thermo Transfer Printer
Capping Head Lift:
Servo Motor Control
Power Supply:
220V/380V/415V/440V
Bottle Separating Method:
1 Set Of Servo Motor Drive Screw For Positioning
Filling Head Lift:
Servo Motor Control
Filling Nozzle:
Five/Six/Seven/Eight
Capping Method:
5 Sets Of Capping Units, Each Set Of Servo Motors Are Individually Controlled, Clockwise Capping And Anti-clockwise Capping
Working Flow:
Bottle Loading On Powered Platform (unpacking Station)→ Screw Positioning Bottle → De-capping → Weighing I → Peristaltic Pump Filling→ Weighing II And Capping→Automatic Rejection Station→Finished Products To Packing Area→ Automatic Sleeve Labeling → Heat S
Printing:
Zebra Thermo Transfer Printer
Capping Head Lift:
Servo Motor Control
Power Supply:
220V/380V/415V/440V
Bottle Separating Method:
1 Set Of Servo Motor Drive Screw For Positioning
Filling Head Lift:
Servo Motor Control
Filling Nozzle:
Five/Six/Seven/Eight
Capping Method:
5 Sets Of Capping Units, Each Set Of Servo Motors Are Individually Controlled, Clockwise Capping And Anti-clockwise Capping
Description

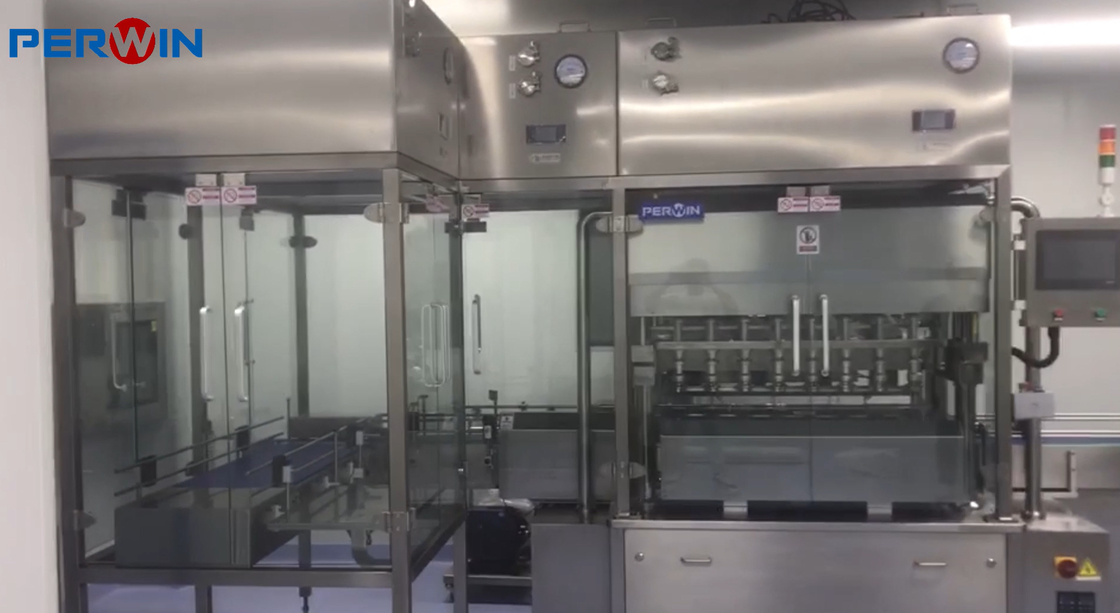

Stainless Steel Animal Blood Filler - Power Consumption 10KW

Product Description:

The Animal Serum Filling Equipment is an advanced and highly efficient machine designed to meet the filling needs of animal serums, animal plasmas, and other similar liquids. It is equipped with Servo Motor Control for capping head and filling head lift, allowing an adjustable filling temperature from 0-100℃, and a filling capacity of 500ml and 1000ml. Furthermore, it is equipped with 5 sets of capping units, each set of servo motors are individually controlled, providing clockwise and anti-clockwise capping. This animal serum filler is ideal for laboratories, veterinary clinics, and other applications that require accurate and reliable filling of animal serums and animal plasmas.



Features:

  • Product Name: Animal Sera Filling Machine
  • Filling Head: Five/Six/Seven/Eight
  • Air Consumption: 0.3m³/min
  • Filling program control: Each Group Of Pumps Is Individually Controlled
  • Torque control method: Servo Technology
  • Suitable for: Animal Sera filling line, Animal Serum Filler, Animal Sera Aseptic Filling Device


Technical Parameters:

Features Parameters
Environmental monitoring Online Particle And Planktonic Monitoring System
Air Pressure 0.6-0.8Mpa
Power Supply 220V/380V/415V/440V
Printing Zebra Thermo Transfer Printer
Torque control method Servo Technology
Filling method 5 Sets Of OEM Peristaltic Pumps, Watson-Marlow 505L Pump Heads, Driven By Servo Motors. Set And Adjust The Filling Volume On The Touch Screen
Filling Accuracy ±0.5~1%
Air Consumption 0.3m³/min
Bottle separating method 1 Set Of Servo Motor Drive Screw For Positioning
Working flow Bottle Loading On Powered Platform (unpacking Station)→ Screw Positioning Bottle → De-capping → Weighing I → Peristaltic Pump Filling→ Weighing II And Capping→Automatic Rejection Station→Finished Products To Packing Area→ Automatic Sleeve Labeling → Heat Shrinking Machine → Single Side Labeling Machine→Bottle Collection Platform
Fetal bovine serum filling machine Animal Blood Filling Machine, Animal Serum Filling Equipment


Applications:

The PERWIN PW-ZWGX550 Animal Sera Filling Machine is a highly advanced and efficient aseptic filling line for animal serum. CE, ISO, GMP, UL, TUV, SGS certified, it is designed with air pressure of 0.6-0.8Mpa and air consumption of 0.3m³/min and equipped with Mettler Load Cell + Controller and marble floor installation foundation. The dimension of the machine is 3000*900*1800mm. It is capable of filling animal plasma, serum and sera. This model can be purchased in minimum order quantity of 1 and comes with export standard wooden cases with delivery time of 60 working days. The price of the machine is negotiable and the supply ability is 10pcs/month. The payment terms for this product is TT.



Customization:

Animal Sera Filling Machine
  • Brand Name: PERWIN
  • Model Number: PW-ZWGX550
  • Place of Origin: Qidong, Jiangsu
  • Certification: CE, ISO, GMP, UL, TUV, SGS
  • Minimum Order Quantity: 1
  • Price: Negotiable
  • Packaging Details: Export Standard Wooden Cases
  • Delivery Time: 60 working days
  • Payment Terms: TT
  • Supply Ability: 10pcs/month
  • Filling program control: Each Group Of Pumps Is Individually Controlled
  • Air Pressure: 0.6-0.8Mpa
  • Security: 304 Stainless Steel Frame, Tempered Glass Cover. Open The Door To Stop; Emergency Stop Device, Earth Leakage Protection. HEPA Can Be Installed
  • Filling Capacity: 500ml, 1000ml
  • Capping head lift: Servo Motor Control

PERWIN Animal Sera Filling Machine, Animal Plasma Filling Machine, Animal Serum Filling Equipment PW-ZWGX550 is a high-end product with CE, ISO, GMP, UL, TUV, SGS certification, minimum order quantity 1 and export standard wooden cases for delivery. It has a filling program control system, air pressure of 0.6-0.8Mpa, 304 stainless steel frame, tempered glass cover, and a servo motor control capping head lift. The filling capacity is 500ml, 1000ml, and security devices like emergency stop device and earth leakage protection can be installed. The supply ability is 10pcs/month, and the payment terms are TT.



Support and Services:

Animal Sera Filling Machine Technical Support & Services

Our team of specialized technicians provides the technical support and services required to ensure the proper functioning and reliable performance of your Animal Sera Filling Machine. Our services include:

  • Installation and calibration of the machines
  • Troubleshooting and repair of machines
  • On-site maintenance and preventive maintenance
  • Software upgrades and modifications
  • Training and technical advice
  • Spare parts and consumables supply


FAQ:

Q1: What's the Brand Name of Animal Sera Filling Machine?
A1: The Brand Name of Animal Sera Filling Machine is PERWIN.

Q2: What's the Model Number of Animal Sera Filling Machine?
A2: The Model Number of Animal Sera Filling Machine is PW-ZWGX550.

Q3: Where is the Place of Origin of Animal Sera Filling Machine?
A3: The Place of Origin of Animal Sera Filling Machine is Qidong, Jiangsu.

Q4: What Certifications does Animal Sera Filling Machine have?
A4: Animal Sera Filling Machine has CE, ISO, GMP, UL, TUV, SGS Certifications.

Q5: What's the Minimum Order Quantity of Animal Sera Filling Machine?
A5: The Minimum Order Quantity of Animal Sera Filling Machine is 1.
