Product Description:

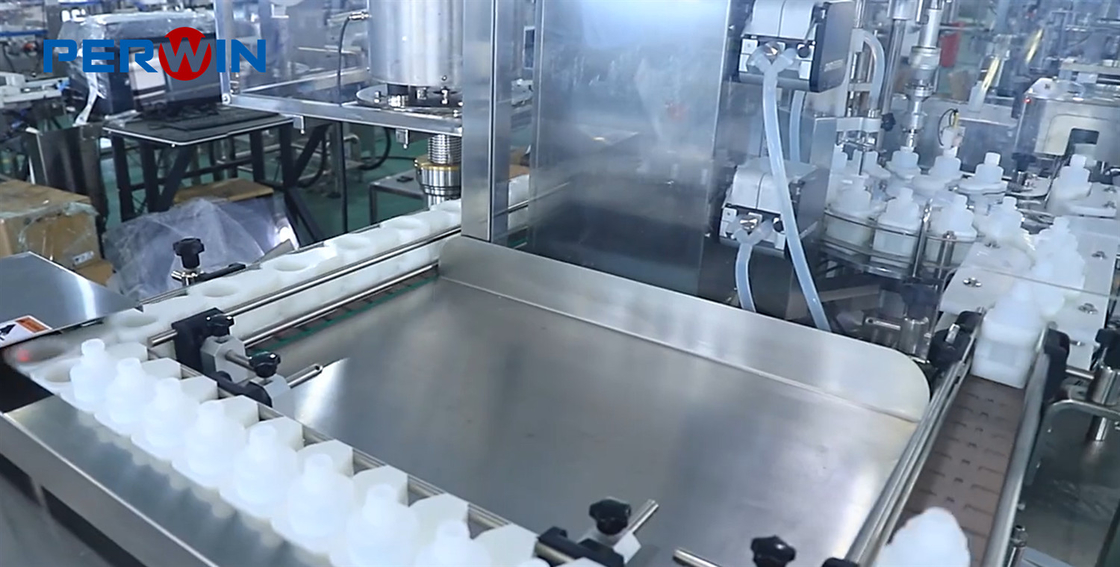

Diagnostic Reagent Filling Line is a reagent filling capping machine, which is designed to fill and cap biochemistry reagent with high accuracy. It is equipped with manually put bottles into bottle holders, which has noise reduction design with 2 bottles for one holder. Servo technology control is used for torque control, allowing operators to adjust the torque value in the HMI. In addition, this filling line has a filling accuracy of ≤±1-3%, ensuring fill accuracy and reliability. With a one-year warranty, Diagnostic Reagent Filling Line is an ideal choice for biochemistry reagent filling and capping.
Features:
- Product Name: Diagnostic Reagent Filling Line
- Thermal transfer printer: 300dpi, Can Print Letters, Numbers, Bar Codes, Etc. Including Label Buffer Mechanism And Mounting Bracket.
- Pneumatic components: SMC Or Festo
- Liquid supply level control : Controlled By The Host PLC. Peristaltic Pump And Weighing Module, Etc.
- Working flow: Filling + Capping +Labeling + Printing
- Key functions: Double-station Follow-up Filling. Manipulator Automatic Cap Removal, Pre-capping And Capping Technology, Driven By Precision Cam Mechanism. Servo Technology Controls Capping Torque. Automatic Cap Sorting Unit And Soundproof Cover. Lifting Filling To Prevent Splashing.
- Highlight: Biochemistry reagent filling capping labeling line, Reagent filler, Biochemistry reagent filling line
Technical Parameters:
| Product Attributes |
Description |
| Key Functions |
Double-station Follow-up Filling, Manipulator Automatic Cap Removal, Pre-capping And Capping Technology, Driven By Precision Cam Mechanism, Servo Technology Controls Capping Torque, Automatic Cap Sorting Unit And Soundproof Cover, Lifting Filling To Prevent Splashing. |
| Labeling Machine |
The Angle Of The Labeling Head Can Be Adjusted, The Conveying Mechanism Is Designed With Accessories For Positioning The Bottle, Automatic Rolling Label Mechanism, Shoulder Label Automatic Pressing Mechanism. |
| Filling Speed |
25~40 Bottles/min |
| Control System |
PLC Bus Control, HMI |
| PLC |
Siemens 1500 |
| Liquid Supply Level Control |
Controlled By The Host PLC, Peristaltic Pump And Weighing Module, Etc. |
| Air Pressure |
0.6-0.8Mpa |
| Weight |
1000kg |
| Capping Method |
The Cam-driven Mechanical Arm Automatically Take The Cap And Pre-cap It, And Then Turns It To The Next Station For The Second Time Capping. |
| Filling Heads |
2 |
Applications:
PERWIN PW-JYGX211 Diagnostic Reagent Filling Line
PERWIN PW-JYGX211 Diagnostic Reagent Filling Line is a production machine with CE, ISO, GMP, UL, TUV, SGS certifications, and designed for biochemistry and diagnostic reagents filling, capping, labeling and printing. The minimum order quantity is 1 and the price is negotiable. It is packed in export standard wooden cases and the delivery time is 60 working days. The supply ability is 10pcs/month and the key functions include Double-station Follow-up Filling, Manipulator Automatic Cap Removal, Pre-capping And Capping Technology, Driven By Precision Cam Mechanism, Servo Technology Controls Capping Torque, Automatic Cap Sorting Unit And Soundproof Cover, and Lifting Filling To Prevent Splashing. The labeling machine is designed with adjustable angle of the labeling head, conveying mechanism with bottle positioning accessories, automatic rolling label mechanism, and shoulder label automatic pressing mechanism. The capping method is cam-driven mechanical arm for automatic cap removal, pre-capping and capping. Abbott, Innovation Scientific and Toyobo are the representative customers.
Customization:
Diagnostic Reagent Filling Line
Brand Name: PERWIN
Model Number: PW-JYGX211
Place of Origin: Qidong, Jiangsu
Certification: CE, ISO, GMP, UL, TUV, SGS
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
Working flow: Filling + Capping +Labeling + Printing
Labeling machine: The Angle Of The Labeling Head Can Be Adjusted. The Conveying Mechanism Is Designed With Accessories For Positioning The Bottle. Automatic Rolling Label Mechanism. Shoulder Label Automatic Pressing Mechanism.
Bottle Size: 20ml, 30ml, 60ml, 80ml, 100ml
Capping method: The Cam-driven Mechanical Arm Automatically Take The Cap And Pre-cap It, And Then Turns It To The Next Station For The Second Time Capping
Pneumatic components: SMC Or Festo
Keywords:
- Biochemistry reagent filling machine
- Filling and capping machine
- Reagent filling capping machine
- Automatic labeling machine
Support and Services:
Diagnostic Reagent Filling Line Technical Support and Service
We provide technical support and service for our Diagnostic Reagent Filling Line product. Our team of experts is available to answer any questions and provide troubleshooting support. We also offer installation guidance and onsite training to ensure that your product is up and running quickly and efficiently. If you need additional assistance, we offer repair and maintenance services, as well as replacement parts for any defective components. We are committed to providing the highest quality of customer service and technical support for our customers.
FAQ:
- Q. What is the brand name for Diagnostic Reagent Filling Line?
- A. The brand name for Diagnostic Reagent Filling Line is PERWIN.
- Q. What is the model number for Diagnostic Reagent Filling Line?
- A. The model number for Diagnostic Reagent Filling Line is PW-JYGX211.
- Q. Where is Diagnostic Reagent Filling Line manufactured?
- A. Diagnostic Reagent Filling Line is manufactured in Qidong, Jiangsu.
- Q. What certifications are available for Diagnostic Reagent Filling Line?
- A. Diagnostic Reagent Filling Line has CE, ISO, GMP, UL, TUV, and SGS certifications.
- Q. What is the minimum order quantity for Diagnostic Reagent Filling Line?
- A. The minimum order quantity for Diagnostic Reagent Filling Line is 1.
