Advanced Petri Dish Filling Machine with Integrated Servo Stacking and Double-zone Dish

Product Details

Place of Origin: Qidong, Jiangsu

Brand Name: PERWIN

Certification: CE, ISO, GMP, UL, TUV, SGS

Model Number: PW-PP3-650

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Export Standard Wooden Cases

Delivery Time: 60 working days

Payment Terms: TT

Supply Ability: 10pcs/month

Get Best Price
Contact Now
Specifications
Highlight:
Product Name:
Bi-plates Petri Dish Filling Machine
Pure Steam Generator:
100kg/h
Warranty:
1 Year
Production Speed:
Cooling For 5 Minutes, 800 Pieces/hour;
Voltage:
400V, Three Phase, 50~60hz
Inkjet Printing:
The Inkjet Printing Holes At The Bottom Of The Petri Dish Are Reserved In The Conveyor Belt
Light:
Lighting System In The Cooling Area Of The Whole Line
Power Source:
Electric
Product Name:
Bi-plates Petri Dish Filling Machine
Pure Steam Generator:
100kg/h
Warranty:
1 Year
Production Speed:
Cooling For 5 Minutes, 800 Pieces/hour;
Voltage:
400V, Three Phase, 50~60hz
Inkjet Printing:
The Inkjet Printing Holes At The Bottom Of The Petri Dish Are Reserved In The Conveyor Belt
Light:
Lighting System In The Cooling Area Of The Whole Line
Power Source:
Electric
Description

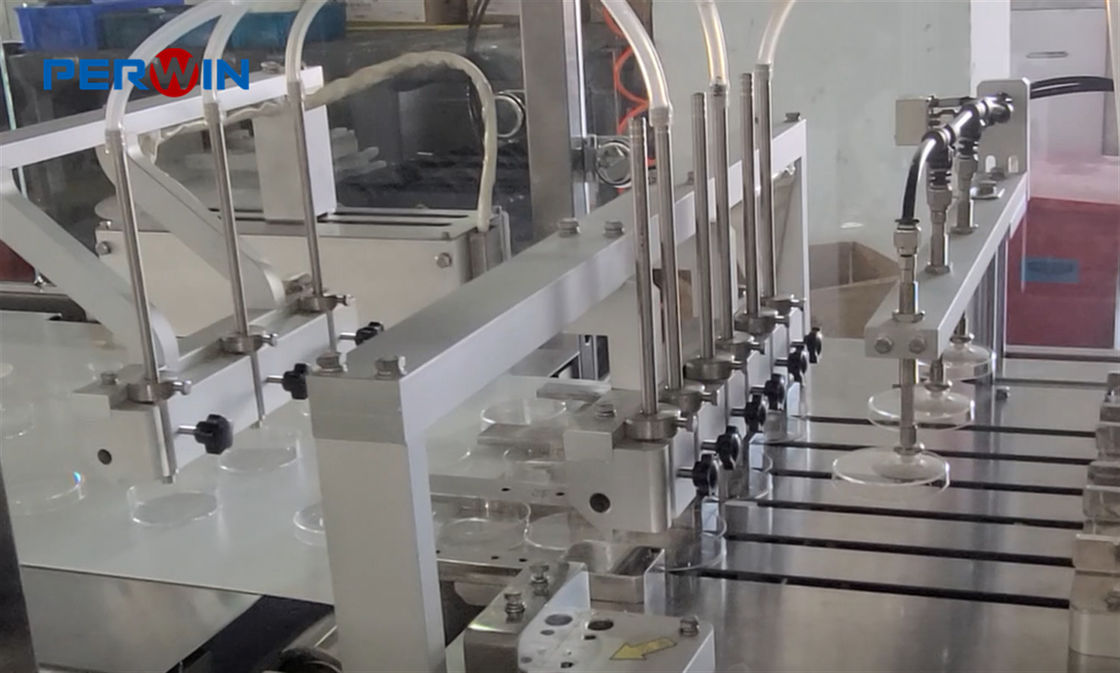

Advanced Petri Dish Filling Machine with Integrated Servo Stacking and Double-zone Dish

Product Description:

The Petri Dish Filling Machine is an automatic apparatus designed for filling petri dishes with a precise volume of liquid. It is equipped with an integrated servo sinking and stacking unit that allows for efficient dish stacking. This machine is capable of filling volumes ranging from 4ml to 70ml, and can be set to a cooling time of 3 to 5 minutes. The single-station stacking method is adopted, allowing for 10 pieces to be packed in a stack. Customers can also set the number of stacking layers independently.

The Petri Dish Filling Robot is the ideal choice for laboratories and research institutes seeking a reliable, efficient, and accurate device to quickly and accurately fill Petri dishes. It is suitable for a wide variety of applications, including medical, biological, and chemical research. Durable and easy to operate, the Petri Dish Filling Apparatus offers users the highest level of accuracy and reliability. The Petri Dish Filling Machine is the perfect choice for any lab looking to quickly and accurately fill Petri dishes.



Features:

  • Petri Dish Filling Machine: A specialized machine used for quickly and accurately filling Petri dishes.
  • Dish stack: The single-station stacking method is adopted, and every 10 pieces are packed in a stack (customers can set the number of stacking layers independently).
  • Capping method: Servo Technology Control fixed-point cap closing.
  • Filling volume: 4ml~70ml.
  • Pure steam generator: 100kg/h.
  • Changeover parts: Equipped with three other specifications. 90mm double-zone dish and 65mm single zone dish.


Technical Parameters:

Technical Parameter Details
Preparation tank 30L, 60L And 100L Agar Sterilization Reactors Per Line (specific Requirements Are As Follows.)
Agar Sterilizers Will Be Used To Prepare A Variety Of Media, With Or Without Blood And/or Supplements. Therefore, Jars Should Be Sterilized For Agar At 121°C For At Least 15 Minutes. Then Cool To 38-45°C And Hold This Temperature Steady For At Least 8 Hours.
With Fluid Input Port The Thermometer Should Be Of The Highest Accuracy, The Mixer Should Have Multiple Levels, Say These Are The Basic Requirements, The Tank Will Be For A Variety Of Agars, Not A Specific Few.
Material SUS304 And SUS316
Lanes 3 Lanes
Weight 1000kgs
Power Consumption 7.5kw
Cooling time 3~5min, Customer Can Set Accordingly.
Light Lighting System In The Cooling Area Of The Whole Line
Sheep blood adding system With One Peristaltic Pump, Blood Bag Storage Rack, Exclusive FFU Area. The Sheep Blood Is Placed On A Special Shelf (with Casters).
Bi-plates filling Servo Mechanism Orientation Unit.
Dish shaking mechanism Especially After Adding Sheep Blood, The Junction Of The Wall Of The Dish Is Clear And Tidy, And The Surface Of The Contents Is Smooth And Clean. Increase The Adhesion Between The Contents And The Wall Of The Vessel, To Ensure That It Does Not Fall Off During Transportation, Storage And Use, And The Quality Is Stable.


Applications:

PERWIN PW-PP3-650 Petri Dish Filling Machine

This PERWIN PW-PP3-650 Petri Dish Filling Machine is designed for the automation of Petri dish filling. It features an advanced Petri dish filling mechanism, servo mechanism orientation unit, dish separating and suction cap mechanism for higher efficiency and accuracy. The machine is equipped with an Inkjet printing system that can reserve holes at the bottom of the Petri dish in the conveyor belt. It is capable of filling 90mm single zone dish, 90mm bi-plates dish, 65mm contact dish and 65mm single zone dish. All of its components are certified with CE, ISO, GMP, UL, TUV, SGS. The minimum order quantity is 1 and the price is negotiable. It has a 1 year warranty and it is packed in export standard wooden cases with delivery time of 60 working days. The supply ability is 10pcs/month. Payment terms are TT.



Customization:

PERWIN PW-PP3-650 Petri Dish Filling Machine

Brand Name: PERWIN

Model Number: PW-PP3-650

Place of Origin: Qidong, Jiangsu

Certification: CE, ISO, GMP, UL, TUV, SGS

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Export Standard Wooden Cases

Delivery Time: 60 working days

Payment Terms: TT

Supply Ability: 10pcs/month

Petri Dish Filling Machine Features:
  • Dish shaking mechanism: Especially After Adding Sheep Blood, The Junction Of The Wall Of The Dish Is Clear And Tidy, And The Surface Of The Contents Is Smooth And Clean. Increase The Adhesion Between The Contents And The Wall Of The Vessel, To Ensure That It Does Not Fall Off During Transportation, Storage And Use, And The Quality Is Stable
  • Product specifications: For 90mm Single Zone Dish, 90mm Bi-plates Dish, 65mm Contact Dish, 65mm Single Zone Dish
  • Filling volume: 4ml~70ml
  • Filling Accuracy: ±1~3%
  • PLC: SIEMENS From Germany
Keywords:

Petri Dish Filling Mechanism, Petri Dish Fill Machine, Petri Dish Filling System, Petri Dish Filling Equipment



Support and Services:

We offer technical support and service for our Petri Dish Filling Machine. Our technical support team is available to answer any questions about the machine or how to use it. We also offer maintenance and repair services for the machine. Our service team can provide assistance with any issues you may have with the machine. We strive to keep your machine running smoothly and efficiently.



FAQ:

Q1: What is the brand of this Petri Dish Filling Machine?

A1: The brand of this Petri Dish Filling Machine is PERWIN.

Q2: What is the model number of this Petri Dish Filling Machine?

A2: The model number of this Petri Dish Filling Machine is PW-PP3-650.

Q3: Where is this Petri Dish Filling Machine made?

A3: This Petri Dish Filling Machine is made in Qidong, Jiangsu.

Q4: What certifications does this Petri Dish Filling Machine have?

A4: This Petri Dish Filling Machine has CE, ISO, GMP, UL, TUV, SGS certifications.

Q5: What is the minimum order quantity for this Petri Dish Filling Machine?

A5: The minimum order quantity for this Petri Dish Filling Machine is 1.
