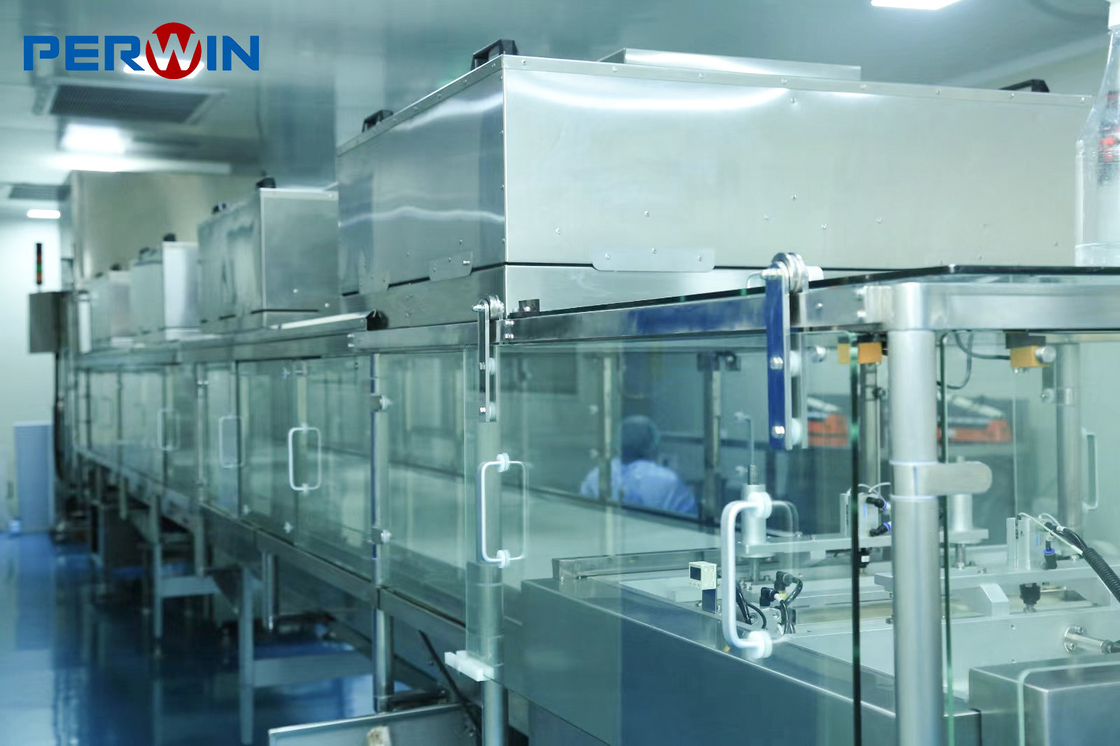

Revolutionize Your Lab s Processes with Bi-plates Petri Dish Filling Equipment

Revolutionize Your Lab s Processes with Bi-plates Petri Dish Filling Equipment

Product Details:

Place of Origin: Qidong, Jiangsu
Brand Name: PERWIN
Certification: CE, ISO, GMP, UL, TUV, SGS
Model Number: PW-PP3-650

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
Get Best Price Contact Now

Detail Information

Product Name: Bi-plates Petri Dish Filling Machine Cooling Time: 3~5min, Customer Can Set Accordingly.
Filling Needle Insulation: Prevent The Liquid At The Filling Needle From Cooling Down Too Fast When The Production Is Suspended, And Prevent The Liquid From Solidifying And Blocking The Filling Needle. Control The Outlet Temperature Of The Stainless Steel Filling Needle At 40~45 ° . Noise Level: ≤75dB
FFU: For Main Machine And For Sheep Blood Area. Filling Method: 6 Sets Of Peristaltic Pumps, Each Driven By A Separate Stepping System, Assembled By Perwin. Operate On The Host's Touch Screen, The Filling Specification Can Be Selected On The Interface, And The Filling Accuracy Of Each Pump Can Be Adjusted Independently
Changeover Parts: Equipped With Three Other Specifications. 90mm Double-zone Dish And 65mm Single Zone Dish. Filling Accuracy: ±1~3%

Product Description

Product Description:

Petri Dish Filling Machine is a fully automated and robotized solution for filling the petri dishes with accurate and precise volumes of liquid. This machine is equipped with a 400V, three-phase, 50~60hz voltage and operates at a noise level of ≤75dB. It offers an automatic operation mode and allows filling volumes ranging from 4ml to 70ml. It is also designed with filling needle insulation to prevent the liquid at the filling needle from cooling down too fast when the production is suspended, and to prevent the liquid from solidifying and blocking the filling needle. The outlet temperature of the stainless steel filling needle is regulated at 40~45°C. Customers can also choose to maintain a certain temperature in the silicone tube. This Petri Dish Filling Automation Robot Machine is ideal for laboratory and research centers for efficient and reliable filling of petri dishes.



Features:

  • Product Name: Petri Dish Filling Machine
  • Operation Mode: Automatic
  • Dish separating: The Dish Separation Mechanism, Upper Suction Cap Mechanism, And Cap Moving Mechanism All Adopt Servo Technology
  • Control System: PLC Bus Control, HMI
  • Preparation tank: 30L, 60L And 100L Agar Sterilization Reactors Per Line (specific Requirements Are As Follows.)
    • Agar Sterilizers Will Be Used To Prepare A Variety Of Media, With Or Without Blood And/or Supplements. Therefore, Jars Should Be Sterilized For Agar At 121°C For At Least 15 Minutes. Then Cool To 38-45°C And Hold This Temperature Steady For At Least 8 Hours.
    • With Fluid Input Port The Thermometer Should Be Of The Highest Accuracy, The Mixer Should Have Multiple Levels, Say These Are The Basic Requirements, The Tank Will Be For A Variety Of Agars, Not A Specific Few.
  • Compressed air: 0.4~0.8Mpa
  • Keywords: Petri Dish Filling Apparatus, Petri Dish Fill Machine, Petri Dish Filling Automation, Petri Dish Filling System, Petri Dish Filling Station


Technical Parameters:

Parameter Specification
Noise Level ≤75dB
Sheep blood adding system With One Peristaltic Pump, Blood Bag Storage Rack, Exclusive FFU Area.The Sheep Blood Is Placed On A Special Shelf (with Casters).
Dish stacking Integrated Servo Sinking And Stacking Unit
Preparation tank 30L, 60L And 100L Agar Sterilization Reactors Per Line (specific Requirements Are As Follows.) Agar Sterilizers Will Be Used To Prepare A Variety Of Media, With Or Without Blood And/or Supplements. Therefore, Jars Should Be Sterilized For Agar At 121°C For At Least 15 Minutes. Then Cool To 38-45°C And Hold This Temperature Steady For At Least 8 Hours. With Fluid Input Port The Thermometer Should Be Of The Highest Accuracy, The Mixer Should Have Multiple Levels, Say These Are The Basic Requirements, The Tank Will Be For A Variety Of Agars, Not A Specific Few.
Bi-plates filling Servo Mechanism Orientation Unit.
Product specifications For 90mm Single Zone Dish, 90mm Bi-plates Dish, 65mm Contact Dish, 65mm Single Zone Dish
Safety Protection SS304 Frame, Tempered Glass
Production speed Cooling For 5 Minutes, 800 Pieces/hour;
PLC SIEMENS From Germany
Compressed air 0.4~0.8Mpa


Applications:

The PERWIN PW-PP3-650 Petri Dish Filling Machine is the perfect choice for laboratories, medical facilities, and research centers that need reliable and efficient filling equipment. With CE, ISO, GMP, UL, TUV, and SGS certifications, this filling machine is made to the highest quality standards. The minimum order quantity is just one machine, and the price is negotiable. Packaging is done with export standard wooden cases, and delivery time is within 60 working days. Payment terms are TT, and the supply ability is 10pcs/month. Safety is also ensured with its SS304 frame and tempered glass. This machine also features a lighting system in the cooling area of the whole line, with a power consumption of 7.5kw.

The Petri Dish Filling Machine excels in its dish shaking mechanism, which makes sure that the junction of the wall of the dish is clear and tidy, and the surface of the contents is smooth and clean. This increases the adhesion between the contents and the wall of the vessel, to ensure that it does not fall off during transportation, storage, and use, and the quality is stable. The integrated servo sinking and stacking unit also guarantees that the dishes are safely and properly stacked.



Customization:

PERWIN PW-PP3-650 Petri Dish Filling Machine
  • Brand Name: PERWIN
  • Model Number: PW-PP3-650
  • Place of Origin: Qidong, Jiangsu
  • Certification: CE, ISO, GMP, UL, TUV, SGS
  • Minimum Order Quantity: 1
  • Price: Negotiable
  • Packaging Details: Export Standard Wooden Cases
  • Delivery Time: 60 working days
  • Payment Terms: TT
  • Supply Ability: 10pcs/month
  • Power Consumption: 7.5kw
  • Material: SUS304 And SUS316
  • Filling Method: 6 Sets Of Peristaltic Pumps, Each Driven By A Separate Stepping System, Assembled By Perwin. Operate On The Host's Touch Screen, The Filling Specification Can Be Selected On The Interface, And The Filling Accuracy Of Each Pump Can Be Adjusted Independently.
  • Filling Speed: 800~1000dishes/hour
  • Product Specifications: For 90mm Single Zone Dish, 90mm Bi-plates Dish, 65mm Contact Dish, 65mm Single Zone Dish

PERWIN PW-PP3-650 Petri Dish Filling Machine is the ideal device for automated Petri Dish filling. It is equipped with 6 sets of peristaltic pumps, each driven by a separate stepping system, assembled by PERWIN. It can operate on the host's touch screen, allowing you to select the filling specification on the interface, and the filling accuracy of each pump can be adjusted independently. It is perfect for filling 90mm Single Zone Dish, 90mm Bi-plates Dish, 65mm Contact Dish, and 65mm Single Zone Dish with a speed of 800~1000dishes/hour. The machine is made of SUS304 and SUS316, and has a power consumption of 7.5kw. It is certified by CE, ISO, GMP, UL, TUV, SGS, and comes with Export Standard Wooden Cases packaging. The minimum order quantity is 1 and the price is negotiable. Delivery time is 60 working days and payment terms are TT. PERWIN PW-PP3-650 Petri Dish Filling Machine is the perfect choice for Petri Dish filling automation.



Support and Services:

Technical Support and Service for Petri Dish Filling Machine

We provide comprehensive technical support and service for the Petri Dish Filling Machine to ensure you get the most out of your product. Our technical support team is highly experienced and knowledgeable about the product and can provide you with quick and efficient assistance.

Product Setup and Troubleshooting

We can provide assistance with product setup and troubleshooting. Our technical support team can help you with any questions or issues you have during the installation and setup process. We are also available to help with any product-related issues or questions you may have after the initial setup is complete.

Maintenance and Repair

We provide maintenance and repair services for the Petri Dish Filling Machine. Our technicians are highly experienced and can help you with any maintenance or repairs that are needed. We can also provide parts and supplies to ensure your product is always in good working condition.

Software Updates and Upgrades

We can provide software updates and upgrades for the Petri Dish Filling Machine. Our team of experts can help you keep your product up-to-date with the latest version of the software. This ensures that your product is always running smoothly and efficiently.

Customer Support

We provide customer support for the Petri Dish Filling Machine. Our customer support team is available to answer any questions or concerns you may have about the product. We can also provide assistance with product registration and warranty information.



FAQ:

Q1: What is the brand name of the Petri Dish Filling Machine?

A1: The brand name of the Petri Dish Filling Machine is PERWIN.

Q2: What is the model number of the Petri Dish Filling Machine?

A2: The model number of the Petri Dish Filling Machine is PW-PP3-650.

Q3: Where is the place of origin of the Petri Dish Filling Machine?

A3: The place of origin of the Petri Dish Filling Machine is Qidong, Jiangsu.

Q4: What certifications does the Petri Dish Filling Machine have?

A4: The Petri Dish Filling Machine has CE, ISO, GMP, UL, TUV, and SGS certifications.

Q5: What is the minimum order quantity of the Petri Dish Filling Machine?

A5: The minimum order quantity of the Petri Dish Filling Machine is 1.
