Efficient Petri Dish Filling Apparatus Filling Volume 4ml-70ml Servo Technology Control

Efficient Petri Dish Filling Apparatus Filling Volume 4ml-70ml Servo Technology Control

Product Details:

Place of Origin: Qidong, Jiangsu
Brand Name: PERWIN
Certification: CE, ISO, GMP, UL, TUV, SGS
Model Number: PW-PP3-15000

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
Get Best Price Contact Now

Detail Information

Inkjet Printing: The Inkjet Printing Holes At The Bottom Of The Petri Dish Are Reserved In The Conveyor Belt Warranty: 1 Year
Product Specifications: For 90mm Single Zone Dish, 90mm Bi-plates Dish, 65mm Contact Dish, 65mm Single Zone Dish Safety Protection: SS304 Frame, Tempered Glass
Production Speed: Cooling For 7 Minutes, 5000Pieces/hour; Filling Speed: 4000~5000dishes/hour
Compressed Air: 0.4~0.8Mpa Power Source: Electric

Product Description

Product Description:

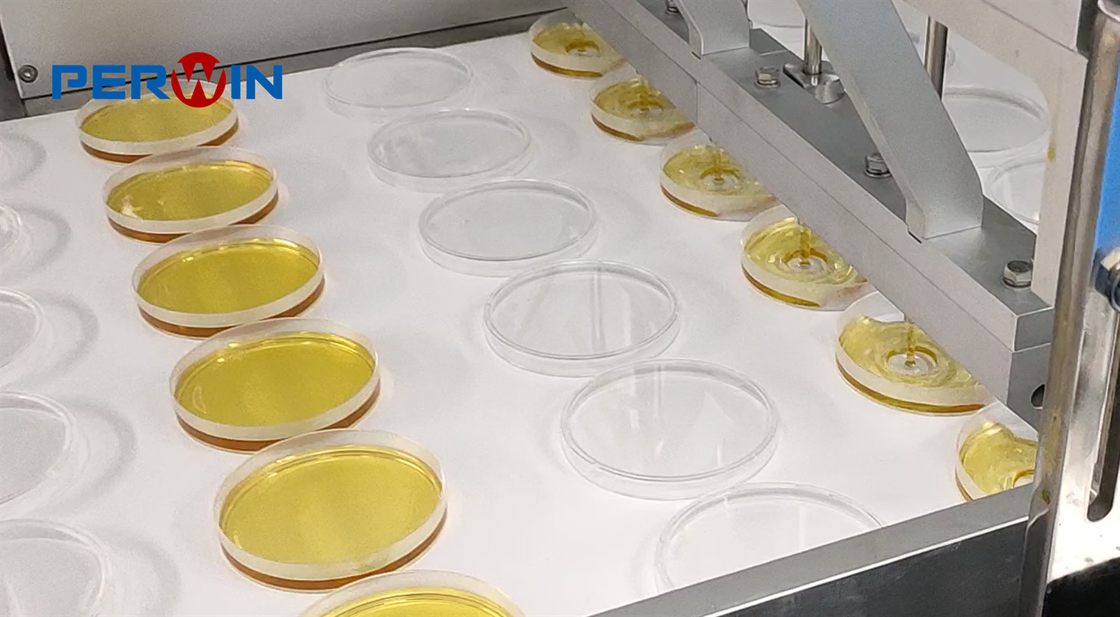

The Petri Dish Filling Machine is designed to automate the process of filling Petri Dishes. It is equipped with a pure steam generator of up to 100kg/h, six lanes, and the ability to change formats within 30 minutes. The power consumption is 7.5 kW and the compressed air required is between 0.4 and 0.8 Mpa. This Petri Dish Filling Mechanism provides a highly automated and efficient process for filling Petri Dishes, and can also be used to fill dishes with a variety of formats. The Petri Dish Filling Automation and Robot offers a reliable and safe solution to fill dishes quickly and accurately. This Petri Dish Filling Machine is an ideal tool for any laboratory or medical facility that needs to fill Petri dishes in a fast and efficient manner.



Features:

  • Product Name: Petri Dish Filling Machine
  • Filling method: 6 Sets Of Peristaltic Pumps, Each Driven By A Separate Stepping System, Assembled By Perwin. Operate On The Host's Touch Screen, The Filling Specification Can Be Selected On The Interface, And The Filling Accuracy Of Each Pump Can Be Adjusted Independently.
  • Control System: PLC Bus Control, HMI
  • Filling Accuracy: ±1~3%
  • PLC: SIEMENS From Germany
  • Inner bag packing: Automatic Packing Machine


Technical Parameters:

Product specifications Description
For 90mm Single Zone Dish, 90mm Bi-plates Dish, 65mm Contact Dish, 65mm Single Zone Dish Petri Dish Filling Robot for various sizes of Petri Dishes
Control System PLC Bus Control, HMI
Bi-plates filling Servo Mechanism Orientation Unit.
Compressed air 0.4~0.8Mpa
FFU For Main Machine And For Sheep Blood Area.
Production speed Cooling For 7 Minutes, 5000Pieces/hour;
Filling needle insulation Prevent The Liquid At The Filling Needle From Cooling Down Too Fast When The Production Is Suspended, And Prevent The Liquid From Solidifying And Blocking The Filling Needle. Control The Outlet Temperature Of The Stainless Steel Filling Needle At 40~45 ° . (customer Can Choose To Maintain A Certain Temperature In The Silicone Tube As Well.)
Filling Speed 4000~5000dishes/hour
Noise Level ≤75dB
Preparation tank 30L, 60L And 100L Agar Sterilization Reactors Per Line (specific Requirements Are As Follows.) Agar Sterilizers Will Be Used To Prepare A Variety Of Media, With Or Without Blood And/or Supplements. Therefore, Jars Should Be Sterilized For Agar At 121°C For At Least 15 Minutes. Then Cool To 38-45°C And Hold This Temperature Steady For At Least 8 Hours. With Fluid Input Port The Thermometer Should Be Of The Highest Accuracy, The Mixer Should Have Multiple Levels, Say These Are The Basic Requirements, The Tank Will Be For A Variety Of Agars, Not A Specific Few.


Applications:

PERWIN PW-PP3-15000 Petri Dish Filling Machine is a reliable and highly efficient device for filling Petri dishes. It is manufactured with strict adherence to CE, ISO, GMP, UL, TUV, SGS standards and has a minimum order quantity of 1. The price is negotiable and product is shipped in export standard wooden cases with delivery time of 60 working days. The machine is capable of filling 90mm single zone dish, 90mm bi-plates dish, 65mm contact dish, 65mm single zone dish with 6 lanes. It also allows fast format changing time of within 30 mins. It is an automatic machine that is capable of supplying 10 pieces/month. A unique feature of this machine is that it can be used with changeover parts such as 90mm single area dish or 90mm bi-plate dish. This machine is widely used in laboratories and research facilities for filling Petri dishes.



Customization:

PERWIN Petri Dish Filling Machine PW-PP3-15000
  • Brand Name: PERWIN
  • Model Number: PW-PP3-15000
  • Place of Origin: Qidong, Jiangsu
  • Certification: CE, ISO, GMP, UL, TUV, SGS
  • Minimum Order Quantity: 1
  • Price: Negotiable
  • Packaging Details: Export Standard Wooden Cases
  • Delivery Time: 60 working days
  • Payment Terms: TT
  • Supply Ability: 10pcs/month
  • Control System: PLC Bus Control, HMI
  • Filling Speed: 4000~5000dishes/hour
  • Compressed air: 0.4~0.8Mpa
  • Filling method: 6 Sets Of Peristaltic Pumps, Each Driven By A Separate Stepping System, Assembled By Perwin. Operate On The Host's Touch Screen, The Filling Specification Can Be Selected On The Interface, And The Filling Accuracy Of Each Pump Can Be Adjusted Independently.
  • Changeover parts: 90mm Single Area Dish, 90mm Bi-plate Dish

PERWIN Petri Dish Filling Machine PW-PP3-15000 is perfect for Petri Dish Filler and Petri Dish Filling System. It is made in Qidong, Jiangsu and is certified with CE, ISO, GMP, UL, TUV, SGS. The minimum order quantity is 1. The delivery time is 60 working days and the payment term is TT. The supply ability is 10pcs/month. The control system is PLC Bus Control, HMI and the filling speed is 4000~5000dishes/hour. The compressed air is 0.4~0.8Mpa and the filling method is 6 Sets Of Peristaltic Pumps. The changeover parts are 90mm Single Area Dish, 90mm Bi-plate Dish.



Support and Services:

Technical Support and Service for Petri Dish Filling Machine

We provide technical support and service for Petri Dish Filling Machine. We offer a wide range of services and support for customers who are using or considering using the Petri Dish Filling Machine. We strive to provide the highest level of service and support for our customers.

Services and Support Offered
  • Installation and setup services
  • Troubleshooting and repair services
  • On-site maintenance services
  • Remote technical support
  • User training
  • Software updates
Contact Information

If you have any questions or need assistance with your Petri Dish Filling Machine, please don't hesitate to contact us at:

Phone: 1-800-555-1234
Email: support@example.com
Website: www.example.com



FAQ:

Q: What is the brand name of this product?
A: The brand name of this product is PERWIN.
Q: What is the model number?
A: The model number is PW-PP3-15000.
Q: Where is this product from?
A: This product is from Qidong, Jiangsu.
Q: What certifications does this product have?
A: This product has CE, ISO, GMP, UL, TUV, SGS certifications.
Q: What is the minimum order quantity?
A: The minimum order quantity is 1.
