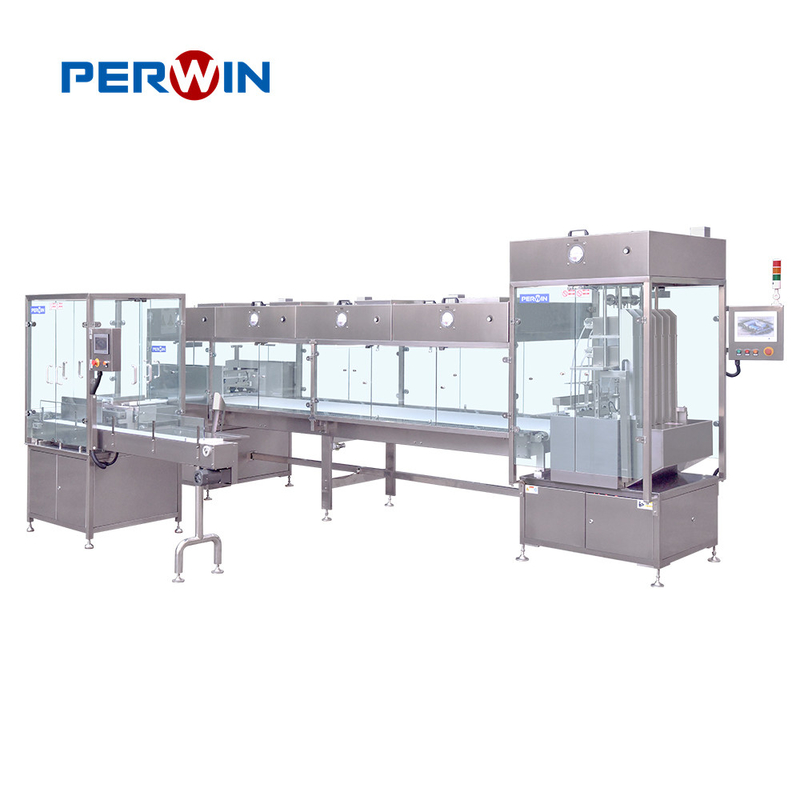

3000 Pieces per Hour Petri Dish Filling Machine with SUS304 and SUS316 Construction
Product Details:
| Place of Origin: | Qidong, Jiangsu |
| Brand Name: | PERWIN |
| Certification: | CE, ISO, GMP, UL, TUV, SGS |
| Model Number: | PW-PP6-7500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export Standard Wooden Cases |
| Delivery Time: | 60 working days |
| Payment Terms: | TT |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Inkjet Printing: | The Inkjet Printing Holes At The Bottom Of The Petri Dish Are Reserved In The Conveyor Belt | Cooling Time: | 3~5min, Customer Can Set Accordingly. |
|---|---|---|---|
| Control System: | PLC Bus Control, HMI | FFU: | For Main Machine And For Sheep Blood Area. |
| Dish Shaking Mechanism: | Especially After Adding Sheep Blood, The Junction Of The Wall Of The Dish Is Clear And Tidy, And The Surface Of The Contents Is Smooth And Clean. Increase The Adhesion Between The Contents And The Wall Of The Vessel, To Ensure That It Does Not Fall Off Dur | Voltage: | 400V, Three Phase, 50~60hz |
| Dish Stacking: | Integrated Servo Sinking And Stacking Unit | Product Name: | Petri Dish Filling System |
Product Description
Product Description:
The Petri Dish Filling Machine is an ideal solution for hospitals and pharmaceutical companies looking to automate their Petri dish filling process. It is designed for efficient and precise filling of Petri dishes, using advanced servo mechanism orientation unit to ensure bi-plates filling. It is also equipped with a cooling system to ensure that the Petri dishes are cooled down in 3 to 5 minutes, which can be set according to customer’s needs. The noise level is kept at a low level of 75dB, and the power consumption is only 7.5kw. With advanced Petri dish filling automation technology, the Petri Dish Filling System is able to improve production speed and accuracy, and reduce time and labor, making it the perfect choice for efficient and fast Petri dish filling.
Features:
- Product Name: Petri Dish Filling Machine
- Noise Level: ≤75dB
- Production speed: Cooling For 3 Minutes, 3000 Pieces/hour
- Warranty: 1 Year
- Voltage: 400V, Three Phase, 50~60hz
- PLC: SIEMENS From Germany
- Petri Dish Filling Mechanism: Automatically Fills Petri Dishes with Accurate Volume
- Petri Dish Fill Machine: Automatically Fills Petri Dishes in an Accurate and Efficient Manner
Technical Parameters:
| Parameter | Details |
|---|---|
| Weight | 1500kgs |
| Warranty | 1 Year |
| Changeover parts | 90mm Single Area Dish, 90mm Bi-plate Dish |
| Pure steam generator | 100kg/h |
| Compressed air | 0.4~0.8Mpa |
| Filling volume | 10~20ml |
| Filling method | 6 Sets Of Peristaltic Pumps, Each Driven By A Separate Stepping System, Assembled By Perwin. Operate On The Host's Touch Screen, The Filling Specification Can Be Selected On The Interface, And The Filling Accuracy Of Each Pump Can Be Adjusted Independently. |
| Light | Lighting System In The Cooling Area Of The Whole Line |
| Dish shaking mechanism | Especially After Adding Sheep Blood, The Junction Of The Wall Of The Dish Is Clear And Tidy, And The Surface Of The Contents Is Smooth And Clean. Increase The Adhesion Between The Contents And The Wall Of The Vessel, To Ensure That It Does Not Fall Off During Transportation, Storage And Use, And The Quality Is Stable |
| FFU | For Main Machine And For Sheep Blood Area. |
Applications:
The PERWIN PW-PP6-7500 Petri Dish Filling Machine is an efficient and reliable solution for filling petri dishes. It is designed with a cooling system in the area of the whole line, a pure steam generator of 100kg/h, an automatic packing machine for inner bag packing, and a filling needle insulation to maintain a certain temperature in the silicone tube and prevent the liquid from solidifying and blocking the filling needle. This machine is capable of a filling speed of 2000~3000dishes/hour, making it an ideal choice for production lines. It is certified by CE, ISO, GMP, UL, TUV, and SGS with a minimum order quantity of 1 and a price that is negotiable. The delivery time is 60 working days and payment terms are TT. It has a supply ability of 10pcs/month and comes with an export standard wooden case for packaging.
Customization:
Brand Name: PERWIN
Model Number: PW-PP6-7500
Place of Origin: Qidong, Jiangsu
Certification: CE, ISO, GMP, UL, TUV, SGS
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
Pure steam generator: 100kg/h
Light: Lighting System In The Cooling Area Of The Whole Line
Compressed air: 0.4~0.8Mpa
Dish stacking: Integrated Servo Sinking And Stacking Unit
Filling volume: 10~20ml
Support and Services:
- Troubleshooting services for installation and operation
- Maintenance and repair services for mechanical and electrical systems
- Training for personnel on Petri dish production techniques
- Technical assistance for product upgrades and software updates
- Software development services for integration with new or existing systems
- 24/7 online support for technical queries and product issues
FAQ:
- Q1: What is the brand name of the Petri Dish Filling Machine?
- A1: The brand name of the Petri Dish Filling Machine is PERWIN.
- Q2: What is the model number of the Petri Dish Filling Machine?
- A2: The model number of the Petri Dish Filling Machine is PW-PP6-7500.
- Q3: Where is the Petri Dish Filling Machine made?
- A3: The Petri Dish Filling Machine is made in Qidong, Jiangsu.
- Q4: What certifications does the Petri Dish Filling Machine have?
- A4: The Petri Dish Filling Machine is certified CE, ISO, GMP, UL, TUV, SGS.
- Q5: What is the minimum order quantity for the Petri Dish Filling Machine?
- A5: The minimum order quantity for the Petri Dish Filling Machine is 1.
