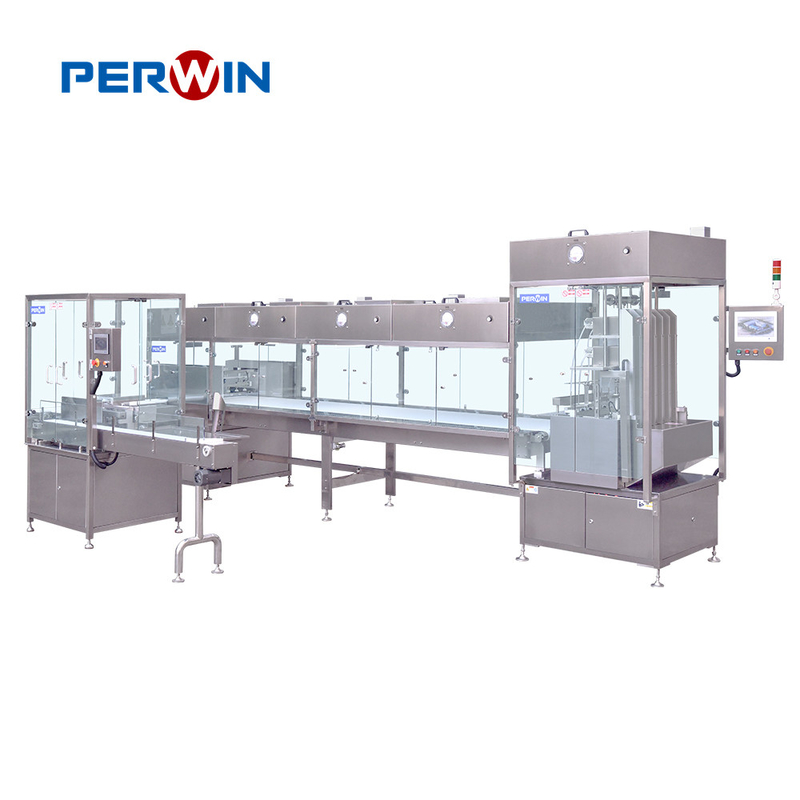

Servo Mechanism Orientation Petri Dish Filling Machine for Pharmaceutical Company

Servo Mechanism Orientation Petri Dish Filling Machine for Pharmaceutical Company

Product Details:

Place of Origin: Qidong, Jiangsu
Brand Name: PERWIN
Certification: CE, ISO, GMP, UL, TUV, SGS
Model Number: PW-PP6-7500

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
Get Best Price Contact Now

Detail Information

FFU: For Main Machine And For Sheep Blood Area. Capping Method: Servo Technology Control Fixed-point Cap Closing.
Operation Mode: Automatic Pure Steam Generator: 100kg/h
Inkjet Printing: The Inkjet Printing Holes At The Bottom Of The Petri Dish Are Reserved In The Conveyor Belt Filling Method: 6 Sets Of Peristaltic Pumps, Each Driven By A Separate Stepping System, Assembled By Perwin. Operate On The Host's Touch Screen, The Filling Specification Can Be Selected On The Interface, And The Filling Accuracy Of Each Pump Can Be Adjusted Independently
Weight: 1500kgs Compressed Air: 0.4~0.8Mpa

Product Description

Product Description:

The Petri Dish Filling Machine is a revolutionary system for filling Petri dishes with liquids. This system uses a PLC from Siemens Germany to ensure precise control over the entire filling process. The dish shaking mechanism ensures that the junction of the wall of the dish is clear and tidy, and the surface of the contents is smooth and clean. This increases the adhesion between the contents and the wall of the vessel, to ensure that it does not fall off during transportation, storage and use, and the quality is stable. The Petri Dish Filling Machine also has changeover parts for 90mm single area dish and 90mm bi-plate dish. In addition, the filling needle insulation is designed to prevent the liquid at the filling needle from cooling down too fast when the production is suspended, and prevent the liquid from solidifying and blocking the filling needle. Control the outlet temperature of the stainless steel filling needle at 40~45 ℃. Customers can also choose to maintain a certain temperature in the silicone tube. This Petri Dish Filling Machine has a main machine length of 7500mm, which is ideal for large scale production.



Features:

  • Product Name: Petri Dish Filling Machine
  • Product specifications: For 90mm Single Zone Dish, 90mm Bi-plates Dish, 65mm Contact Dish, 65mm Single Zone Dish
  • Production speed: Cooling For 3 Minutes, 3000Pieces/hour
  • Bi-plates filling: Servo Mechanism Orientation Unit.
  • Cooling time: 3~5min, Customer Can Set Accordingly.
  • Dish separating: The Dish Separation Mechanism, Upper Suction Cap Mechanism, And Cap Moving Mechanism All Adopt Servo Technology
  • Keywords: Petri Dish Filling Robot, Petri Dish Filler, Petri Dish Filling Equipment


Technical Parameters:

Name Details
Changeover parts 90mm Single Area Dish, 90mm Bi-plate Dish
Filling Accuracy ±1~3%
Capping method Servo Technology Control Fixed-point Cap Closing.
PLC SIEMENS From Germany
Filling material Agar And Sheep Blood
Power Source Electric
Bi-plates filling Servo Mechanism Orientation Unit.
Material SUS304 And SUS316
Main machine length 7500mm
Product Name Petri Dish Filling System


Applications:

The PERWIN PW-PP6-7500 Petri Dish Filling Machine is the perfect solution for automating the filling of Petri dishes. It is the ideal choice for research labs, industrial production, and food manufacturing facilities that require precise and repeatable filling of Petri dishes. Manufactured in Qidong, Jiangsu, this Petri dish filling automation machine is certified to the highest possible standards, including CE, ISO, GMP, UL, TUV and SGS. It comes with a minimum order quantity of 1 and is packaged in export standard wooden cases for maximum protection during shipping. The PERWIN PW-PP6-7500 Petri Dish Filling Machine also has a delivery time of 60 working days and supports payment by TT. With a supply capacity of 10pcs/month, it features 6 lanes, a pure steam generator of 100kg/h, a filling speed of 2000~3000dishes/hour, a low noise level of ≤75dB, and a PLC Bus Control and HMI system.



Customization:

PERWIN PW-PP6-7500 Petri Dish Filling Machine

Brand Name: PERWIN
Model Number: PW-PP6-7500
Place of Origin: Qidong, Jiangsu
Certification: CE, ISO, GMP, UL, TUV, SGS
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
Application: Hospital, Pharmaceutical Company
Safety Protection: SS304 Frame, Tempered Glass
Inner bag packing: Automatic Packing Machine
Power Consumption: 7.5kw
Cooling time: 3~5min, Customer Can Set Accordingly.

This PERWIN PW-PP6-7500 Petri Dish Filling Machine is an ideal apparatus for filling petri dishes. It is highly efficient and reliable, with a SS304 frame and tempered glass safety protection. Featuring an automatic packing machine for inner bag packing, this machine offers a cooling time of 3~5 minutes which can be adjusted to customer’s needs. It consumes 7.5kw of power and is certified by CE, ISO, GMP, UL, TUV, and SGS. It is applicable in hospitals and pharmaceutical companies.



Support and Services:

  • Technical Support:
    • 24/7 Technical Assistance via email and live chat.
    • Telephone support from 9am-5pm EST.
    • Remote access and troubleshooting.
    • Regular software and firmware updates.
  • Services:
    • Installation and setup.
    • Maintenance and repair.
    • Training and certification.
    • Consulting services.
    • Customization and integration.


FAQ:

PERWIN PW-PP6-7500 Petri Dish Filling Machine

A1: Brand Name: PERWIN; Model Number: PW-PP6-7500; Place of Origin: Qidong, Jiangsu.
A2: This product has CE, ISO, GMP, UL, TUV, and SGS Certifications.
A3: The Minimum Order Quantity is 1.
A4: The Price of this product is Negotiable.
A5: Packaging Details: Export Standard Wooden Cases; Delivery Time: 60 working days; Payment Terms: TT; Supply Ability: 10pcs/month.
