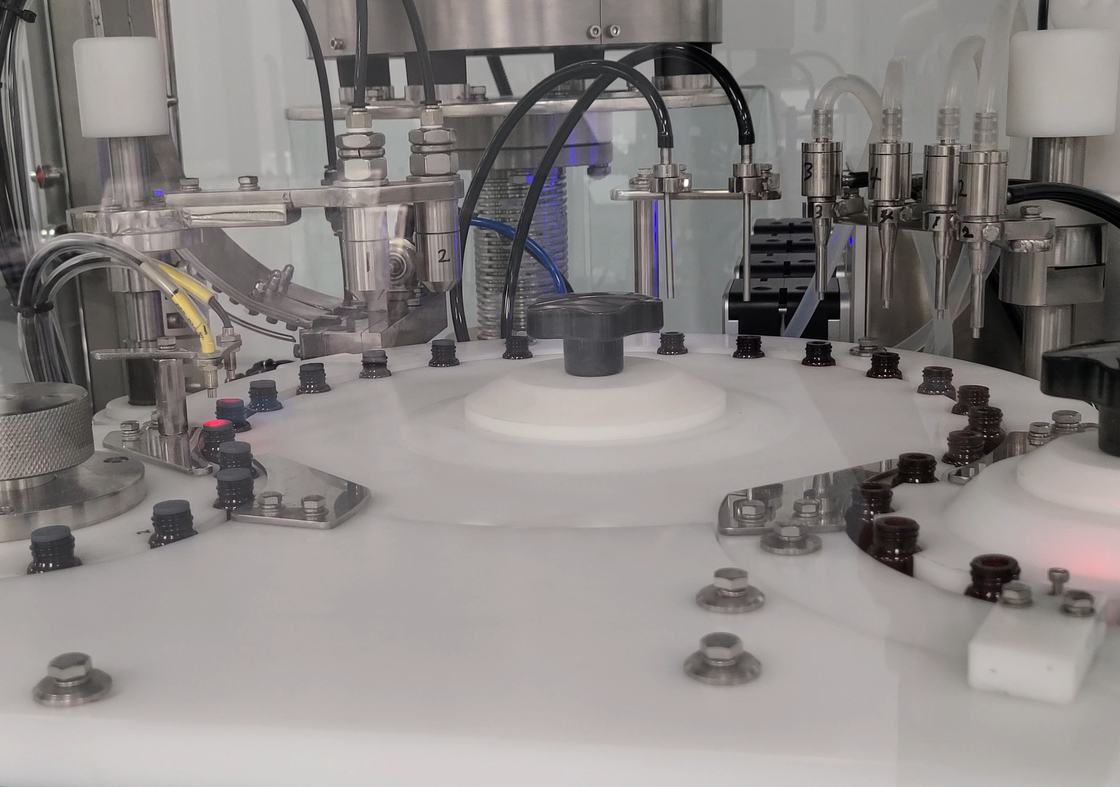

Automatic Vial Filling Machine With Leakage Detection And SMART Labeler 600mm Buffer
Product Details:
| Place of Origin: | Qidong, Jiangsu |
| Brand Name: | PERWIN |
| Certification: | CE, ISO, GMP, UL, TUV, SGS |
| Model Number: | PW-HWGX220 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export Standard Wooden Cases |
| Delivery Time: | 60 working days |
| Payment Terms: | TT |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Pneumatic Components: | Festo Or SMC | Labeling Machine: | Vertical Round Vial Labeling Machine, Equipped With A 600mm Buffer Turntable, Which Can Change The Label Roll Without Stopping The Upstream Equipment |
|---|---|---|---|
| Filling Method: | Positioning Filling; In Order To Meet The Production Capacity, The 10ml Specification Product Is Filled Twice, 5ml Each Time, Each Time Is Filled By An Independent Peristaltic Pump | Online Detect: | Leaked Filling, Detection And Rejection Of Bottles With No Bungs |
| Vial Volume: | 5ml And 10ml Glass Vials(filling From 0.5ml To 10ml) | Printer: | Thermal Transfer Printer; Zebra; ZE500-4-3 300dpi |
| Filling Accuracy: | ±0.5% | Security: | The Main Body Of The Filling And Capping Machine Is Equipped With 304 Stainless Steel Frame And Tempered Glass. Alarm Information, Door Open Shutdown; Emergency Stop Device, Etc |
| High Light: | SMART Labeler Vial Filling Machine,600mm Buffer Vial Filling Machine,Leakage Detection Vial Filling Machine |
||
Product Description
Product Description:
The working process of the Vial Bottling Equipment includes Vial Loading on the 600mm Turntable, double-station argon filling twice and liquid filling, double-station automatic stoppering, and detection and rejection station. The half stoppering collection station is also included in the process. Additionally, the products which were frozen drying are loaded on a 600mm turntable, followed by a double-station capping machine that pre-screws the cap and caps it. The customer can also opt for a 600mm labeling buffer turntable and a small round vial vertical labeling machine.
The HMI of the Vial Filling Machine is either Schneider or Siemens, depending on the customer's preference. The machine also features a double station stoppering system, which allows the mechanical arm to suck the rubber stoppers of the two channels respectively with negative pressure and swings 90° to press them on the bottle mouth. The system can complete partial stoppering and full stoppering process requirements as required.
The Vial Filling Line Assembly comes with a Thermal Transfer Printer, Zebra, ZE500-4-3 300dpi, which ensures that the products are labeled accurately and legibly. With its reliable performance, efficient working process, and hygienic environment, the Vial Filling Line Assembly is an ideal solution for the pharmaceutical industry's needs.
Features:
- Product Name: Vial Filling Line
- PLC: Schneider Or Siemens
- Labeling machine: Vertical Round Vial Labeling Machine, Equipped With A 600mm Buffer Turntable, Which Can Change The Label Roll Without Stopping The Upstream Equipment
- Metering method: Four-channel Longer DPOFLEXTM PFS Precision Peristaltic Pump; Filling 30µl~10ml; Accuracy Is ±0.5%; Each Channel Can Be Set And Adjusted Independently; 7-inch High-definition LCD Screen. (21 CFR Part 11 And EU Annex 11 Standards)
- Online detect: Leaked Filling, Detection And Rejection Of Bottles With No Bungs
- Double station stoppering: The Mechanical Arm Sucks The Rubber Stoppers Of The Two Channels Respectively With Negative Pressure And Swings 90° To Press Them On The Bottle Mouth. Partial Stoppering And Full Stoppering Process Requirements Can Be Completed As Required
Keywords: Vial Filling System, Vial Packaging Line, Vial Filling Production Line
Technical Parameters:
| Filling method | Positioning Filling; 10ml is filled twice, 5ml each time, each time is filled by an independent peristaltic pump |
| Full bunging | After filling and stoppering, it directly enters the capping machine for capping |
| PLC | Schneider or Siemens |
| Labeling machine | Vertical Round Vial Labeling Machine, equipped with a 600mm buffer turntable, which can change the label roll without stopping the upstream equipment |
| Laminar flow hood | Equipped with two sets of laminar flow hoods, covering the filling and stoppering area. If the product is a sterile product, a set of laminar flow hoods (optional function) can be added to cover the partial bunging collection station |
| Online detect | Leaked filling, detection and rejection of bottles with no bungs |
| Compressed air | 0.4～0.7Mpa |
| Main motor | ABB |
| Vial loading method | 600mm Turntable |
| Filling range | 0.5ml~10ml |
Applications:
The PERWIN PW-HWGX220 Vial Filling Line is a highly efficient and reliable machine for filling 5ml and 10ml glass vials with liquids. This product is manufactured in Qidong, Jiangsu and is certified with CE, ISO, GMP, UL, TUV, SGS certifications. The machine can detect leaked filling and reject bottles with no bungs, ensuring high quality and accurate filling. The main motor used in the machine is from ABB, which guarantees a long service life and stable performance.
This vial filling line is suitable for a variety of applications and occasions. It is ideal for pharmaceutical companies, research laboratories, and biotech companies for filling vaccines, antibiotics, and other pharmaceutical products. It is also suitable for filling cosmetic products such as serums, oils, and perfumes. The machine can handle filling volumes ranging from 0.5ml to 10ml, making it versatile for different products.
The PW-HWGX220 vial filling line is designed to work seamlessly with a vial labeling system and a vial sealing machine, allowing for a complete packaging process. The machine can perform full bunging after filling and stoppering, which enables it to directly enter the capping machine for capping. This saves time and increases efficiency. If the product is to be freeze-dried, it needs to be collected in trays after partial bunging.
The minimum order quantity for this product is 1, and the price is negotiable. The packaging details are export standard wooden cases, ensuring safe and secure transportation. The delivery time is 60 working days, and the payment terms are TT. The supply ability is 10pcs/month, ensuring that the product is readily available for customers.
Support and Services:
The Vial Filling Line product is designed to meet the needs of pharmaceutical manufacturers seeking a reliable and efficient solution for filling vials. Our technical support team is available to assist with setup, installation, and troubleshooting of the product. We also offer regular maintenance and calibration services to ensure optimal performance and compliance with industry regulations. Our team is knowledgeable in both the hardware and software components of the product and can provide comprehensive training to operators and maintenance staff. Additionally, we offer customization options to meet specific production requirements and can provide consultation services for process optimization. Contact us for more information on our technical support and services.
