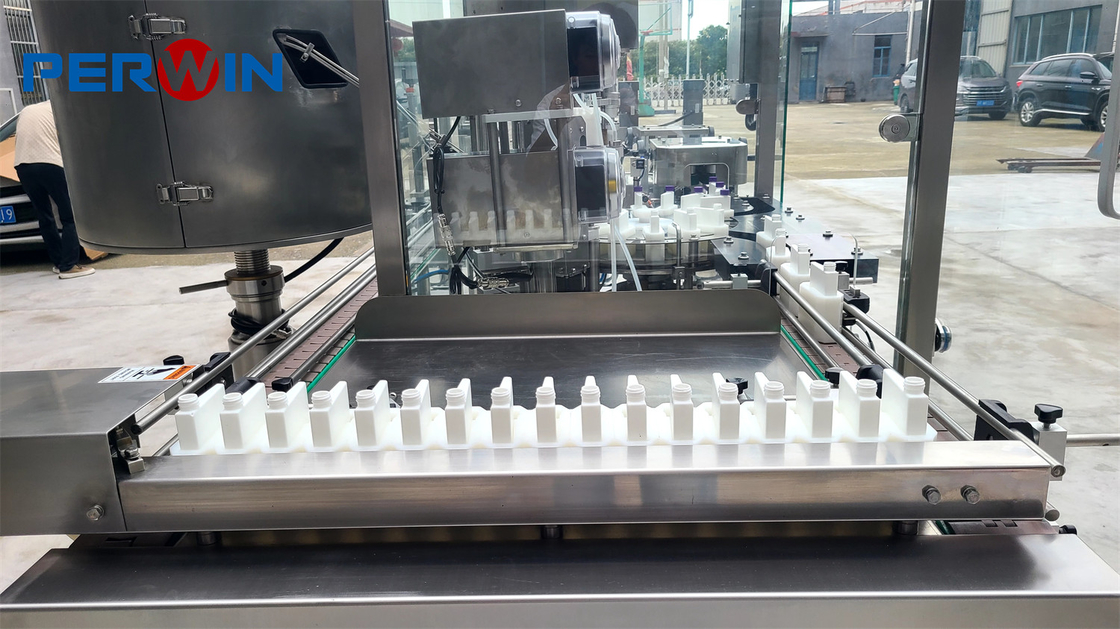

Diagnsotic Reagent Filling Capping Labeling Line With Siemens Touch Screen
Product Details:
| Place of Origin: | Qidong, Jiangsu |
| Brand Name: | PERWIN |
| Certification: | CE, ISO, GMP, UL, TUV, SGS |
| Model Number: | PW-JSGX220 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export Standard Wooden Cases |
| Delivery Time: | 60 working days |
| Payment Terms: | TT |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Liquid Supply Method (Customer Optional): | A Pipeline Infusion Pump Is Configured To Draw The Liquid From The Customer's Larger Liquid Supply Transfer Tank (or Preparation Tank), Send It To A Smaller Container (such As 10L), And Supply It To The Second Set Of Peristaltic Pumps At The Filling Statio | Cap Sorting Method: | Cap Vibration Bowl + Sound Insulation Cover |
|---|---|---|---|
| Production Capacity Requirements: | 28~40 Bottles/minute (according To Actual Test) | Compressed Air: | 0.4~0.8MPA |
| Product Name: | Biochemistry Reagent Filling Capping And Labeling Line | Rectangular(smaller Bottle) Labeling: | Two Small Bottles Need To Be Labeled On Four Sides. They Cannot Share The Same Labeling Machine With The Other Two Large Bottles. Therefore, It Is Recommended To Purchase A Semi-automatic Labeling Machine With Manual Bottle Placement For Smaller Bottles. |
| Capping Torque Control: | Servo Technology | Detection Method: | Missing Filling, Abnormal Filling (obviously Less Filling), No Cap Or Crooked Cap. Detect And Reject |
| High Light: | Reagent Filling Capping Labeling Line,Diagnsotic Reagent Filling Capping Labeling Line |
||
Product Description
Product Description:
The product is designed to operate at a voltage and HZ of 208V 60Hz, making it suitable for use in a variety of settings. The production line features the use of bottle holders that save time and speed in product format changeover, making production smoother, saving a lot of labor costs, and is extremely cost-effective. Because there are four specifications of bottles, changing specifications is troublesome and time-consuming, so the bottle holder (fixture) method is used. The four bottle holders have the same appearance and size, and the bottle holder can correct the four bottles to the same appearance (same height, same bottle mouth center). This eliminates the need to replace parts or adjust the star wheel of the incoming and outgoing equipment and the conveyor belt track. There is no need to mechanically adjust or replace parts for filling and capping. You only need to replace the bottle holder and click the buttons to select different filling specifications on the HMI.
The reagent filler and capper is designed to detect missing filling, abnormal filling (obviously less filling), no cap or crooked cap. It can detect and reject any issues, ensuring the product is of high quality. The flat (bigger) bottle labeling is also a feature of this product. The conveyor belt of the labeling machine has a certain inclination angle with the horizontal plane, and accessory stops are installed at regular intervals to facilitate bottle positioning. The barcode side label uses a reciprocating mechanism driven by a servo motor to apply the label flatly.
The Biochemistry Reagent Filling Capping and Labeling Line is a versatile product that can be used in a variety of settings. It is ideal for use in the pharmaceutical industry where accuracy and efficiency are essential. The product is designed to be easy to operate and maintain, making it a very cost-effective solution. The reagent filler and capper, reagent filler, and biochemistry reagent filler are some of the keywords that can be associated with this product.
Features:
- Product Name: Diagnostic Reagent Filling Line
- Production line composition:
- Filling And Capping All-in-one Machine
- Labeling Machine (labeling Two Large Bottles)
- Semi-automatic Labeling Machine (labeling Two Small Bottles)
- Capping torque control: Servo Technology
- Voltage and HZ: 208V 60Hz
- Main low voltage electrical: Schneider From France
- Total power: Around 6.5KW
Our Diagnostic Reagent Filling Line is perfect for filling and capping biochemistry reagents. With an all-in-one machine, labeling machine for large bottles, and semi-automatic labeling machine for small bottles, this filler is perfect for your needs. Capping torque control is enabled by our servo technology, ensuring a perfect seal every time. The main low voltage electrical components are from Schneider in France, ensuring reliability and safety. Voltage and HZ specifications are 208V 60Hz, and the total power consumption is around 6.5KW.
Technical Parameters:
| Product Name | Biochemistry Reagent Filling Capping And Labeling Line |
| Bottle and Bottle Holder Separating | The Clamping Conveyor Mechanism Automatically Separates The Bottle Body And The Bottle Holder. The Bottle Enters Another Conveyor Belt Along The Sliding Track, And The Bottle Holder Returns To The Bottle Insertion Station Along The Circulating Conveyor Belt. |
| Pneumatic Components | SMC From Japan |
| Main Low Voltage Electrical | Schneider From France |
| PLC | Siemens From Germany |
| Printer | Configuring Videojet VJ6330 Thermal Transfer Printing |
| Actual Filling Volume | 10ml And 40ml |
| Total Power | Around 6.5KW |
| Voltage and HZ | 208V 60Hz |
| Main Customers | Roche, Abbott, Nihon Khoden, Randox, Mindray Etc. |
Applications:
The diagnostic reagent filling machine is suitable for various occasions and scenarios, including filling diagnostic reagents, biochemistry reagents, and other medical products. It is perfect for use in research and testing laboratories, hospitals, clinics, and other healthcare facilities.
The Cam Mechanism Drives The Mechanical Arm To Automatically Pick Up And Deliver The Caps. This makes it easy to use and helps to increase productivity. The machine is also equipped with a servo motor from Panasonic in Japan, which ensures smooth operation and high accuracy.
The diagnostic reagent filling machine is ideal for main customers such as Roche, Abbott, Nihon Khoden, Randox, Mindray Etc. It has a flat (bigger) bottle labeling feature that is perfect for positioning bottles. The conveyor belt of the labeling machine has a certain inclination angle with the horizontal plane, and accessory stops are installed at regular intervals to facilitate bottle positioning. The barcode side label uses a reciprocating mechanism driven by a servo motor to apply the label flatly.
The diagnostic reagent filling machine is also equipped with compressed air at 0.4~0.8MPA. This ensures that the machine operates smoothly and efficiently. The machine has a minimum order quantity of 1 and comes with a negotiable price. It is packaged in export standard wooden cases and has a delivery time of 60 working days. Payment terms are TT, and the machine has a supply ability of 10pcs/month.
Customization:
The cap sorting method for this reagent filling capping machine is Cap Vibration Bowl + Sound Insulation Cover. The measurement method is 2 Peristaltic Pumps, each pump is controlled by an independent stepper motor, and the filling accuracy is ±1~2%. The setup and operation are done on a touch screen from Siemens, Germany. The main low voltage electrical component used is Schneider from France.
Our main customers include Roche, Abbott, Nihon Khoden, Randox, Mindray Etc. Contact us today to discuss your unique product customization needs for the PW-JSGX220 Diagnostic Reagent Filling Line.
Support and Services:
Our Diagnostic Reagent Filling Line product comes with comprehensive technical support and services to ensure the smooth operation and maintenance of the equipment. Our team of experienced technicians and engineers is available to provide assistance in the installation, training, and troubleshooting of the product.
We offer on-site technical support to assist with the setup and commissioning of the filling line, as well as remote support to troubleshoot any issues that may arise during operation.
In addition, we provide regular maintenance services to ensure the filling line remains in optimal condition. This includes preventive maintenance, calibration, and replacement of parts as needed.
Our technical support and services are designed to maximize the uptime of the filling line and minimize any disruptions to your production process.
FAQ:
Q1: What is the brand name of the Diagnostic Reagent Filling Line?
A1: The brand name is PERWIN.
Q2: What is the model number of the Diagnostic Reagent Filling Line?
A2: The model number is PW-JSGX220.
Q3: Where is the Diagnostic Reagent Filling Line manufactured?
A3: The Diagnostic Reagent Filling Line is manufactured in Qidong, Jiangsu.
Q4: What certifications does the Diagnostic Reagent Filling Line have?
A4: The Diagnostic Reagent Filling Line is certified by CE, ISO, GMP, UL, TUV, SGS.
Q5: What is the minimum order quantity of the Diagnostic Reagent Filling Line and how is it packaged?
A5: The minimum order quantity is 1 and it is packaged in Export Standard Wooden Cases.
Q6: What is the delivery time and payment terms of the Diagnostic Reagent Filling Line?
A6: The delivery time is 60 working days and the payment terms are TT.
Q7: What is the supply ability of the Diagnostic Reagent Filling Line?
A7: The supply ability is 10pcs/month.
