SGS Liquid Filling Line Medical Diagnostic Reagent Bottle / Biochemistry Bottle Filling Line
Product Details:
| Place of Origin: | Jiangsu China |
| Brand Name: | PERWIN |
| Certification: | CE SGS ISO9001 TUV |
| Model Number: | PW-GX515 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 30000~50000 |
| Packaging Details: | Export wooden cases |
| Delivery Time: | 60~90 working days |
| Payment Terms: | T/T |
| Supply Ability: | 5sets/month |
|
Detail Information |
|||
| Product Name: | Medical Diagnostic Reagent Bottle Filling Line/automatic Biochemistry Bottle Filling Line | Filling Range: | 20~150 Ml |
|---|---|---|---|
| Filling Method: | Peristaltic Pump Or Customized | Filling Accuracy: | ±1% |
| Capacity: | 35~50PCS/M, 70~80PCS/M | Customers From: | Australia, USA, Canada, China |
| Warranty: | 1 Years | Certificate: | CE, SGS, TUV, ISO9001 |
| High Light: | aseptic filling machine,vial liquid filling machine |
||
Product Description
SGS Liquid Filling Line Medical Diagnostic Reagent Bottle / Biochemistry Bottle Filling Line
The Automatic Biochemistry Diagnostic Reagents Filling Machine was, our patented product, specially designed for Biochemistry Diagnostic Reagent filling capping and labeling.
Technical Features of Automatic Biochemistry Diagnostic Reagents Filling Machine :
1.This production Line can be used for various types of diagnostic reagent bottle with single-time to complete filling and capping, connected with specially designed labeling machine.
2.According to the characteristics of disparity of shape, Waddled, various of specification for the shaped bottle of Biochemistry Diagnostic Reagent, bottle holders used for adjust the bottle neck to the same level and the same outer dimension of working astrolabe, so that no parts needed to be changed when shifting the different specification of products (if the same cap specification)

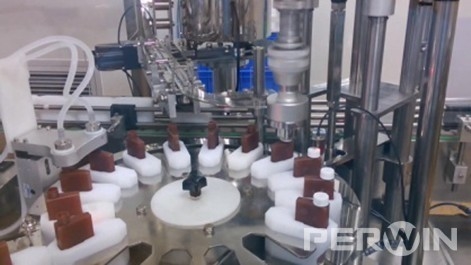

in vitro diagnostic reagent filling machine I
3.The unique “Following Filling Technology “realize one time of filling for large doses of Biochemistry Diagnostic Reagent to ensure the accuracy of filling and upgrade the quality of product.
4.Diving filling (under the surface of liquid) when the machine running to prevent liquid blister or spill.
5.Having the function of alarm and stop working when bottle shortage or fallen, not in right position, lack of bottle and the function of not grabbing cap and capping when no bottle.
6.Specially designed manipulator to take and send the cap reliably and stably and greatly improve the capping quality.
7.Adopting precision servo technology to control torsion of capping.
8.Monitor function make the operator to view clearly the working situation, easily operation and maintenance. In addition to sound and light alarm, the dynamic display of alarm and its position as well as the cause of alarm on the human-machine interface (HMI).
9.The main body of machine is made of SUS 304 stainless steel and aluminum alloy etc. and the designing is complied with GMP.
in vitro diagnostic reagent filling machine II
The Main Parameters of Automatic Biochemistry Diagnostic Reagents Filling Machine:
| Product name | in vitro diagnostic reagent filling machine |
| Filling Range | 20~150 ml |
| Capacity | 35~50PCS/M, 70~80PCS/M |
| Measuring Type | Peristaltic pump or customized |
| Filling Accuracy | Customized |
| Voltage | 380V 50Hz |
| Power | 2.25 Kw |
| Compressed Air | 0.5~0.8Mpa 40~50L/min |
| Weight | 1000kg |
| Dimension | 4200*1600*2000 mm |
