CIP System Available Animal Vaccine Filling Line - 220V/380V Power Supply - 1 Year

Product Details

Place of Origin: Qidong, Jiangsu

Brand Name: PERWIN

Certification: CE, ISO, GMP, UL, TUV, SGS

Model Number: PW-ZGS610

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Export Standard Wooden Cases

Delivery Time: 60 working days

Payment Terms: TT

Supply Ability: 10pcs/month

Get Best Price
Contact Now
Specifications
Highlight:

220V Animal Vaccine Filling Line

,

1 Year Animal Vaccine Filling Line

,

380V Animal Vaccine Filling Line

Buffer Tank:
Weigh Module Controls High And Low Liquid Levels
Weight:
Customized
Quality Control:
No Stopper Rejection; No Alu Cap Rejection; Less Fill And Over Fill Rejection
Filling Material Features:
Animal External Medicine (animal Skin Medicine),flowable Liquid Like Water.
Detection And Rejection:
No Stopper And No Cap Detection And Rejection Automatically
Cap Feeding:
Vibratory Bowl
Stoppering Feeding:
Vibratory Bowl
Material:
Stainless Steel
Buffer Tank:
Weigh Module Controls High And Low Liquid Levels
Weight:
Customized
Quality Control:
No Stopper Rejection; No Alu Cap Rejection; Less Fill And Over Fill Rejection
Filling Material Features:
Animal External Medicine (animal Skin Medicine),flowable Liquid Like Water.
Detection And Rejection:
No Stopper And No Cap Detection And Rejection Automatically
Cap Feeding:
Vibratory Bowl
Stoppering Feeding:
Vibratory Bowl
Material:
Stainless Steel
Description
CIP System Available Animal Vaccine Filling Line - 220V/380V Power Supply - 1 Year

Product Description:

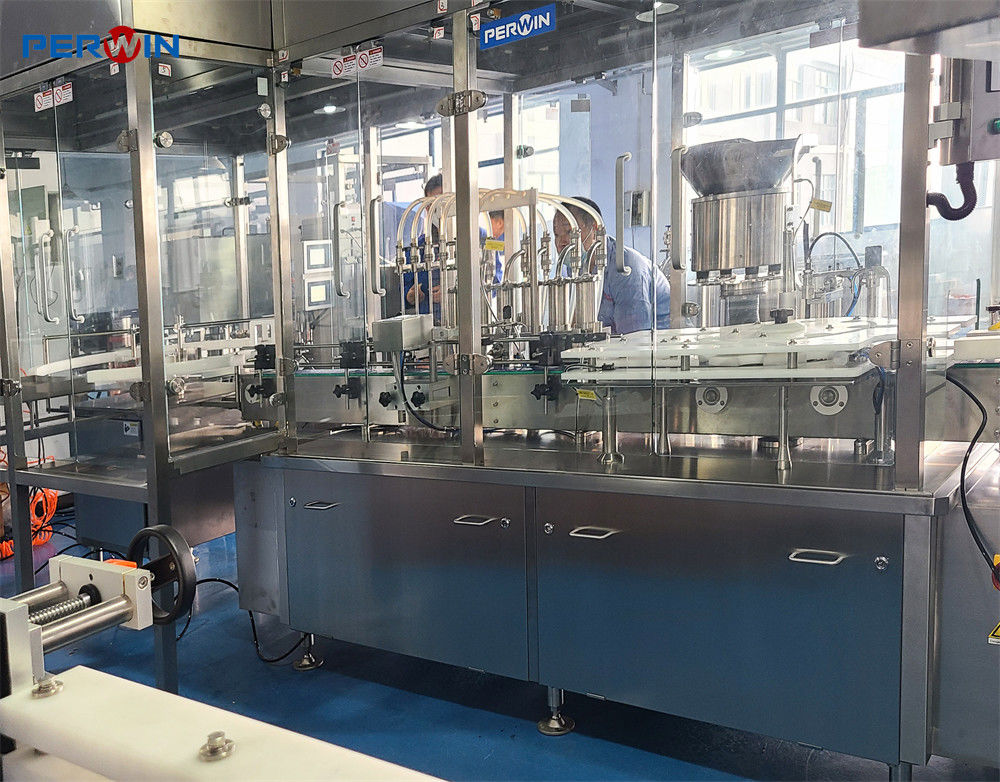

The animal vaccine filling line is a fully automated production solution for animal vaccine production. It is composed of an integrated PLC intelligent linkage of the whole machine, as well as touch screen control and counting functions. The compressed air requirement is between 0.4 ~ 0.8Mpa. The cap feeding is achieved through a vibratory bowl, and filling method is achieved by 316L piston cylinders, each group of pumps being individually controlled by a servo motor, operated on the touch screen of the main machine. Additionally, for accurate liquid levels, a weigh module is used to control high and low liquid levels in the buffer tank.

This animal vaccine filling line is designed to offer high precision and reliability, and the PLC intelligent linkage ensures greater control and accuracy. The touch screen control and counting function provides for an easy to use and intuitive control system, while the 316L piston cylinder and servo motor allow for accurate filling of the vaccine. The vibratory bowl and weigh module further add to the precision and reliability of the filling line.

This animal vaccine filling line is a perfect choice for animal vaccine production, offering high precision, reliability, and accuracy. It is designed for maximum efficiency and productivity, making it an ideal solution for production of animal vaccines.



Features:

  • Product Name: Animal Vaccine Filling Line
  • Dimension: Customized
  • Stoppering method: Precise CAM-driven Mechanical Arm Negative Pressure Plug Taking And Stoppering
  • CIP System: Available
  • Power Supply: 220V/380V


Technical Parameters:

Product Attribute Description
Filling Method 316L Piston Cylinder, Each Group Of Pumps Is Individually Controlled By A Servo Motor, Operated On The Touch Screen Of The Main Machine
Quality Control No Stopper Rejection; No Alu Cap Rejection; Less Fill And Over Fill Rejection
Dimension Customized
Safety Cover Standard Equipment Safety Cover: 304 Stainless Steel Frame And Tempered Glass, Emergency Stop Device Etc.
Detection and Rejection No Stopper And No Cap Detection And Rejection Automatically
Filling Speed 30pcs/min
Buffer Tank Weigh Module Controls High And Low Liquid Levels
Cap Feeding Vibratory Bowl
Control Method PLC Intelligent Linkage Of The Whole Machine, Touch Screen Control, With Counting Function
Control System PLC Bus Control


Applications:

The PERWIN PW-ZGS610 Animal Vaccine Filling Line is an advanced, fully automated machine designed to accurately and efficiently complete the vaccine filling and capping process. This machine is manufactured with the highest quality materials and is certified by CE, ISO, GMP, UL, TUV and SGS. It has a minimum order quantity of 1, and is priced to be negotiable. It comes with an export standard wooden case for packaging and delivery typically takes 60 working days. Payment terms are TT and the supply ability is 10pcs/month.

The machine features 12 groups of 316L piston pumps, each driven by a servo motor that accurately and stably controls the filling needle. It has an automatic filling system, a vibratory bowl stoppering feeding system and a 12-channel dispenser. The mechanical arm automatically removes the stopper and presses the stopper, and there is a counting function for added accuracy. The equipment safety cover is made of 304 stainless steel and tempered glass. Key features include a filling needle lifting type filling, filling needle deviation alarm stop function, and more.



Customization:

Animal Vaccine Filling Line
Product Description:

PERWIN PW-ZGS610 Animal Vaccine Filling Line is an automated Animal Vaccine Filling and Capping Machine. It offers an efficient and safe solution for Animal Vaccine filling and capping. The line is equipped with a precise CAM-driven mechanical arm negative pressure plug taking and stoppering, an aluminum cap unscrambler machine, a three-knife cap rolling machine, a counting function equipment, a safety cover, a label remaining detection and alarm function, and other customized features. The dimension and weight of the line is customizable.

Product Features:
  • Brand Name: PERWIN
  • Model Number: PW-ZGS610
  • Place of Origin: Qidong, Jiangsu
  • Certification: CE, ISO, GMP, UL, TUV, SGS
  • Minimum Order Quantity: 1
  • Price: Negotiable
  • Packaging Details: Export Standard Wooden Cases
  • Delivery Time: 60 working days
  • Payment Terms: TT
  • Supply Ability: 10pcs/month
  • Stoppering Method: Precise CAM-driven Mechanical Arm Negative Pressure Plug Taking And Stoppering
  • Crimping Machine: Aluminum Cap Unscrambler Machine. Three-knife Cap Rolling Machine. Counting Function Equipment
  • Safety Cover: 304 Stainless Steel, Tempered Glass
  • Dimension: Customized
  • Weight: Customized
  • Labeling Machine: Label Remaining Detection And Alarm Function


Support and Services:

At Animal Vaccine Filling Line, we provide comprehensive technical support and services to ensure the best performance of our products. Our team of experienced engineers and technicians are available to provide assistance with installation, commissioning, maintenance, and repairs. We are also available to provide remote troubleshooting and support for our products. We provide ongoing technical support and training to our customers, so they can stay up-to-date with the latest developments in our product line. Additionally, we offer service contracts for preventive maintenance and priority response in the event of product failure.



FAQ:

Q: What is the brand name of the Animal Vaccine Filling Line?
A: The brand name of the Animal Vaccine Filling Line is PERWIN.
Q: What is the model number of the Animal Vaccine Filling Line?
A: The model number of the Animal Vaccine Filling Line is PW-ZGS610.
Q: Where is the Animal Vaccine Filling Line manufactured?
A: The Animal Vaccine Filling Line is manufactured in Qidong, Jiangsu.
Q: What certifications does the Animal Vaccine Filling Line have?
A: The Animal Vaccine Filling Line has CE, ISO, GMP, UL, TUV, and SGS certifications.
Q: What is the minimum order quantity for the Animal Vaccine Filling Line?
A: The minimum order quantity for the Animal Vaccine Filling Line is 1.
