Product Details:

Place of Origin: Qidong, Jiangsu
Brand Name: PERWIN
Certification: CE, ISO, GMP, UL, TUV, SGS
Model Number: PW-PP3-15000

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
Get Best Price Contact Now

Detail Information

Preparation Tank: 30L, 60L And 100L Agar Sterilization Reactors Per Line (specific Requirements Are As Follows.) Agar Sterilizers Will Be Used To Prepare A Variety Of Media, With Or Without Blood And/or Supplements. Therefore, Jars Should Be Sterilized For Agar At 121°C Fo Product Name: Petri Dish Filling System
Power Source: Electric Filling Accuracy: ±1~3%
Cooling Time: 7min, Customer Can Set Accordingly. Filling Speed: 4000~5000dishes/hour
FFU: For Main Machine And For Sheep Blood Area. Format Changing Time: Within 30mins

Product Description

Product Description:

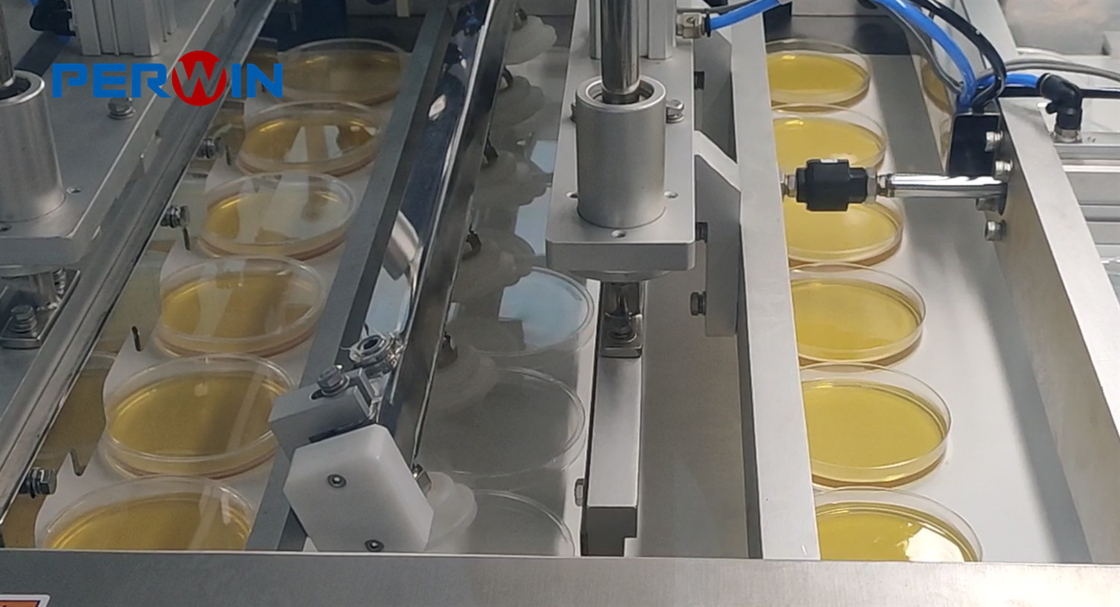

The Petri Dish Filling Machine is a high-performance and reliable apparatus for filling petri dishes with agar. It is equipped with a PLC bus control system and a human-machine interface (HMI) for easy monitoring and operation. The machine also has a safety protection system with SS304 frame and tempered glass. It can automatically pack the inner bags, and has preparation tanks with capacities of 30L, 60L, and 100L for agar sterilization.

The Petri Dish Filling Machine is designed to meet the specific requirements for agar sterilization: jars should be sterilized for agar at 121°C for at least 15 minutes, and then cooled to 38-45°C and held at that temperature for at least 8 hours. The thermometer should be of the highest accuracy, and the mixer should have multiple levels. The tank can be used for a variety of agars, not just a few.

The Petri Dish Filling Machine is a great choice for those who need to fill petri dishes with agar quickly and accurately. It comes with a one-year warranty, so you can rest assured that your investment is protected.



Features:

  • Product Name: Petri Dish Filler, Petri Dish Filling Machine, Petri Dish Filling System
  • Voltage: 400V, Three Phase, 50~60hz
  • Filling Speed: 4000~5000dishes/hour
  • Main machine length: 15000mm
  • Changeover parts: 90mm Single Area Dish, 90mm Bi-plate Dish
  • Bi-plates filling: Servo Mechanism Orientation Unit


Technical Parameters:

Product Property Specification
Cooling time 7min (Customer Can Set Accordingly)
Compressed air 0.4~0.8Mpa
Dish stacking Integrated Servo Sinking And Stacking Unit
Inkjet printing The Inkjet Printing Holes At The Bottom Of The Petri Dish Are Reserved In The Conveyor Belt
Filling method 6 Sets Of Peristaltic Pumps, Each Driven By A Separate Stepping System, Assembled By Perwin. Operate On The Host's Touch Screen, The Filling Specification Can Be Selected On The Interface, And The Filling Accuracy Of Each Pump Can Be Adjusted Independently.
Bi-plates filling Servo Mechanism Orientation Unit.
Dish shaking mechanism Especially After Adding Sheep Blood, The Junction Of The Wall Of The Dish Is Clear And Tidy, And The Surface Of The Contents Is Smooth And Clean. Increase The Adhesion Between The Contents And The Wall Of The Vessel, To Ensure That It Does Not Fall Off During Transportation, Storage And Use, And The Quality Is Stable.
Noise Level ≤75dB
Warranty 1 Year
Format changing time Within 30mins


Applications:

The PERWIN PW-PP3-15000 Petri Dish Fill Machine is an advanced Petri Dish Filling Apparatus with automation system developed to meet the needs of laboratories that require accuracy and speed in their Petri dish filling operations. This machine is designed and manufactured in Qidong, Jiangsu and is certified by CE, ISO, GMP, UL, TUV and SGS. It is equipped with a Servo Mechanism Orientation Unit, and a power source of electric with a voltage of 400V, three phase, 50~60hz. It requires a compressed air of 0.4~0.8Mpa and also has a SIEMENS PLC from Germany. The minimum order quantity is 1 and the price is negotiable. It can be packed in export standard wooden cases for delivery and it has a supply ability of 10pcs/month.



Customization:

Are you looking for a reliable and efficient Petri dish filling automation solution? Look no further than PERWIN's PW-PP3-15000 Petri dish filler. This machine is designed for filling Petri dishes quickly and accurately. With a production speed of 5000 pieces/hour and a filling accuracy of ±1~3%, it is perfect for your needs. It also features a dish shaking mechanism, especially after adding sheep blood, the junction of the wall of the dish is clear and tidy, and the surface of the contents is smooth and clean. This increases the adhesion between the contents and the wall of the vessel, to ensure that it does not fall off during transportation, storage and use, and the quality is stable. It also has FFU: For main machine and for sheep blood area. A lighting system in the cooling area of the whole line is also available.

PERWIN's PW-PP3-15000 Petri dish filler is CE, ISO, GMP, UL, TUV, and SGS certified. It has a minimum order quantity of 1 and the price is negotiable. It is packaged in export standard wooden cases and can be delivered within 60 working days. The payment term is TT and the supply ability is 10pcs/month.

If you need a reliable and efficient Petri dish filling automation solution, look no further than PERWIN's PW-PP3-15000 Petri dish filler. Contact us now for more information!



Support and Services:

We provide technical support and services for the Petri Dish Filling Machine. Our experienced and knowledgeable technicians can help you with any questions or issues related to the machine. We provide a variety of services, including installation, troubleshooting, maintenance, and repairs. We also offer training services to help you get the most out of your machine. If you have any questions or concerns, please don’t hesitate to contact us.



FAQ:

  • Q: What is the Brand Name of the Petri Dish Filling Machine?
    A: The Brand Name is PERWIN.
  • Q: What is the Model Number?
    A: The Model Number is PW-PP3-15000.
  • Q: Where is the Petri Dish Filling Machine made?
    A: The Petri Dish Filling Machine is made in Qidong, Jiangsu.
  • Q: What certifications does the Petri Dish Filling Machine have?
    A: The Petri Dish Filling Machine has CE, ISO, GMP, UL, TUV, and SGS certifications.
  • Q: What is the minimum order quantity for the Petri Dish Filling Machine?
    A: The minimum order quantity is 1.
