TUV Aseptic Filling And Cappign Machine GMP Standard Serum And Medium
Product Details:
| Place of Origin: | Jiangsu China |
| Brand Name: | PERWIN |
| Certification: | CE SGS ISO9001 TUV |
| Model Number: | PW-GX515 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 60000~80000 |
| Packaging Details: | Export wooden cases |
| Delivery Time: | 60~90 working days |
| Payment Terms: | T/T |
| Supply Ability: | 5sets/month |
|
Detail Information |
|||
| Product Name: | GMP Standard Serum And Medium Aseptic Filling And Cappign Machine | Filling Range: | 30ml, 60ml, 125ml, 500ml, 1000ml |
|---|---|---|---|
| Filling Method: | Peristaltic Pump Or Ceramic Pump | Filling Accuracy: | ±1~2% |
| Capacity: | 20~30 Bottles Per Minute (500ML) | ||
| High Light: | serum filling line,vial liquid filling machine |
||
Product Description
TUV Aseptic Filling And Cappign Machine GMP Standard Serum And Medium
1. Brief introduction

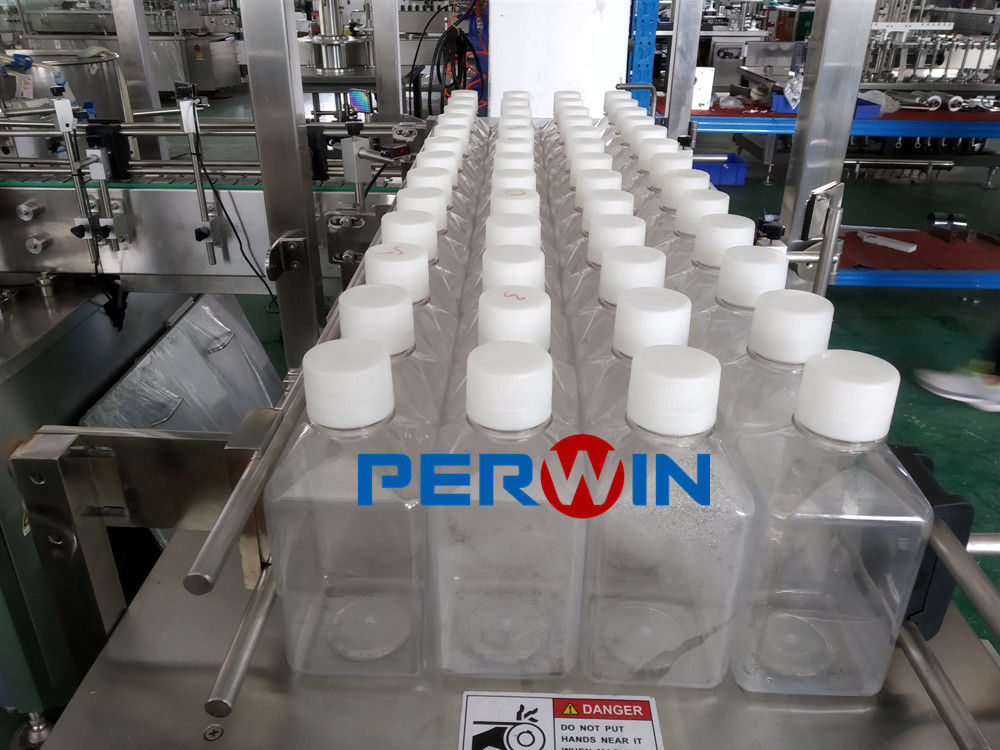

Automatic Aseptic Serum Filling Machine with HEPA Filter was designed by our own company with automatic bottle feed in platform, servo drive bottle separating and positioning, bottle transported to aseptic environment, unscrew the bottle cap, filling and capping, shrink sleeve labeling, shrinking, labeling and final packing into box(optional). This production line stable running speed is around 20 bottles/min.
It is specially designed for 30ml, 60ml, 125ml, 500ml and 1000ml square bottles.
2. Parameters
| Item | Model and Specification |
| Model | PW-GX515 |
| Filling Range |
30ml, 60ml, 125ml, 500ml, 1000ml (Use 500ml pump to fill twice)Up to client’s requirement
|
| Filling Method | Five sets of double channels peristaltic filling.Each set is driven by servo separately. |
| Filling Accuracy | ±1~2% |
| Capacity | 15~20 bottles per minute (500ML) |
| Power Supply | 110V 60Hz(can be customized) |
| Power |
3KW 2.0Kw
|
| Compressed Air | 0.4~0.7Mpa 25~35L/min |
3. Main configuration:
| Items | Brand | From |
| PLC | Siemens | Germany |
| Frequency converter | Schneider | France |
| Color touchscreen | FUJI | Japan |
| Photoelectric sensor | OMRON | Japan |
| Pneumatic components |
AirTAC,CHELIC For (SMC or Festo, please check optional) |
Taiwan |
